| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-156 |
| Minimum Order Quantity: | 1000pcs |
| Price: | usd 24/pcs |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | 2.1 Channels Class D Power Amplifier | Working Method: | Class D |
|---|---|---|---|
| Quiescent Current: | 65mA | Output Power: | 300W (subwoofer) + 2 * 150W / 4 Ohms 10% THD (left And Right Channels) |
| Signal To Noise Ratio: | 100dB (A-Weighted) | PCB Size: | 150*95MM |
| High Light: | 65mA Audio Amplifier Board,300W Audio Amplifier Board,TAS5630 Pcb Board Assembly |
||

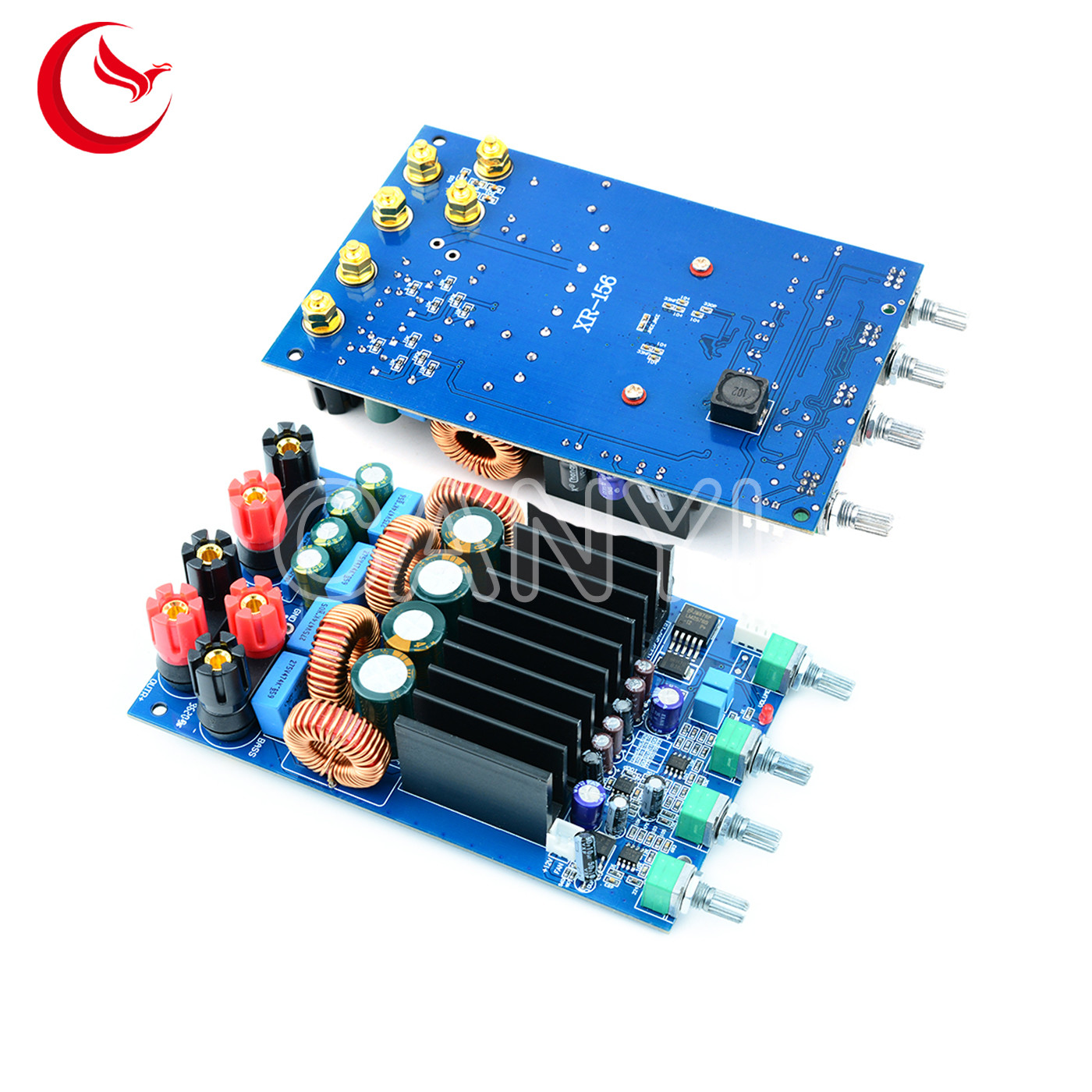

TAS5630 Audio Amplifier Board 2.1 channels Class D power Amplifier Two 150W 300W Digtial electronic board
Product performance description:

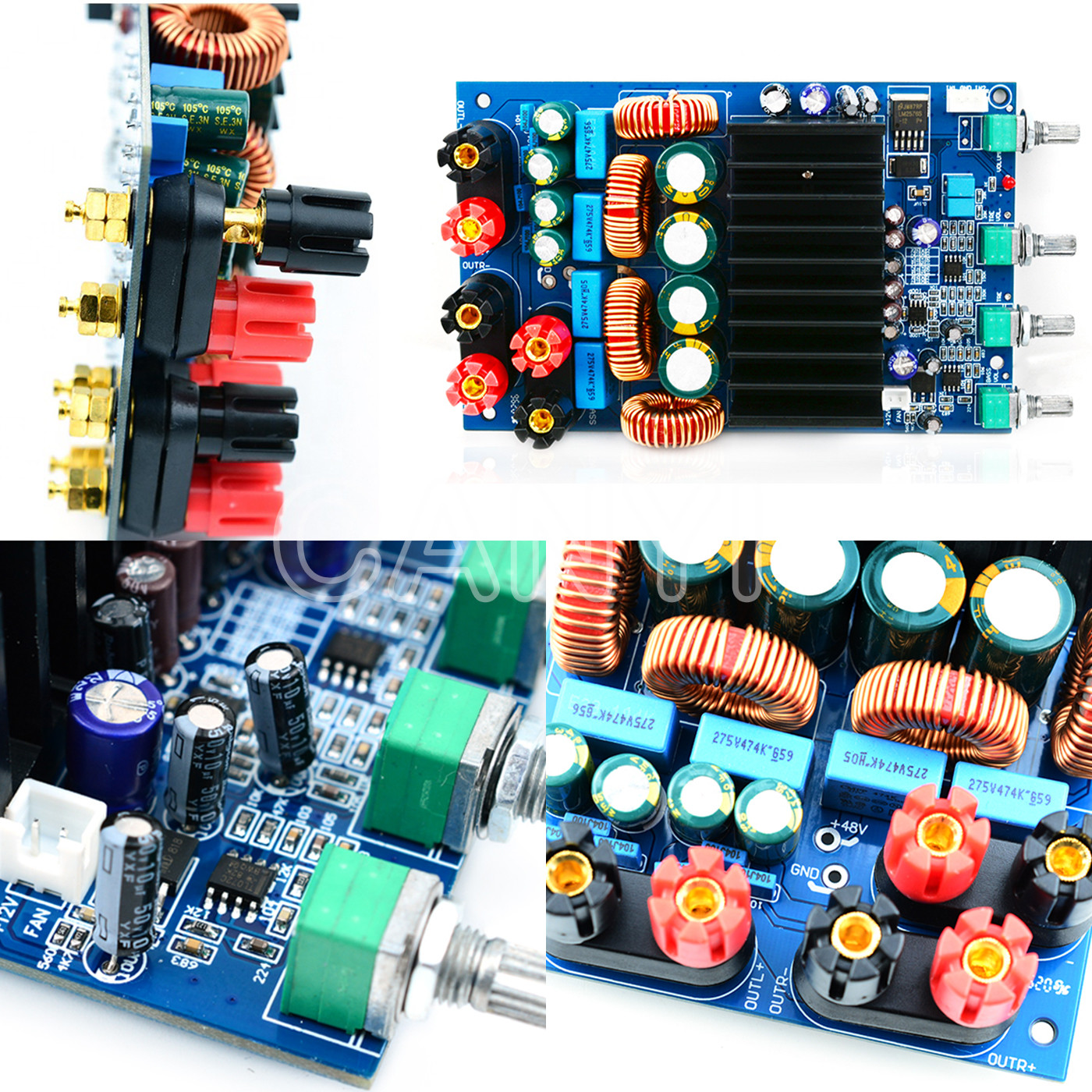

1. Good quality TAS5630, OPA1632DR, TL072
2. The main filter electrolytic capacitor using nichicon brand, capacity 470UF / 100V * 4, to ensure a steady stream of power support.
3. Resistor selection of metal ring resistors, the main loop using precision ± 1% of the ring metal film resistors to ensure a good signal to noise ratio machine.
4. The use of full-screen large-current inductors to ensure sound crisp and powerful.
5. PCB using 1.6mm thick double-sided plate, 2.0 ounces of copper thickness, spray the whole process of tin, to ensure the size of the current good pass performance. First-class PCB quality.
| Product Name | TAS5630 Power Amplifier Audio Board 150WX2+300W 2.1 Class D OPA1632DR TL072 Digital Sound Amplifier Speaker Home Theater |
| Working method | Class D |
| Quiescent current | 65mA |
| Output power | 300W (subwoofer) + 2 * 150W / 4 ohms 10% THD (left and right channels) |
| Frequency response | 20Hz-20KHz |
| Signal to noise ratio | 100dB (A-Weighted) |

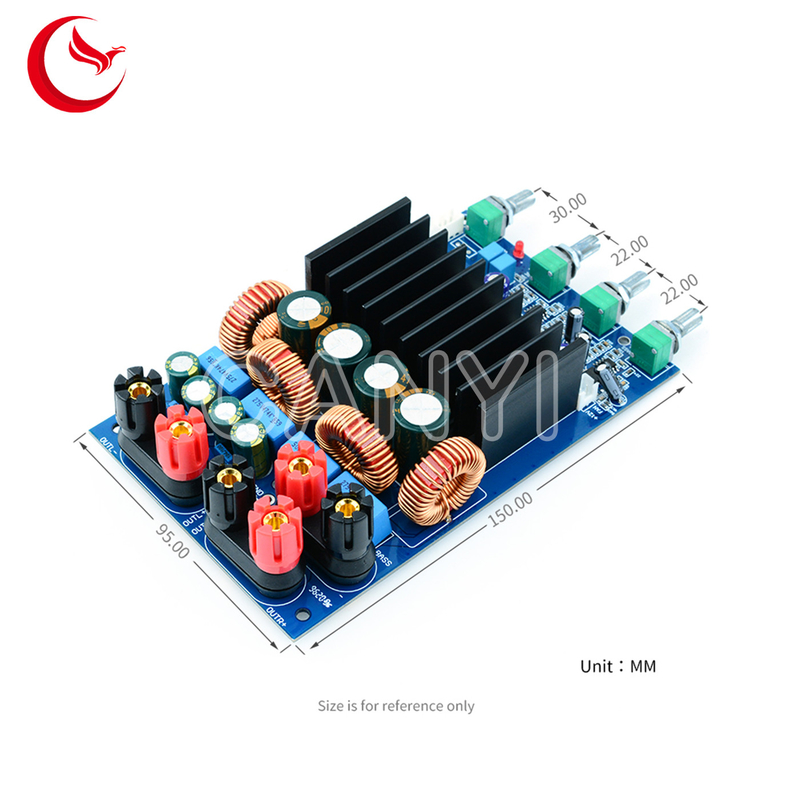

| PCB size | 150*95MM |

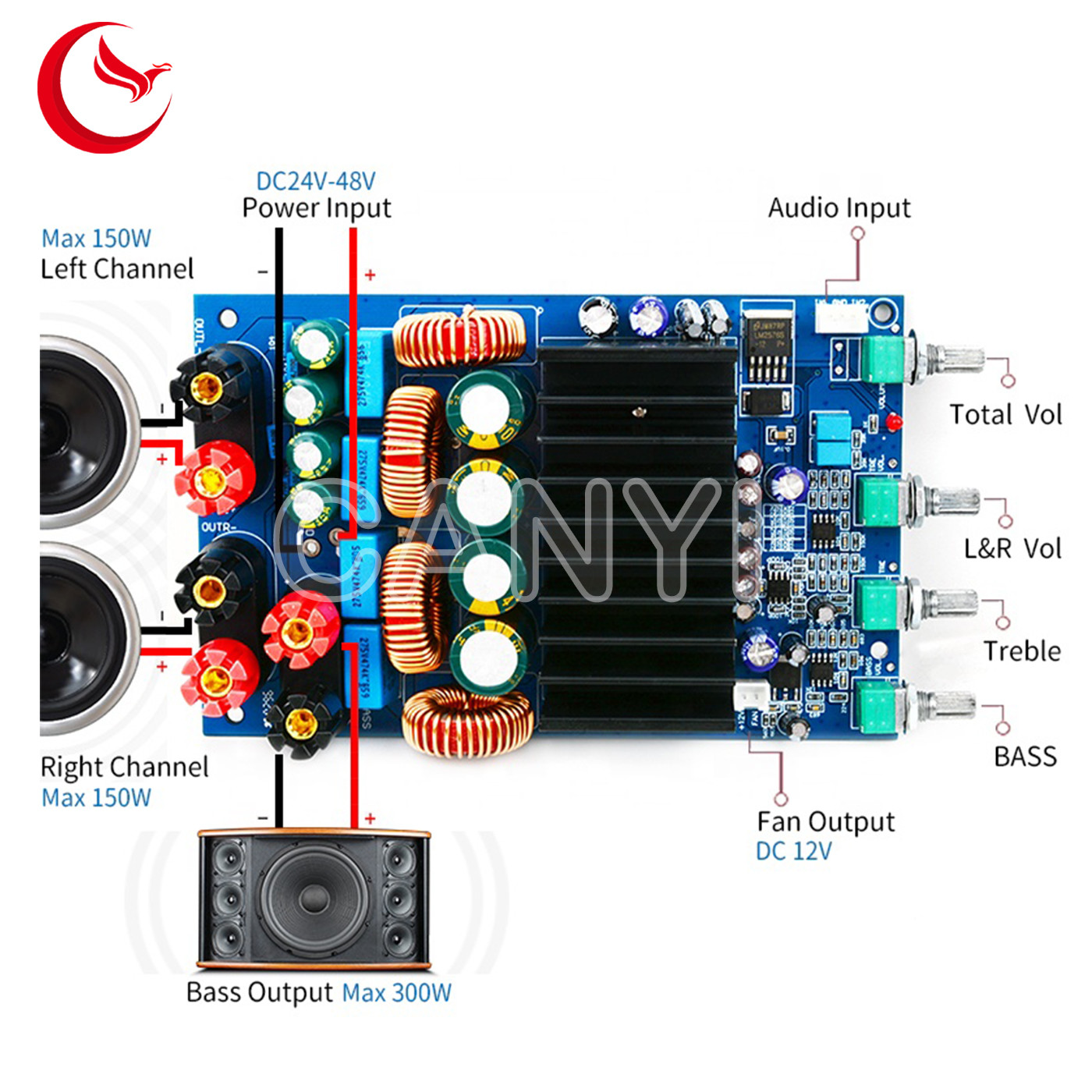

| Potentiometer function | from left to right 1. Subwoofer volume 2. Left and right channel treble 3. Left and right channel volume 4. Total volume |
TAS5630 2.1
Amplifier Output power:300W*1 150W*2
Working voltage:DC24-48V
Note:
The power input interface needs to be fixed by welding Recommended working voltage is 48V 10A
Install a fan to assist heat dissipation(Tips:Different batches, different capacitor colors.)
