| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-314/XY-BT-MINI |
| Minimum Order Quantity: | 500pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | Bluetooth Decoder Board 5.0 | Power Supply: | 3.7-5V |
|---|---|---|---|
| SNR: | 90dB | THD+N: | -70dB |
| Crosstalk: | -86dB | DNR: | 91dB |
| Support Profile: | A2DP/AVCTP/AVDTP/AVRCP/HFP | LOS: | >15m |
| High Light: | 5m LOS Audio Receiver Board,A2DP Audio Receiver Board,Mp3 Lossless Decoder Board |
||

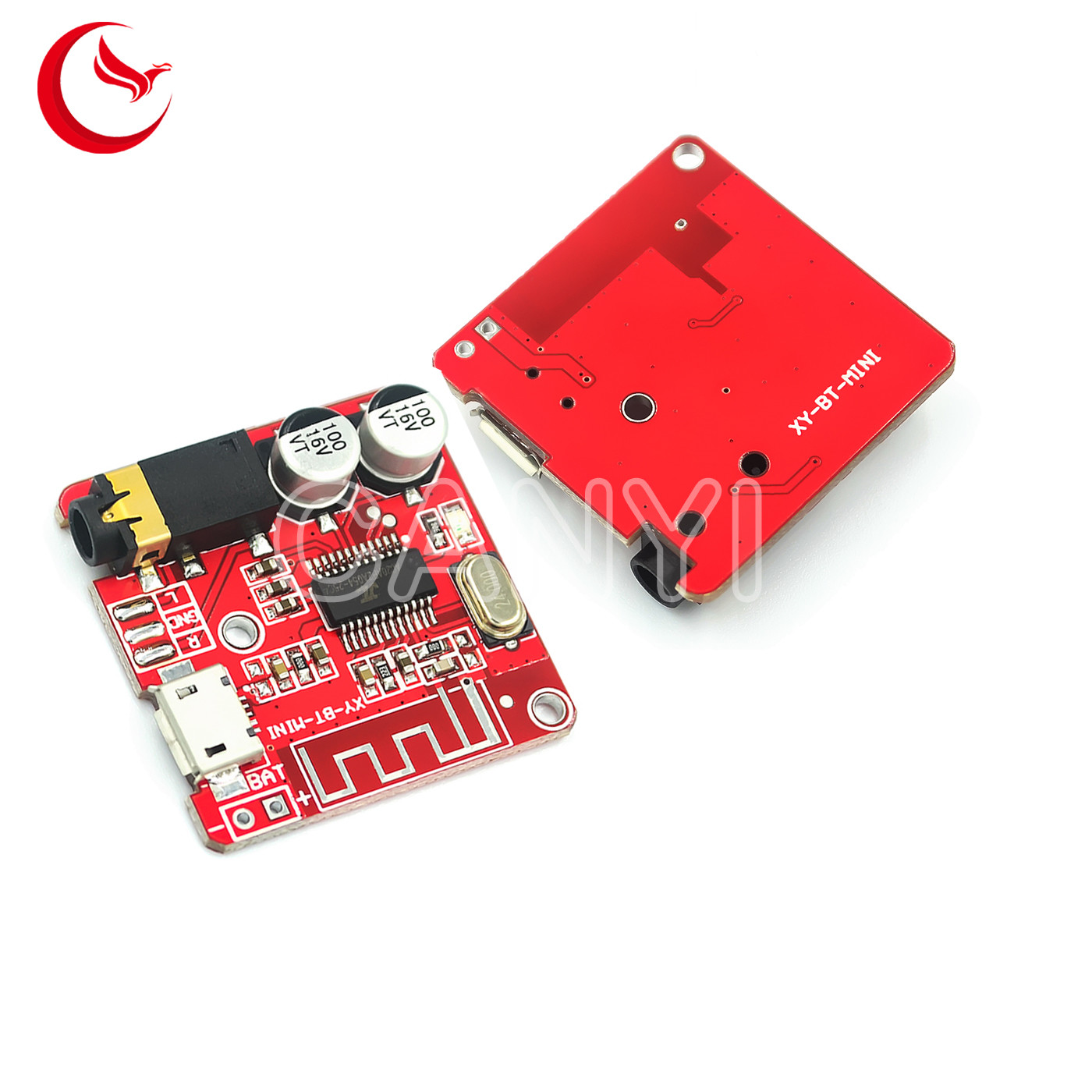

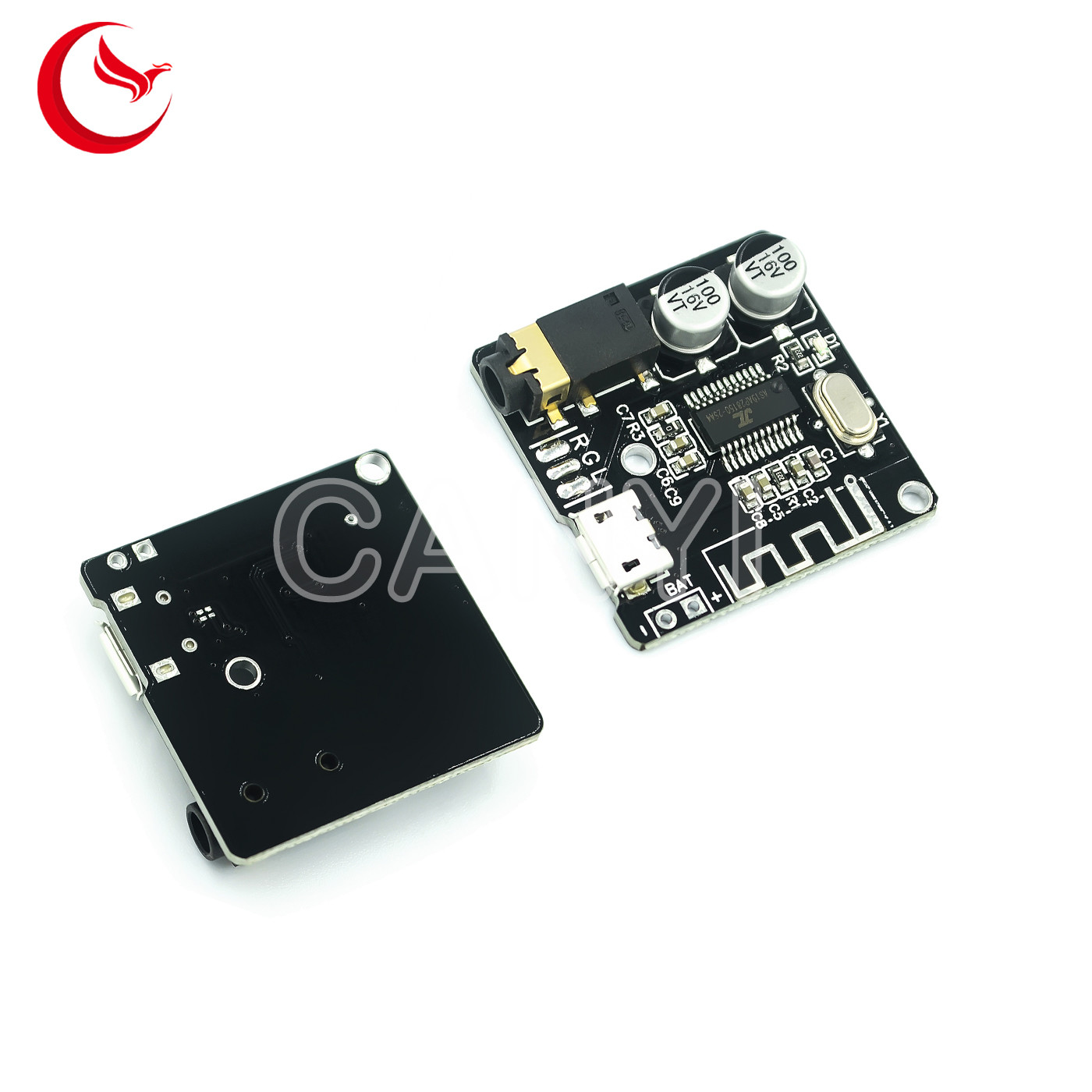

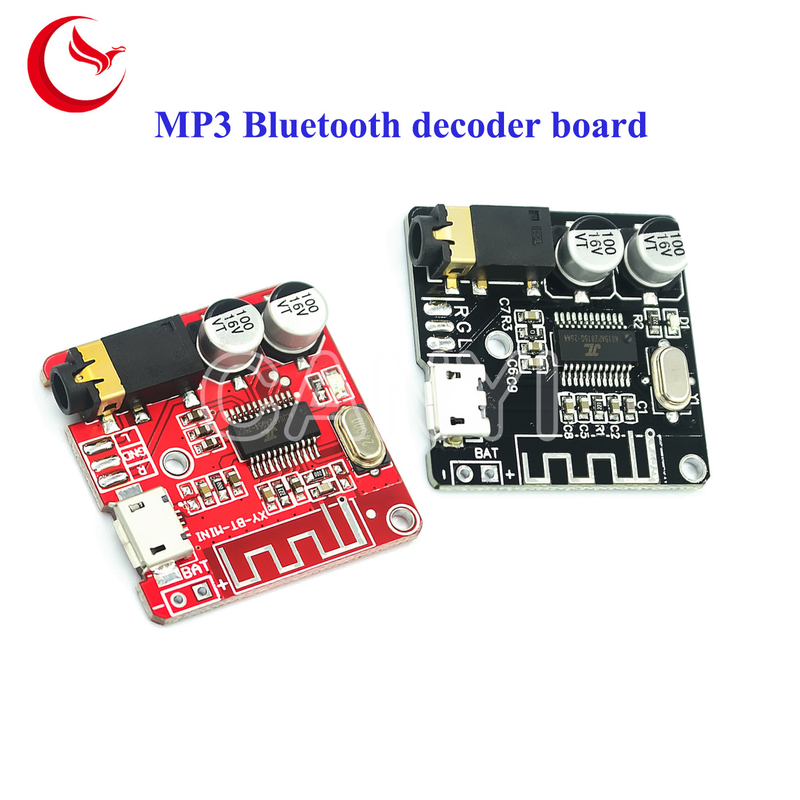

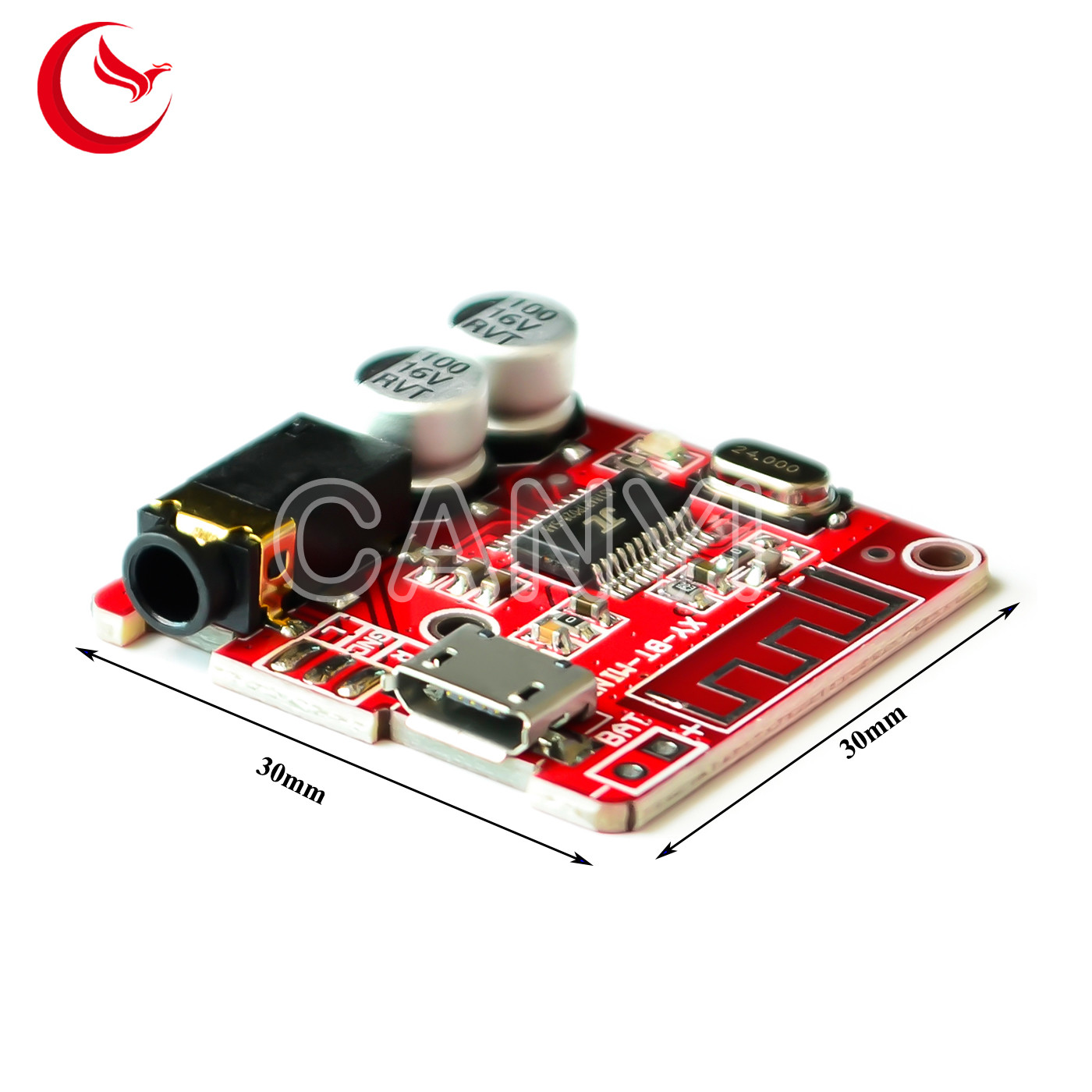

Bluetooth Audio Receiver board Bluetooth 4.0 5.0 mp3 lossless decoder board Wireless Stereo Music Module 3.7-5V
Description:
The new product has been upgraded to version 5.0! Backwards compatible with 4.2 4.1 4.0
Support bluetooth 4.1 Mode, Support automatically back to even, Support to decode WAV/APE/FLAC/MP3 files losslessly, Support to output stereo.
| Power Supply | 3.7-5V |
|
SNR
|
90dB |
|
THD+N
|
-70dB |
|
Crosstalk
|
-86dB |
|
DNR
|
91dB |
|
Support Profile
|
A2DP/AVCTP/AVDTP/AVRCP/HFP |
|
LOS >15m
|

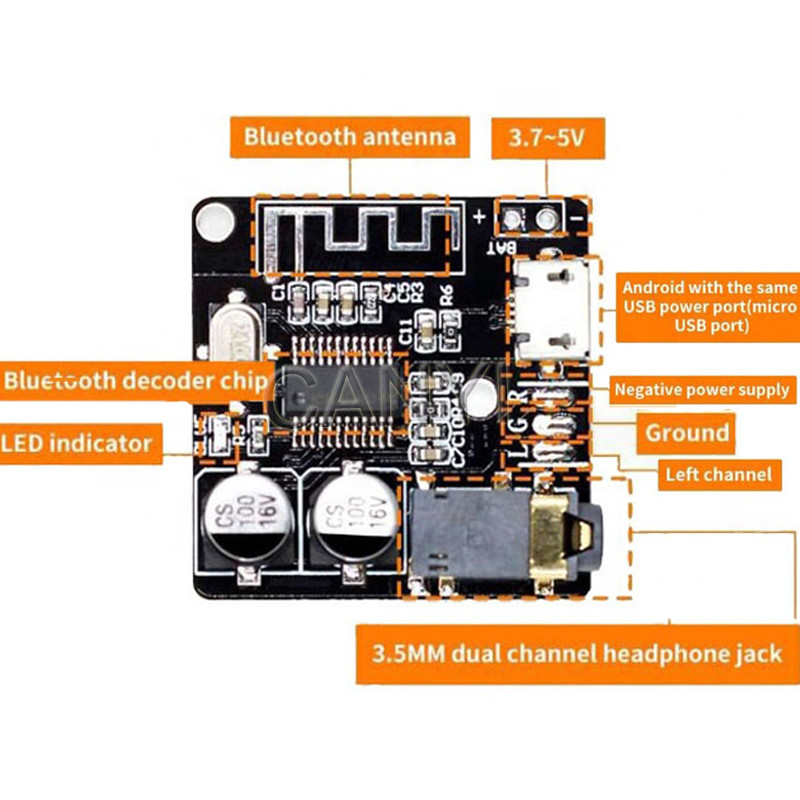

Interface details:
USB powered Universal Micro USB 5V power supply
3.7-5V Supply Pad External 3.7-5V lithium battery power conversion
LED indicator Bluetooth mode long blue light
3.5mm stereo audio interface Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices
After the power is turned on, the blue indicator lights up and enters the Bluetooth mode; the English The bluetooth device is ready to pair is displayed, indicating that the Bluetooth mode is entered and waiting for pairing; the XY_BT searched by the mobile phone Bluetooth is the device name of the decoding board. , Click on the connection, the decoder board prompts "The bluetooth device is connected successfully", indicating that the decoder board and the mobile phone are connected successfully, you can play music. As shown below:
OEM & ODM: OEM and ODM order are welcome! We provide customized products and packaging.
We can print your Logo in our products by silk screen printing or laser printing
according to your artwork design to meet your special requirements. You can send us the
artwork by E-mail. We have a wealth of experience in Logo printing and customized packing.
CY-314
XY-BT-MINI
