| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-302 |
| Minimum Order Quantity: | 3000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Power Supply: | 3-5V | Board Size: | 19mm X 14mm (L*W) |
|---|---|---|---|
| OEM: | Can Customizable Products | Surface Finishing: | HASL |
| Type: | Electronic Board | Base Material: | FR-4 |
| High Light: | BH1750FVI Printed Circuit Board Assembly,CY-302 Printed Circuit Board Assembly,Light Intensity Illumination Module |
||

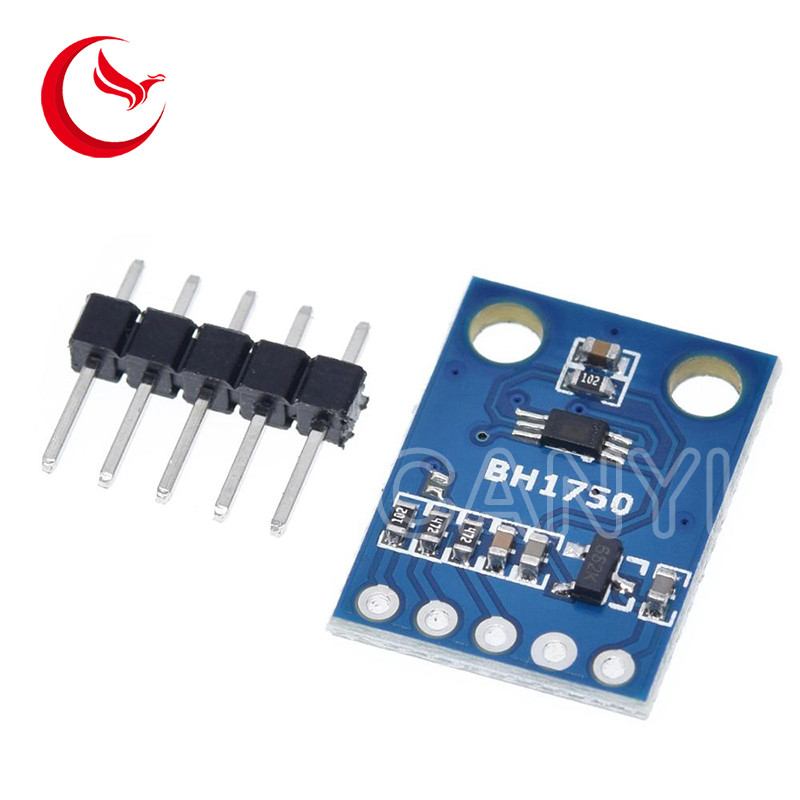

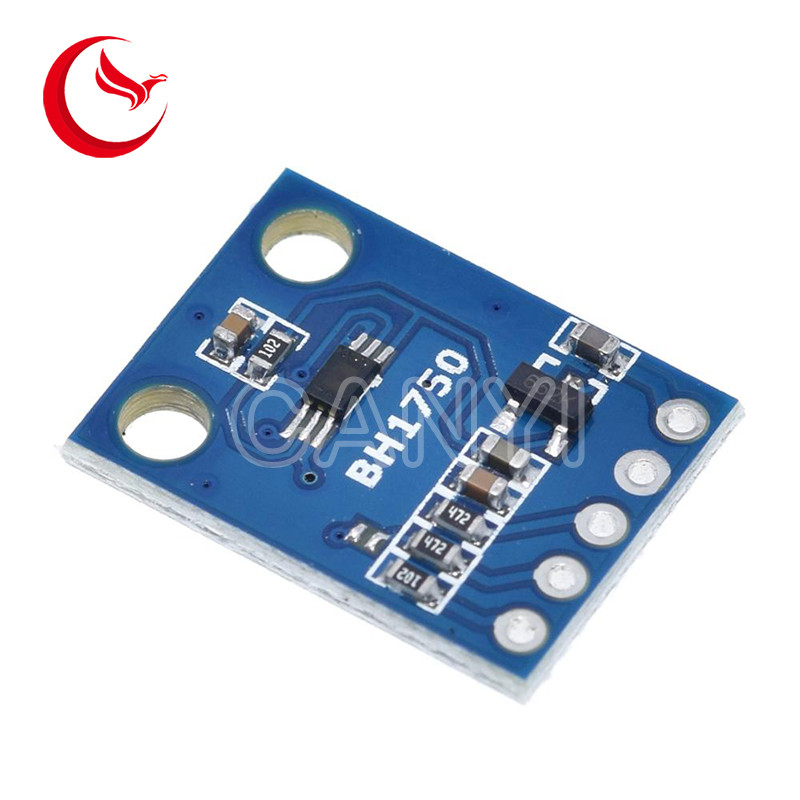

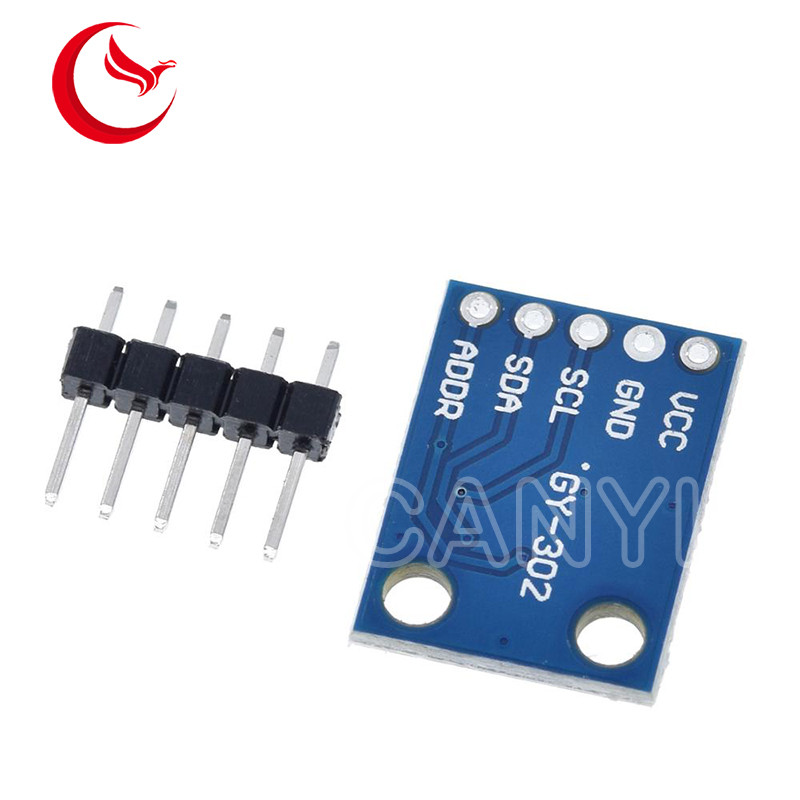

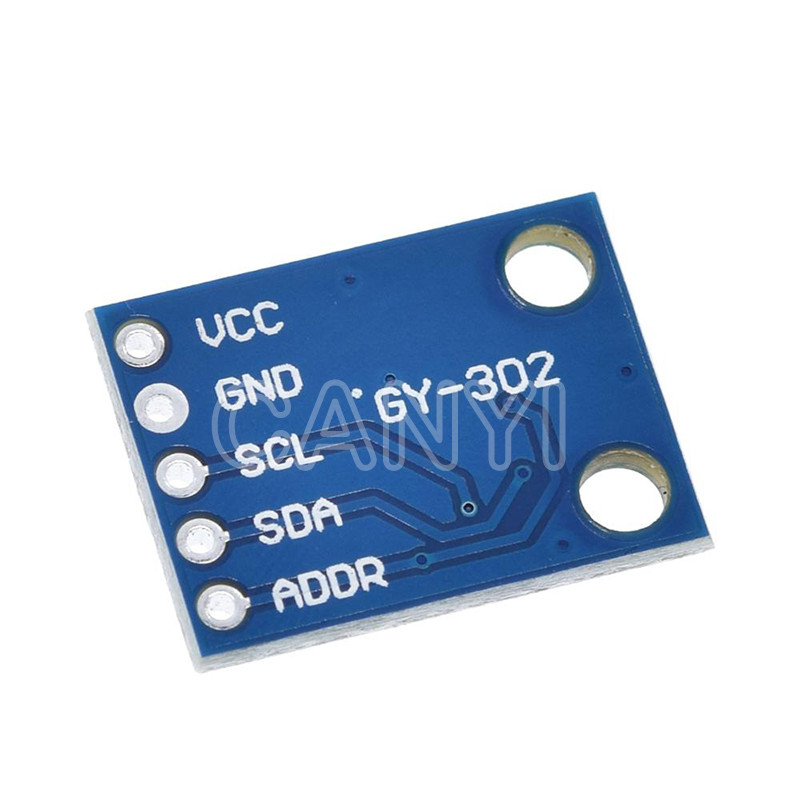

CY-302 BH1750FVI light intensity illumination module for arduino 3V-5V pcb printed circuit board assembly
Description:
1. ROHM original BH1750FVI chip
2. Power supply: 3-5v
3. Light intensity range: 0-65535 lx
4. Sensor built-in 16bitAD converter
5. Direct digital output, omitting complex calculations, omit calibration
6. Does not distinguish between ambient light, close to the visual sensitivity of the spectral characteristics
7. High-precision measurement of 1 lux can be performed for a wide range of brightness
8. Standard NXP IIC communication protocol
9. The module contains communication level conversion, and 5v microcontroller io direct connection
Note:
1. The module pin is not welded up, with pin, you need the user's own welding.
2. The working voltage of this module is 3-5v, do not use the power outside the range.
3. OUR chip to provide information, program code, and related schematics and circuit diagrams, because the information provided has been very detailed, so the other expansion and use, the user needs their own research.
