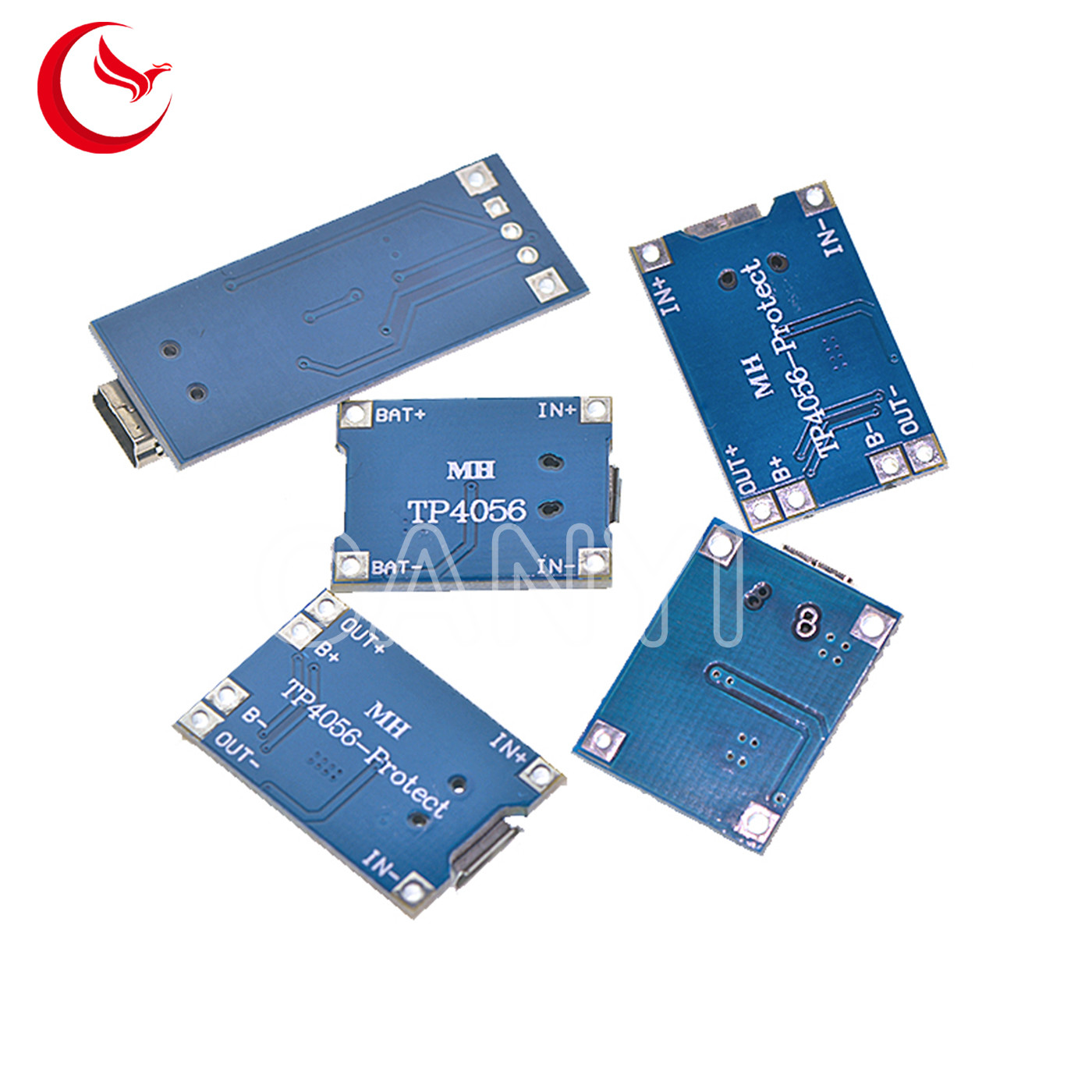

| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-107 |
| Minimum Order Quantity: | 500pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | TP4056 5V 1A Lithium Battery Board | Input Voltage: | 5V |
|---|---|---|---|
| Charging Cut-off Voltage: | 4.2V | Overcurrent Protection: | 3A |

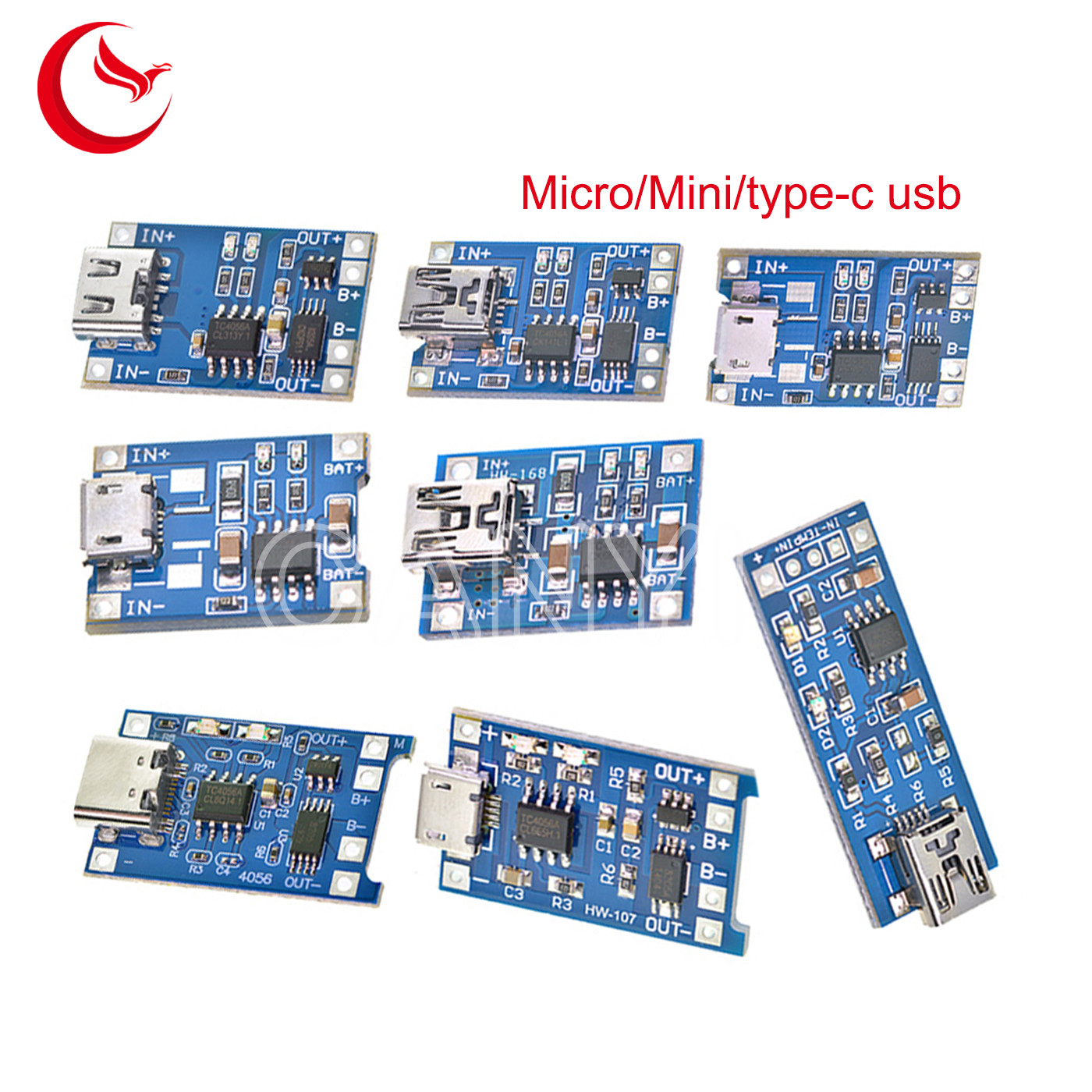

| Input Interface: | Micro/Mini/type-c Usb | Service: | OEM Services Provided |
| High Light: | 1A Smt Board Assembly,TP4056 Smt Board Assembly,18650 Lithium Battery Pcb Board |
||

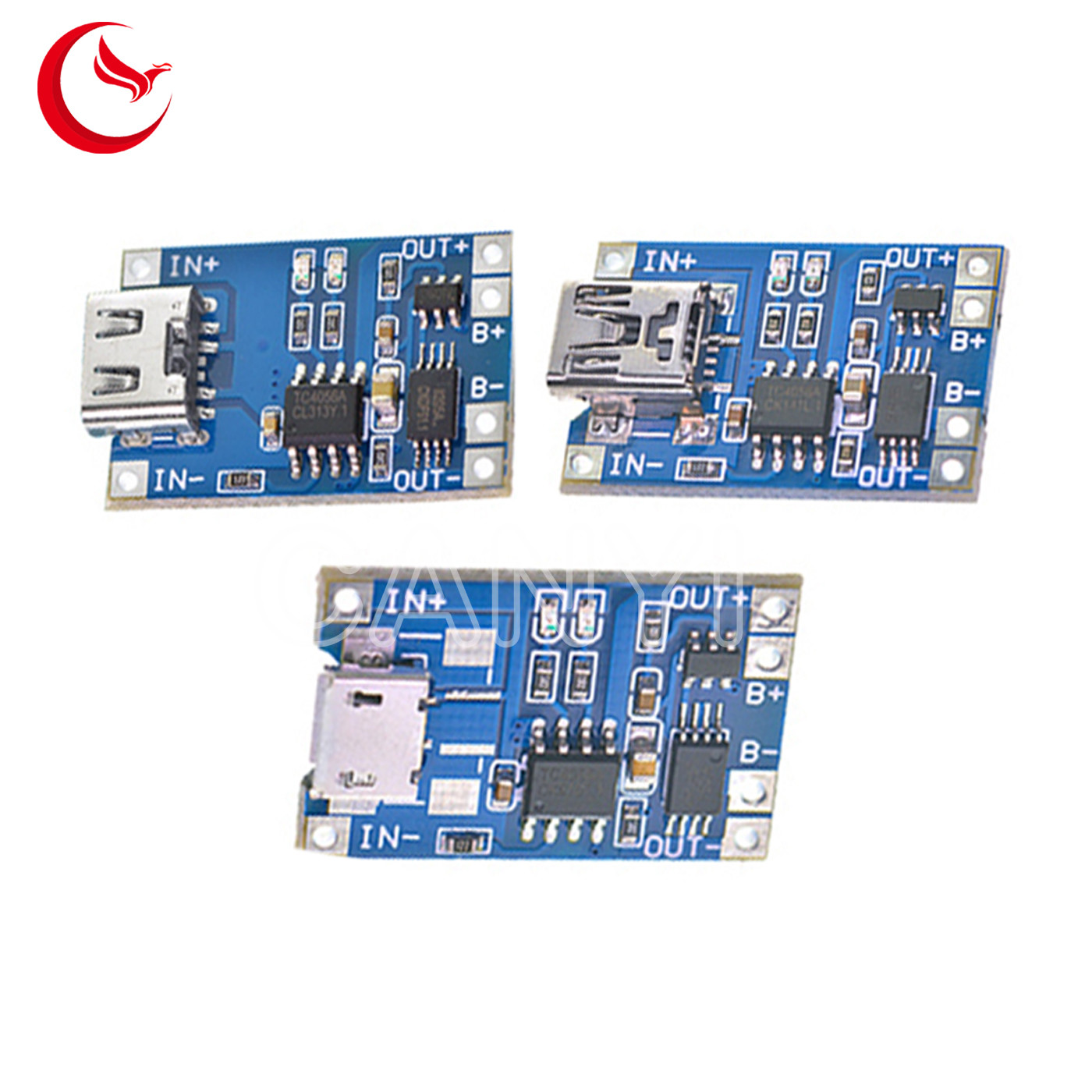

2S 10A 20A 7.4V 8.4V custom printed circuit board 18650 Polymer Lithium Battery Protection BMS Board
Feature:
1. This module uses the mature charging chip TP4056, the peripheral circuit is simple,good protection performance and high charging accuracy
2. This module is fully machined and automatically processed, manufactured by SMD parts with high reliability.Every one tested before shipped.
3. The current of this module can be adjusted by itself, as long as you change the fixed resistance in the circuit board.It is very convenient to change the output current between 100mA~1000mA
Instructions:
Charging source module board application:
widely used in mobile phone charging, alarm clock, driving recorder, work light, etc.
Current regulation
| RPPOG(k) | IBAT(mA) | RPPOG(k) | IBAT(mA) |
| 3 | 400 | 30 | 50 |
| 2 | 580 | 20 | 70 |
| 1.66 | 690 | 10 | 130 |
| 1.5 | 780 | 5 | 250 |
| 1.33 | 900 | 4 | 300 |
| 1.2 | 1000 |
Electrical Parameters:
Micro interface without protection
| Charging method | Linear charging |
| Charging current | 1A (Adjustable) |
| Charging accuracy | 1.5% |
| Input voltage | 4.5~5.5v |
| Fully charged voltage | 4.2v |
| Charging instruction | Red light charging, red and green light is always on and full |
| Input interface | Micro interface USB |
| Operating temperature |
-10~85℃
|
| Can it be reversed | Can’t reversed |
| Size | 23*18mm |
Mini interface without protection 1A interface without protection
Mini interface without protection 1A interface without protection
| Charging current | 1000mA |
| Input voltage | 5v |
| Charging voltage | 4.2v |
| Over discharge protection | 2.5v |
| Over current protection | 3.2a |
| Size |
26*18mm |
Advantage:The input terminal has a female socket, you can directly use the mobile phone charger as an input to charge the lithium battery, and still retain the input voltage wiring solder joints, which can be used for charging protection of lithium batteries such as polymer and polymer with a voltage of 3.6-3.7. Or parallel can also be used.
Mini Charging belt protection 2-in-1 module
| Charging current | 1000mA |
| Input voltage | 5v |
| Charging voltage | 4.2v |
| Over discharge protection | 3.2v |
| Over current protection | 3.2A |
| Size | 26*18mm |

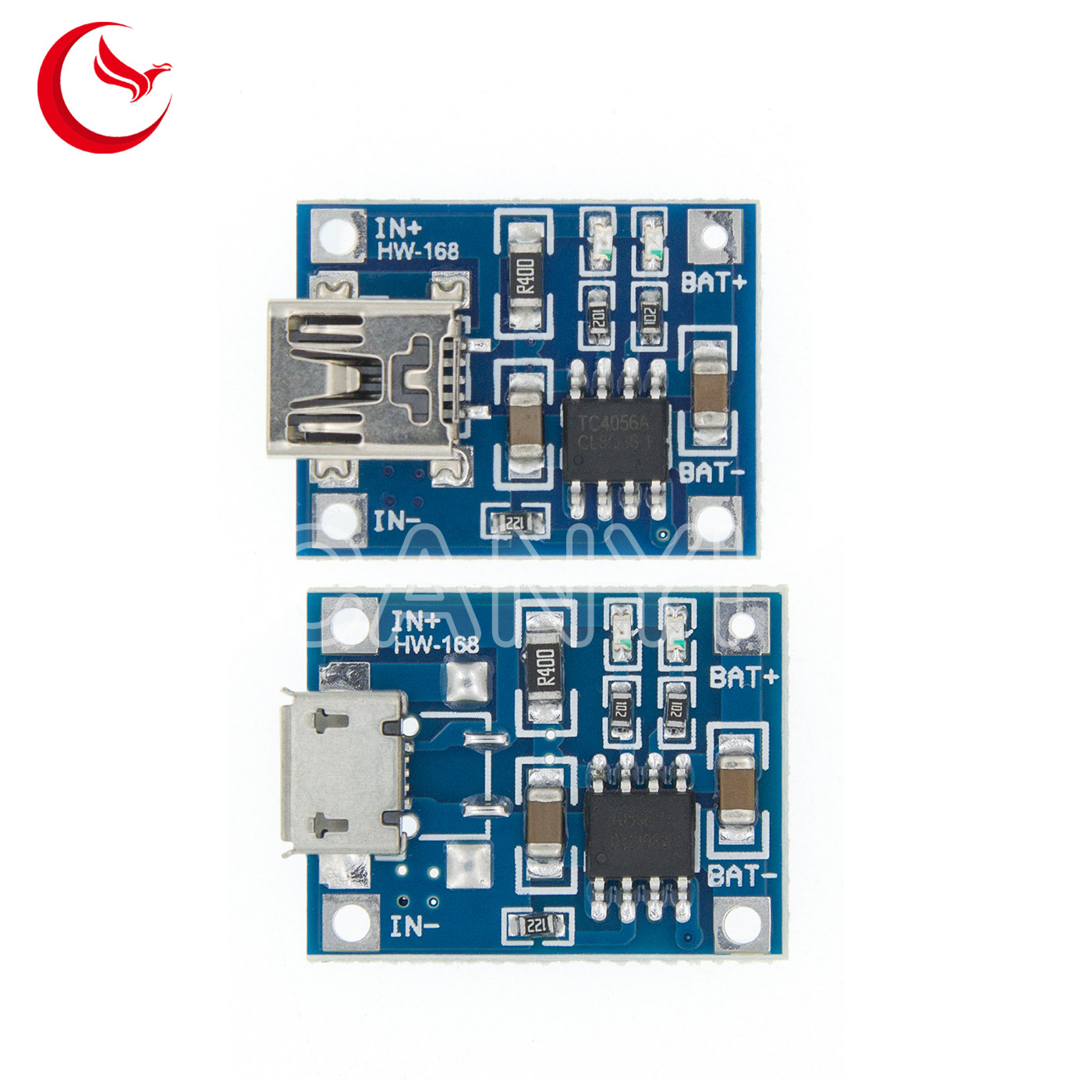

TP4056 1A Lithium battery charging power module MINI interface
| Charging current | 1000mA |
| Input voltage | 4-8v |
| Charging voltage | 4.2v |
| Over discharge protection | 2.5v |
| Over current protection | 3.2A |
| Size | 38*16mm |
Advantage:
1. Onboard TP4056 lithium battery charging management chip
2. Onboard MINI USB head, can be directly connected to the computer USB port
3. This charging board can also be powered by (IN+ and IN-) headers
4. Reserve the TEM pin header, which can be used for temperature detection of lithium battery
5. Rechargeable D1 indicator light is on, and D2 indicator light is on when charging is complete

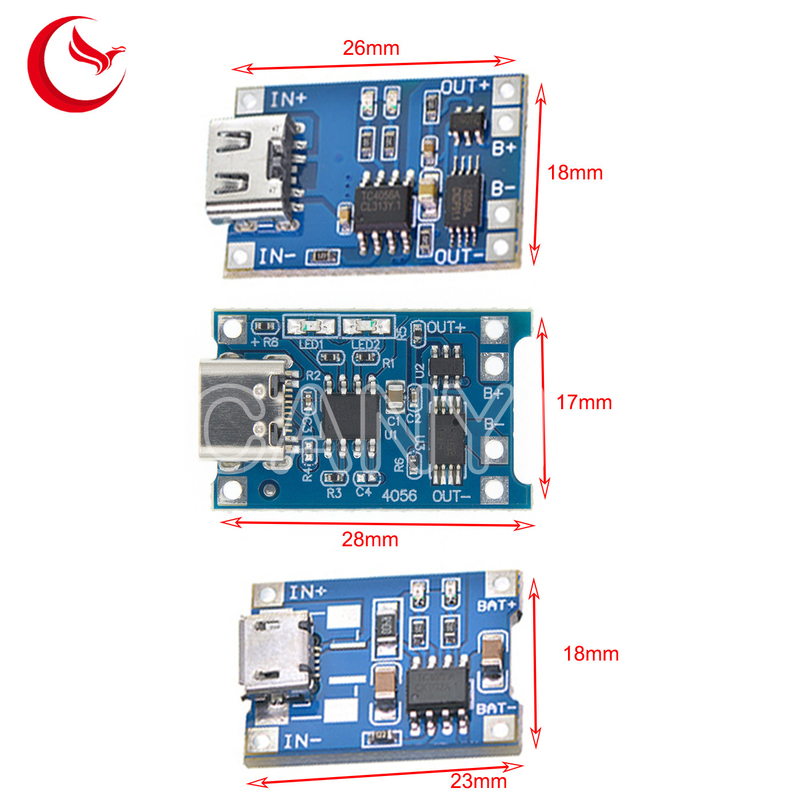

TP4056 1A Lithium battery charging power module Type C usb interface
| Input voltage | 5v |
| Charging cut-off voltage | 4.2v±1% |
| Limit charging current | 1000mA |
| Battery over-discharge protection voltage | 2.5v |
| Battery overcurrent protection voltage | 3A |
| size | 28*17mm |
Advantage:The input terminal has a female socket, you can directly use the mobile phone charger as an input to charge the lithium battery, and the input voltage wiring solder joints are still reserved, which is convenient for DIY
Note:
1. The ammeter for testing current can only be connected in series to the 5V input terminal of the charging board.
2. The charging current is preferably 0.37C of the battery capacity, which is 0.37 times the capacity. For example, a 1000mAH battery charging current of 400 is sufficient. If the charging speed is too large, the effect will be poor, and the battery voltage will drop more after charging!
3. The charging connection wire should not be too thin or too long. This connection resistance is large. If it is too thin, the battery voltage will drop more after charging.
4. Good connection with the battery. Otherwise, the battery voltage will drop more after charging.
5. If the input voltage of 5V is too high, such as 5.2 or even 5.5, the charging current will be less than 1000mA, which is normal. When the voltage is high, the chip heating will automatically reduce the charging current, so that the chip will not burn. It is normal for the chip to generate heat at about 60 degrees during operation, because the charging current is large.
6. Input reverse connection has no effect on the chip, but output (battery end) reverse connection will burn the chip, please pay attention.
Typical application circuit reference
