| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-2S-D01 |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | 2S 8A 7.4v 18650 BMS Pcb Board Assembly | Over Charge Pressure Range: | 3.65v + 0.05v |
|---|---|---|---|
| Maximum Working Current: | 8A | Resistance: | Less Than 300 M Ω |
| Charging Voltage: | 7.2v - 8.4v | Working Temperature: | - 40 - + 50 ℃ |

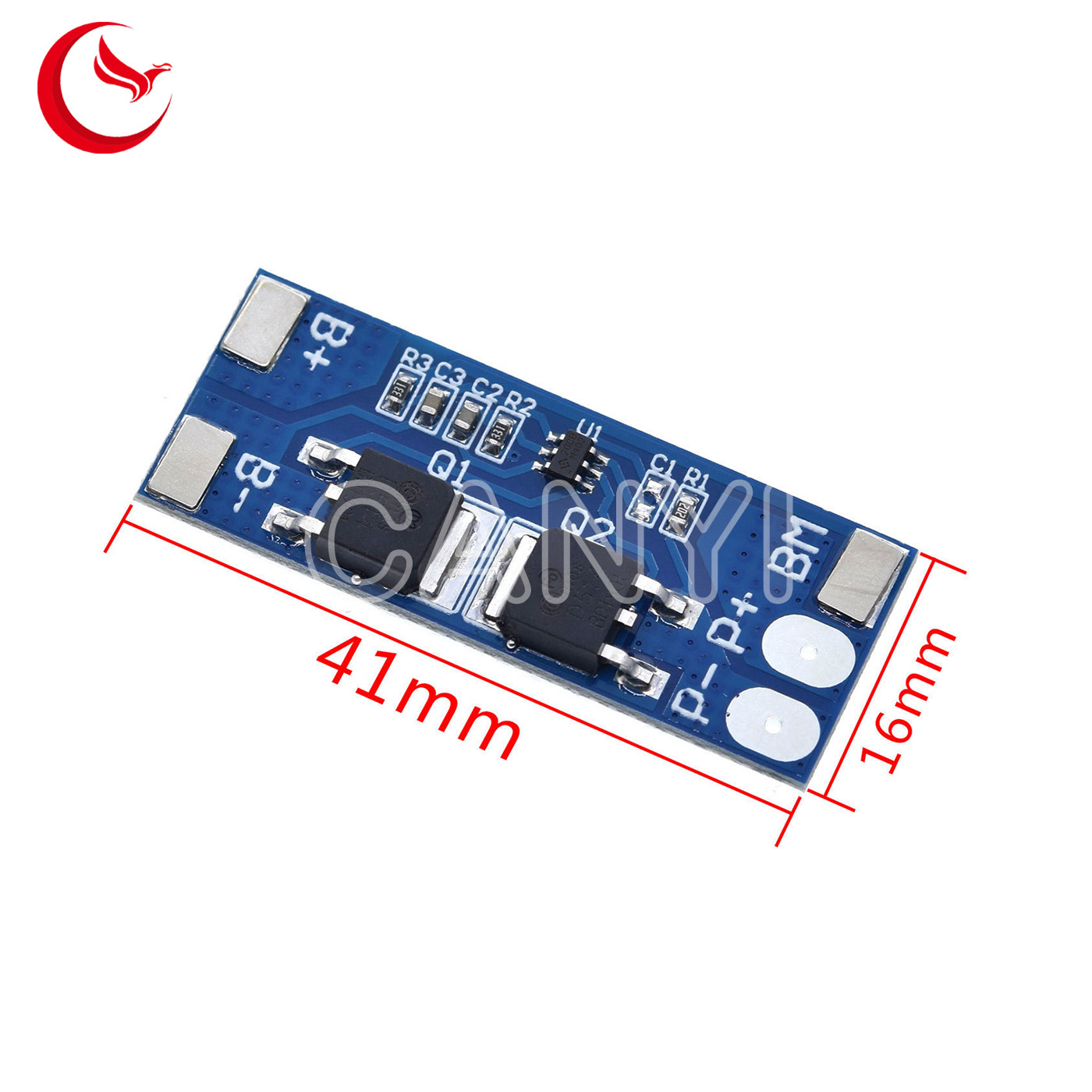

| Effective Life: | More Than 50,000 Hours | Size: | 41*16*3.5mm |
| High Light: | 18650 BMS Pcb Board Assembly,15A BMS Pcb Board Assembly,BMS PCM Pcb Board |
||

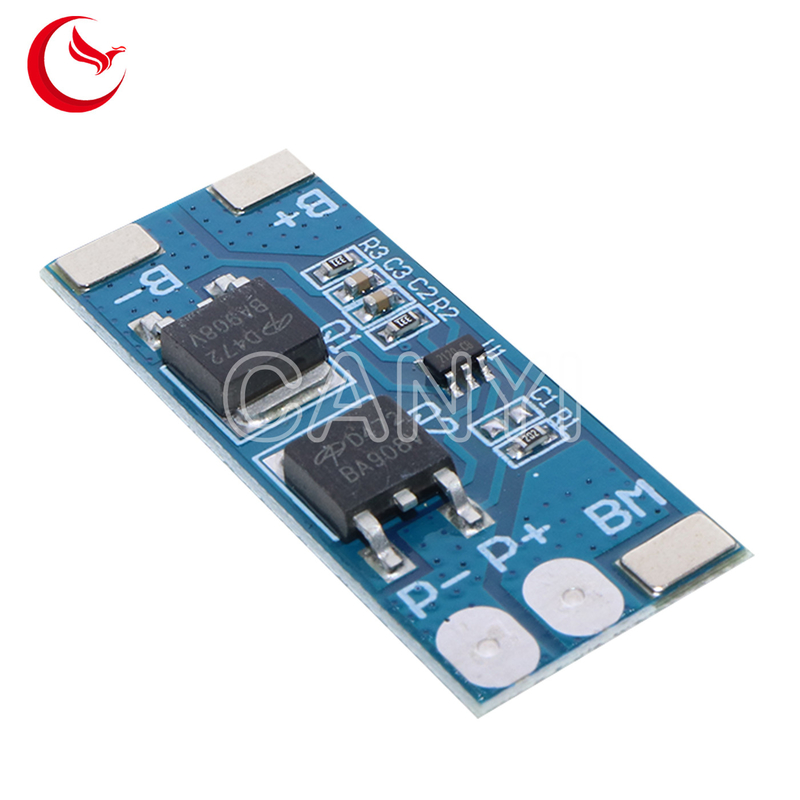

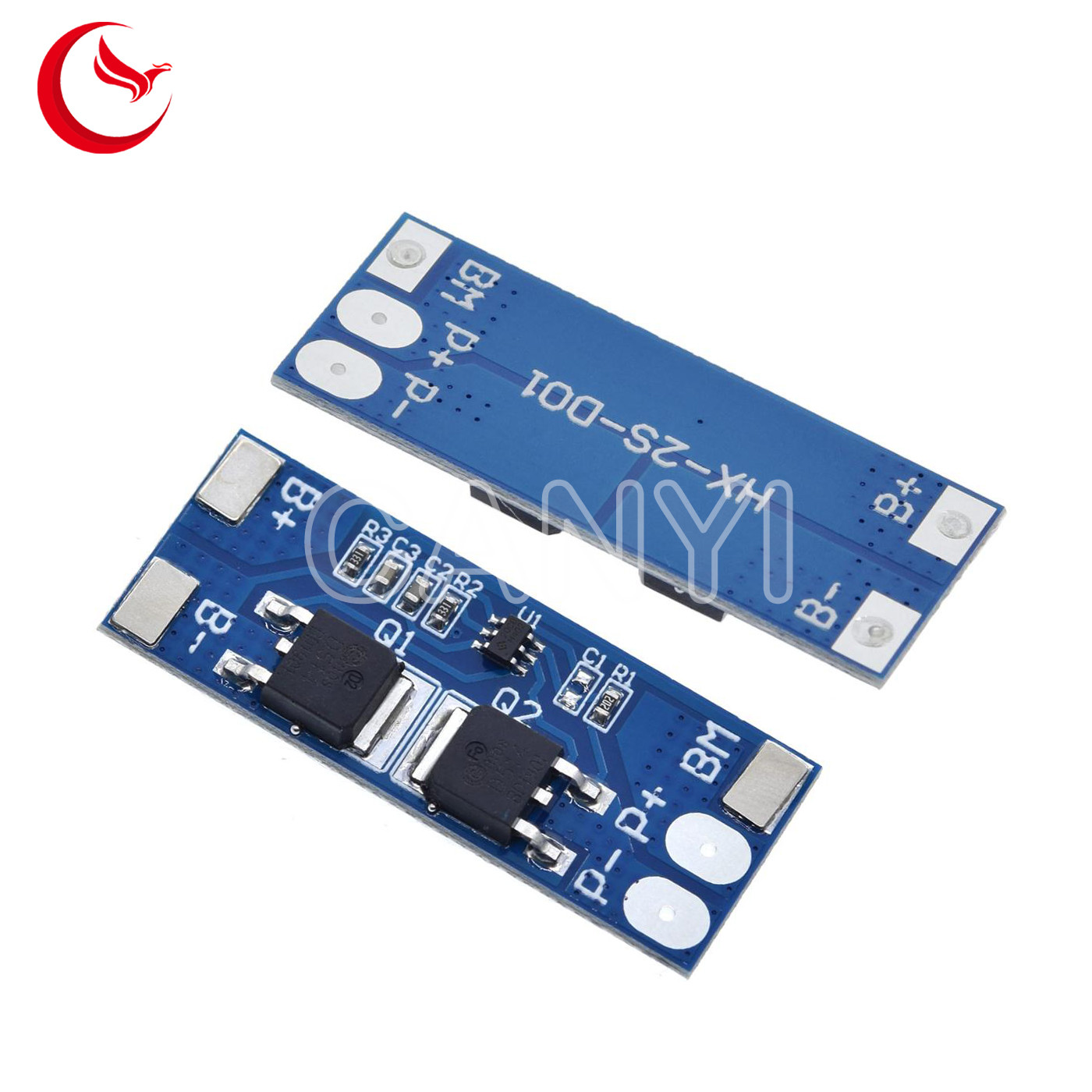

2S 8A Li-ion 7.4v 8.4V 18650 BMS PCM 15A Peak Current Battery Protection Board bms Pcm green pcb board
Feature:
Short circuit protection without balance, low internal resistance, high temperature resistance
Advantage:
| Properties of 2 series 6.4v lithium iron phosphate protective plates | 2 strings of 7.4v lithium battery protection panel properties |
| over charge pressure range: 3.65v + 0.05v | overcharge pressure range: 4.25v + 0.05v |
| Size: 41*16*3.5mm | Size: 41*16*3.5mm |
| over discharge voltage range: 2.0-2.5v plus or minus 0.05v | over discharge voltage range: 2.9v plus or minus 0.05v |
| Maximum working current: 8 a | Maximum working current: 8 a |
| working temperature: - 40 - + 50 ℃ | working temperature: - 40 - + 50 ℃ |
| Maximum instantaneous current: 10 a | Maximum instantaneous current: 10 a |
| storage conditions: - 40 - + 80 ℃ | storage conditions: - 40 - + 80 ℃ |
| Static current: less than 10uA | Static current: less than 10uA |
| effective life: more than 50,000 hours | effective life: more than 50,000 hours |
| Resistance: less than 300 m Ω | Resistance: less than 300 m Ω |
| short circuit protection: to protect and restore must charge | short circuit protection: to protect and restore must charge |
| Charging voltage: 7.2v - 8.4v | Charging voltage: 8.4v -9V |

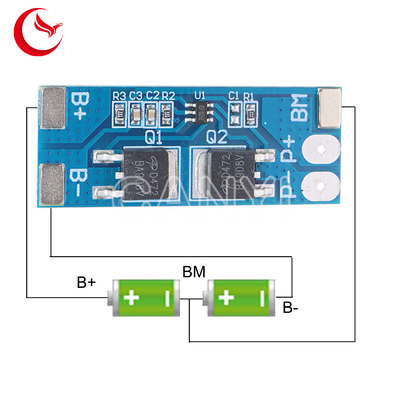

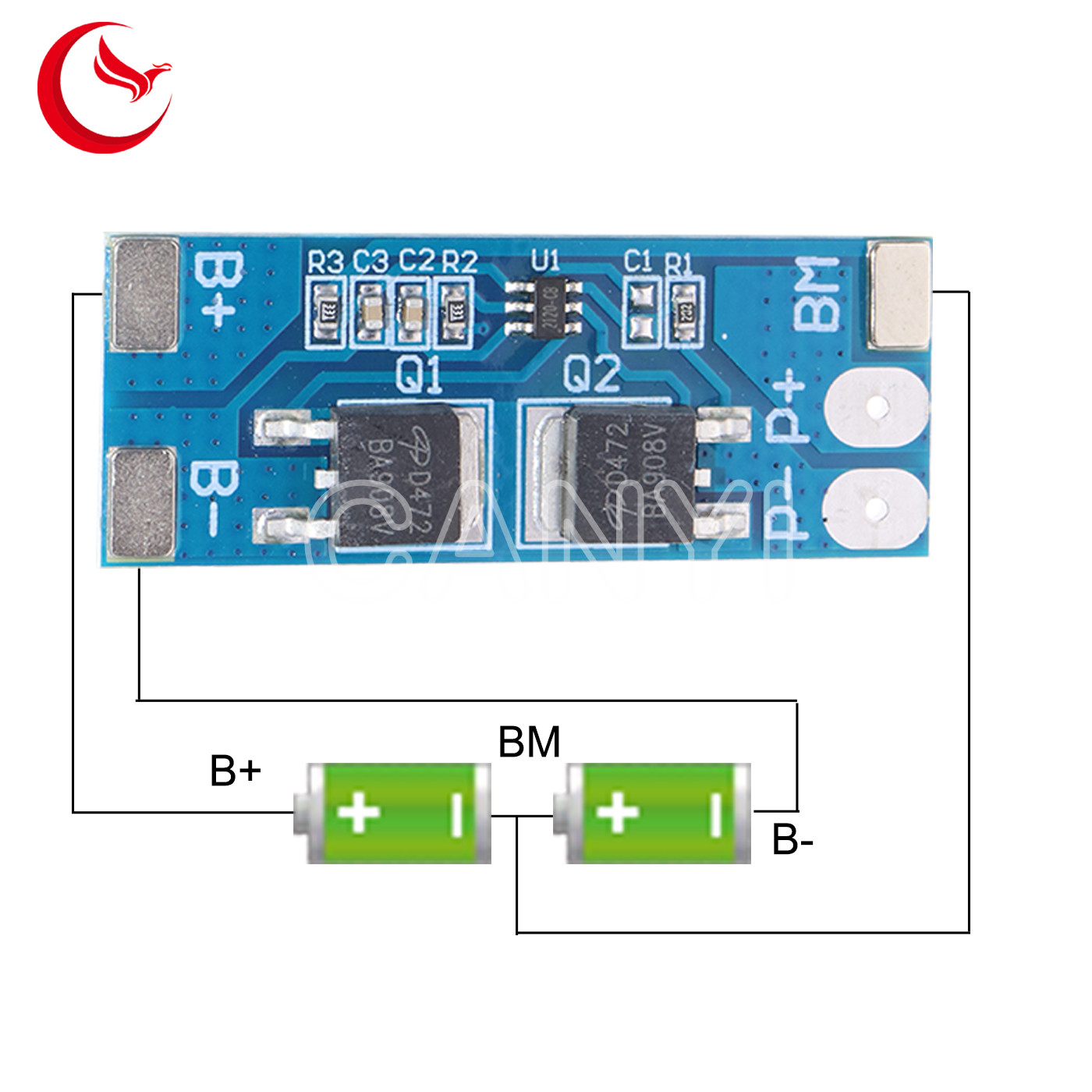

· B+ connect the positive electrode of the battery;
· b-connect the battery cathode;
· MB connection points before battery 1 and battery 2;
· P+ charging/discharging positive pole (common at charging end/discharging end);
· p-charge/discharge end negative pole (common at charging end/discharge end).
