| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-1S-3576 |
| Minimum Order Quantity: | 3000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Maximum Sustained Current: | 6A | Over-current Detection Current: | 7.5A |
|---|---|---|---|
| Charging Voltage: | 4.2V | OEM: | Can Customizable Products |
| High Light: | BMS PCM Battery Protection Board,15A 3.7V Battery Protection Board,10A Li-Ion Battery PCB Assembly |
||

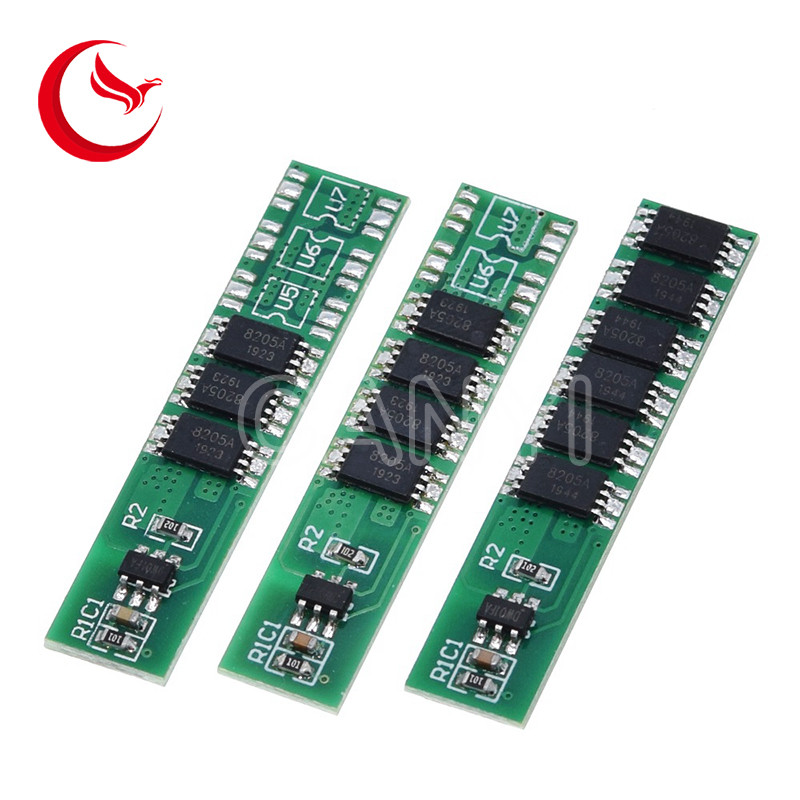

1S 7.5A 10A 15A 3.7V Li-ion 3 4 6MOS BMS PCM Battery Protection Board printed circuit assembly

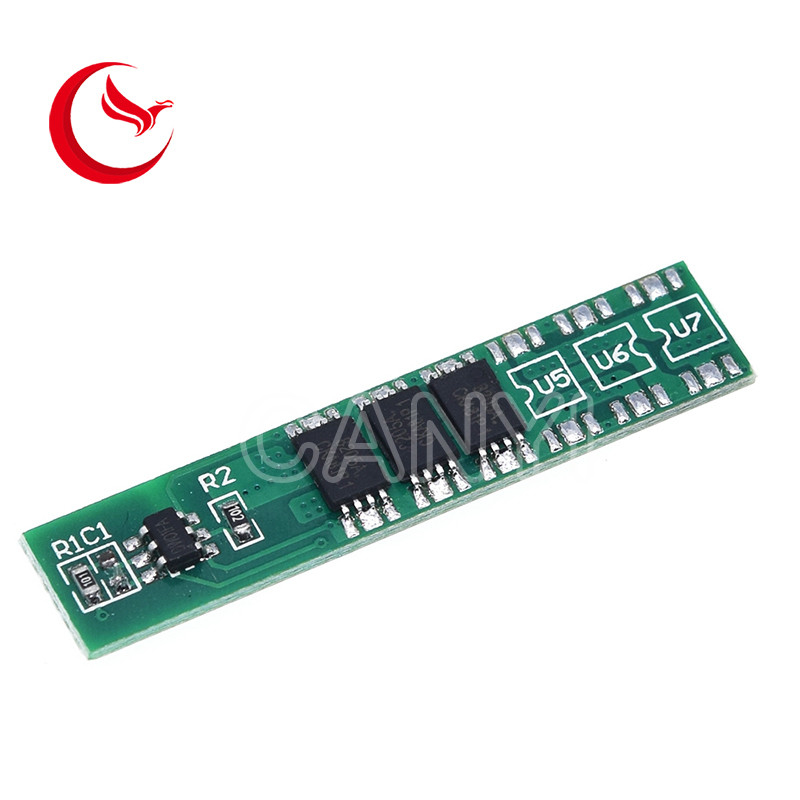

3MOS Operation parameters:
Charging test voltage: 4.25 + / - 0.05 V
Charging: release of the 4.23 + / - 0.05 V
A discharge detection voltage: 2.45 + / - 0.1 V
Maximum sustained current: 6 a
Over-current detection current: 7.5 A
Charging voltage: 4.2 V
Product size: 35 * 7.4 * 7.4 MM
IC components: DW01 + 8205 * 3 a
Main functions:
The overcharge protection, discharge protection, short circuit protection, over current protection.
Connection details:
B + battery positive electrode.
B - connect battery cathode
P + enter the anode for battery output
P - for battery output input cathode

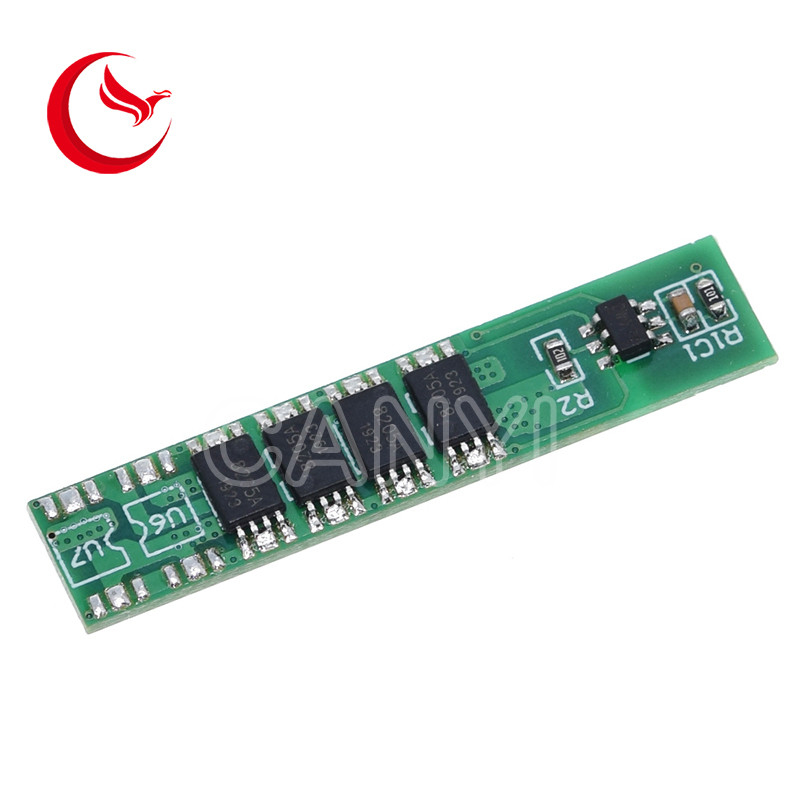

4MOS:
Over charge voltage: 4.25±0.05V
Over charge release voltage:4.23±0.05V
Over discharge voltage:2.54±0.1V
Maximal continuous charging/discharge current: 7.5A
Maximal Discharging current: 10A
Size: L35*W7*T2mm
Weight: 10g

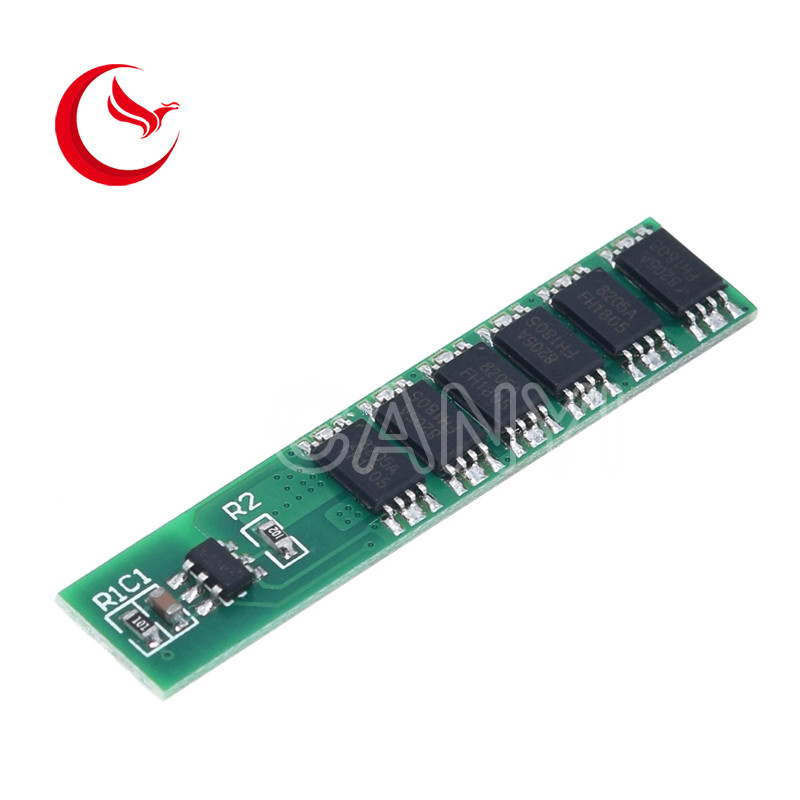

6MOS:
Overcharge detection voltage: 4.25 + 0.05V
Overcharge disconnection voltage: 4.23 + 0.05V
Overdischarge detection voltage: 2.45 + 0.1v
Maximum continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 4.2v
Product size: 35*7.6*2MM
IC component: DW01+8205A
Main functions:
Overcharge protection, overdischarge protection, short circuit protection, overcurrent protection.

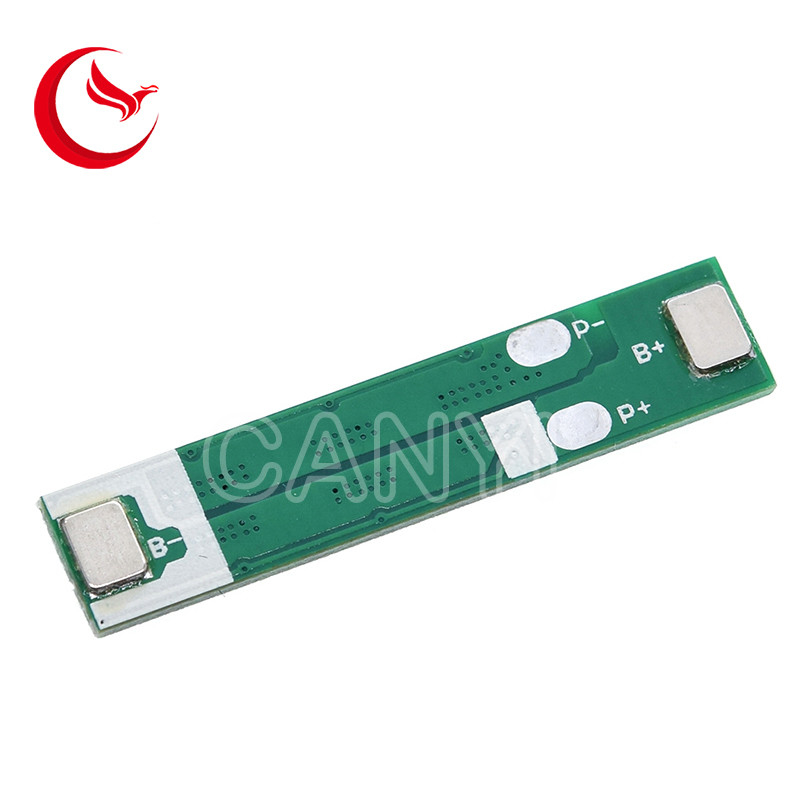

Wiring instructions:
B+ connect the positive electrode of the battery.
B- connect the battery cathode.
P+ is the input positive pole of battery output
P- is the output input cathode of the battery pack
