| Place of Origin: | China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | SRX882 |
| Minimum Order Quantity: | 200PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Voltage Regulator | Model Number: | 433MHz 100 Meters Wireless Module |
|---|---|---|---|
| Operating Temperature: | 40℃±85℃ | Package: | SMD |
| Is Customed: | Yes | Application: | TV |
| High Light: | 433MHz Prototype Pcb Assembly,100 Meters Prototype Pcb Assembly,SRX882 |
||

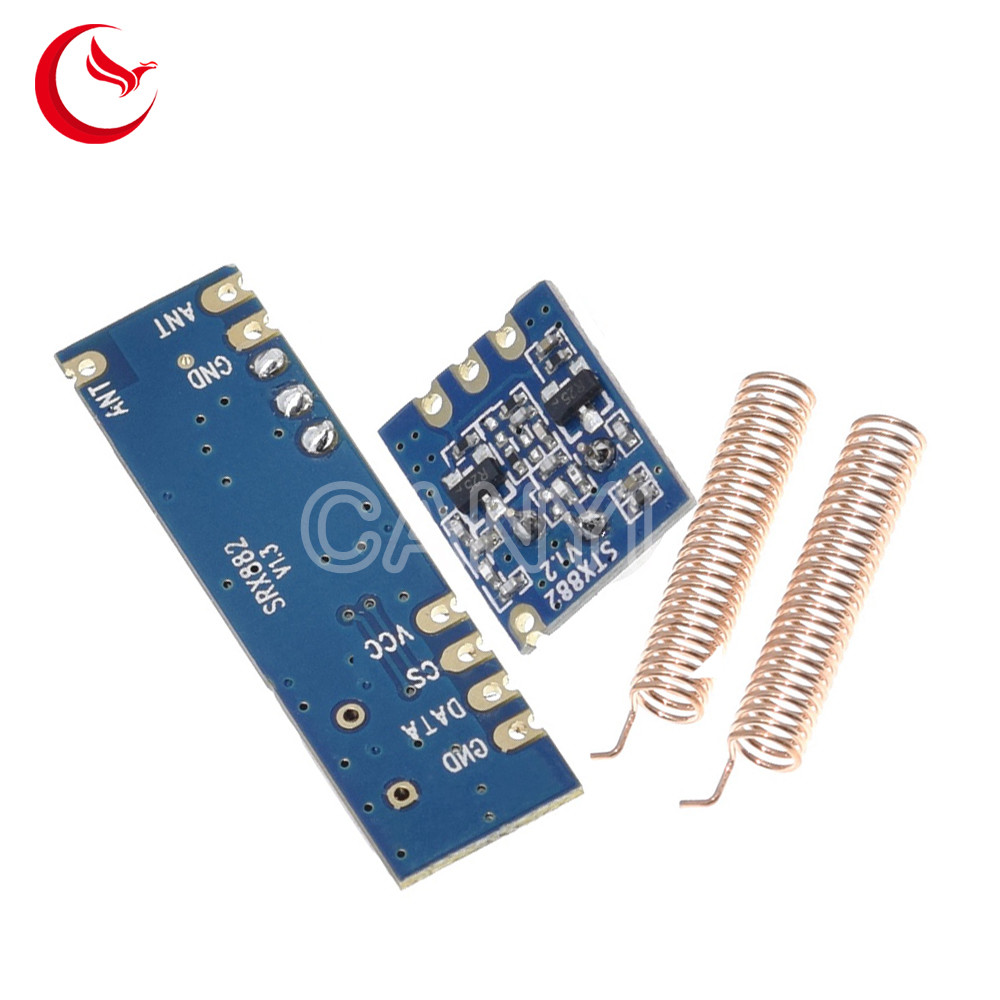

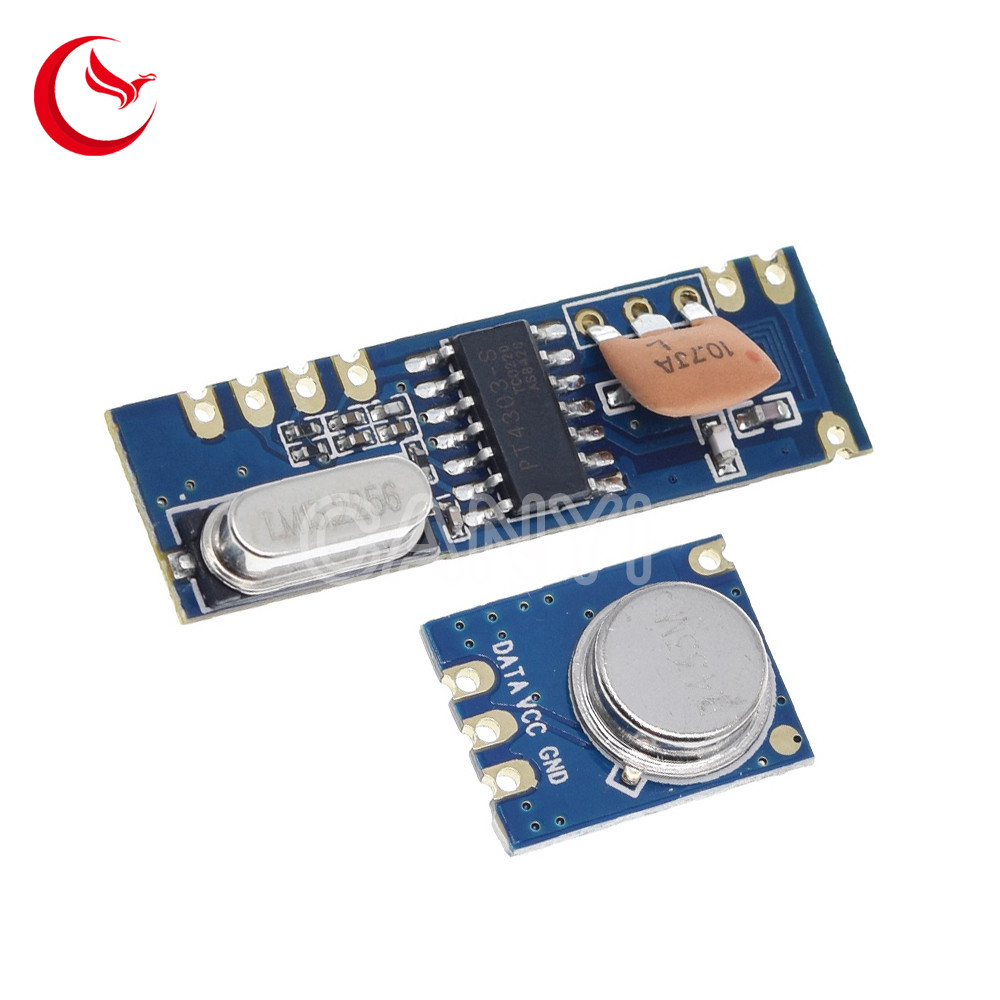

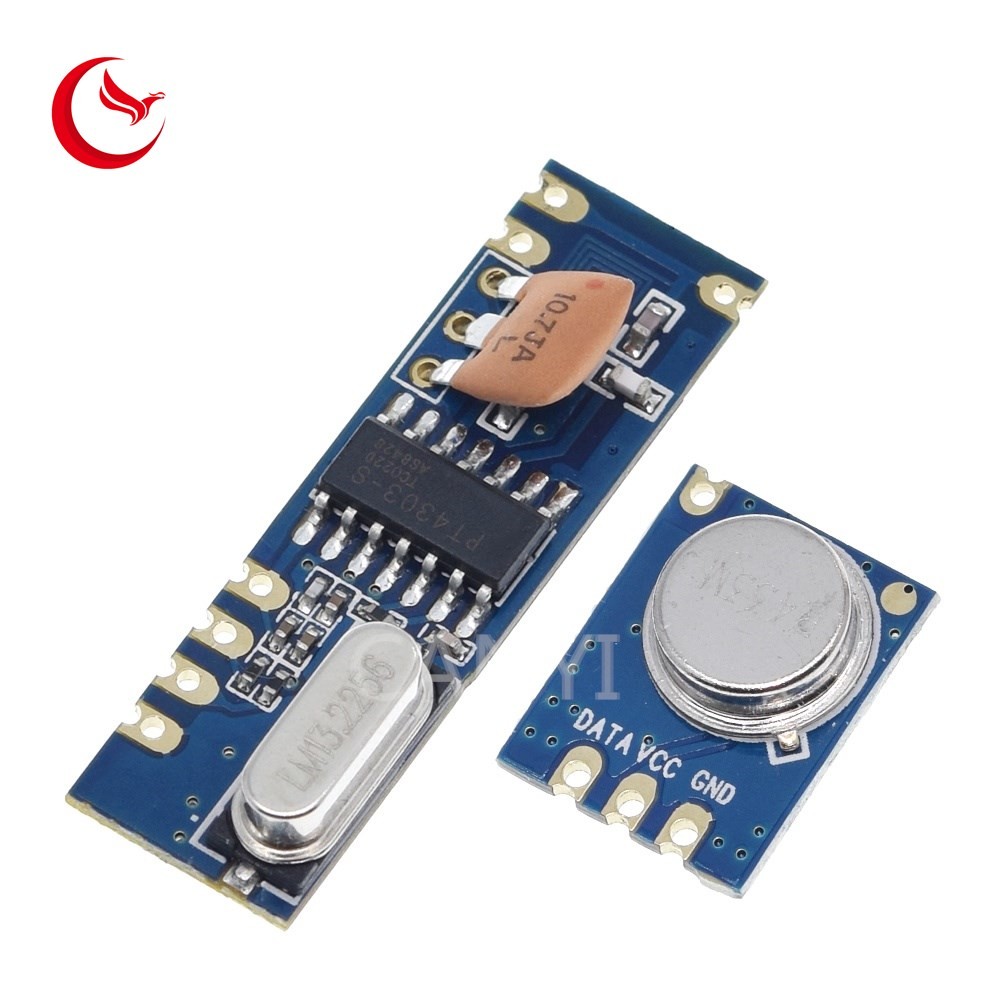

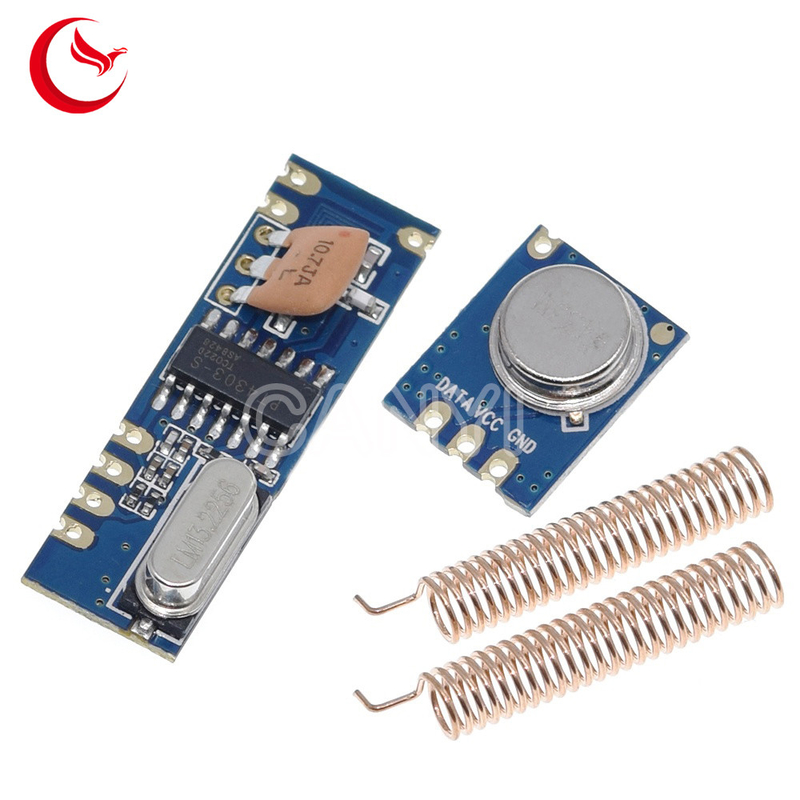

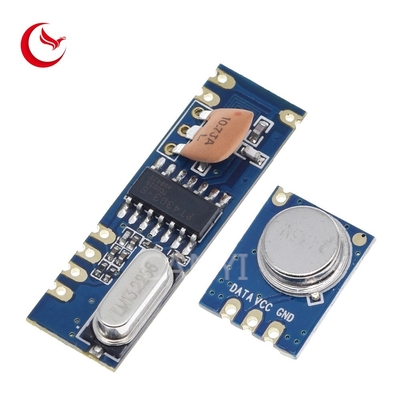

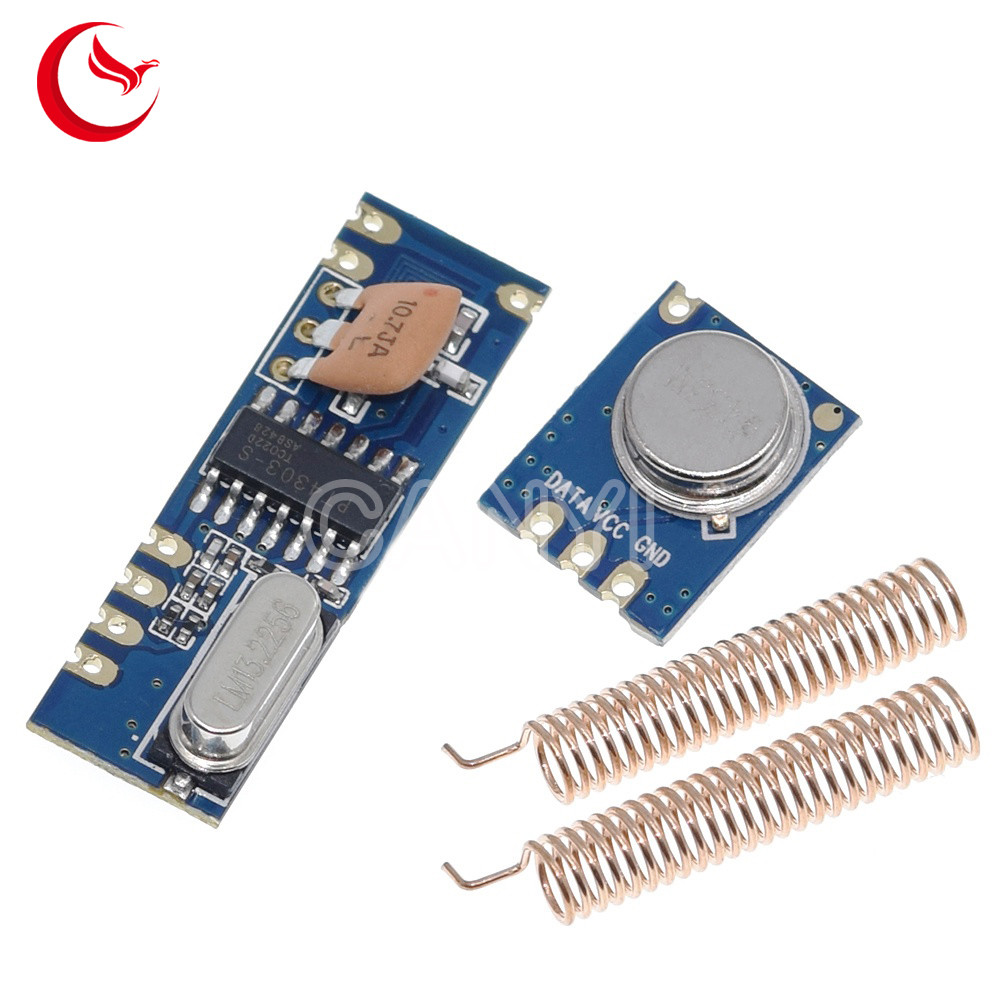

1 set 433MHz 100 meters wireless module pcb assemblies kit ask transmitter stx882 receiver srx882
Brand Name : CANYI
Condition : New
Type : Voltage Regulator
Model Number : 433MHz 100 Meters Wireless Module
Application : TV
Operating Temperature : -40℃±85℃
Package : SMD
is customized : Yes
PRODUCT INFORMATION
Introduction

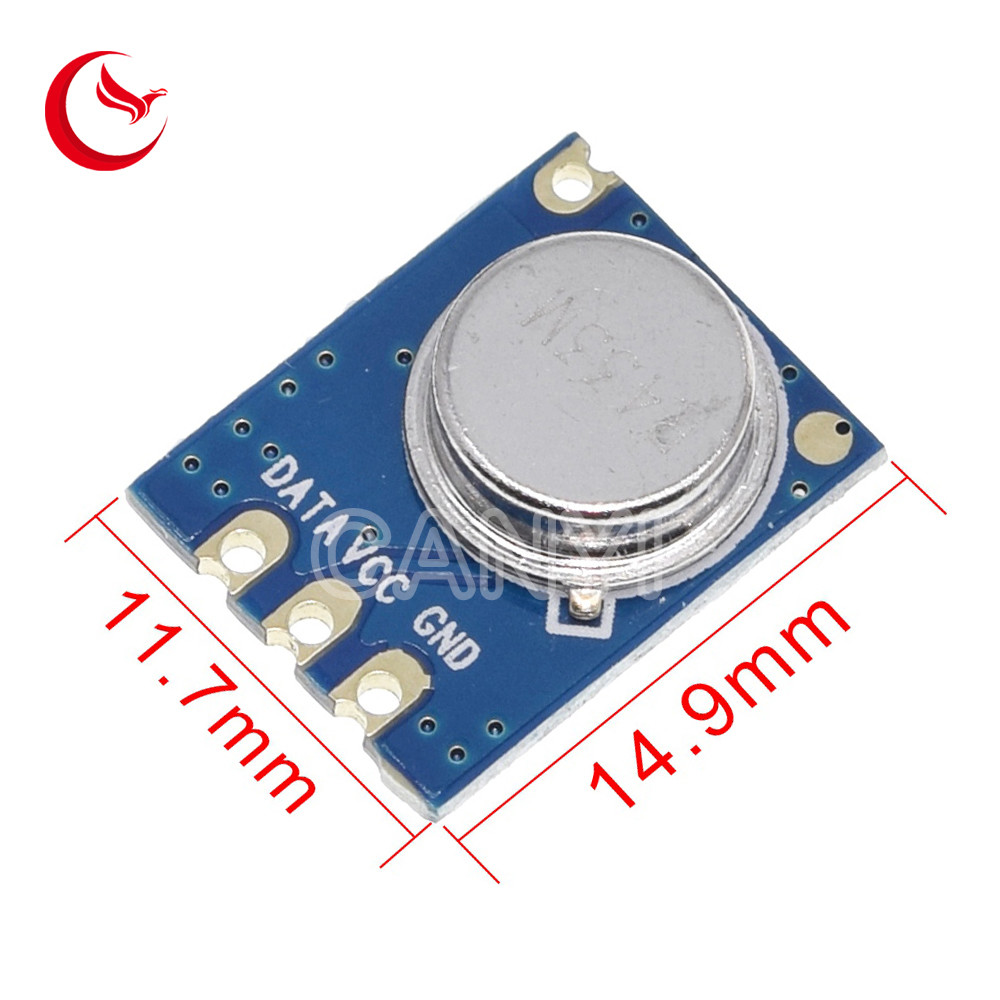

STx882 is a ASK transmitter module with small size,ultra high power,
low harmonics.With high stability, it can be achieved at 50mW power
when the voltage is 3.6V, it is the maximum transmitter power module
under the the same voltage in the market.Data port of the module can
be connected to the microcontroller directly,make wireless product
development and production more convenient.
1:ANT,Connect 50 Ohm Antenna
2:GND,Connect Power Ground
3:vcc,Connect Power Positive
4: CS,Modules Enable Pin,Floating or Connected to High
Level Work,Sleep When Connect Ground
5:DATA,Data Input
6:GND,Connect Power Ground
7:ANT,Connect 50 Ohm Antenna
