| Place of Origin: | China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | 4S 18650 Charger board |
| Minimum Order Quantity: | 200PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Module Size: | 50mm*22mm*4mm | Working Temperature: | -40℃±85℃ |
|---|---|---|---|
| Connection: | Welding Output | Supply Voltage: | 14.4V 14.8V 16.8V |
| Package: | SMD | Is Customed: | Yes |
| Dissipation Power: | 18650 Charger Protection Board | Application: | Experimental Modules |
| High Light: | Lithium Battery Pcb Board Ssembly,Phosphate Battery Electronic Pcb Board,Phosphate Battery Protection Board |
||

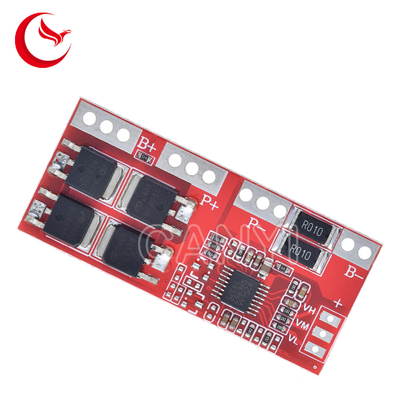

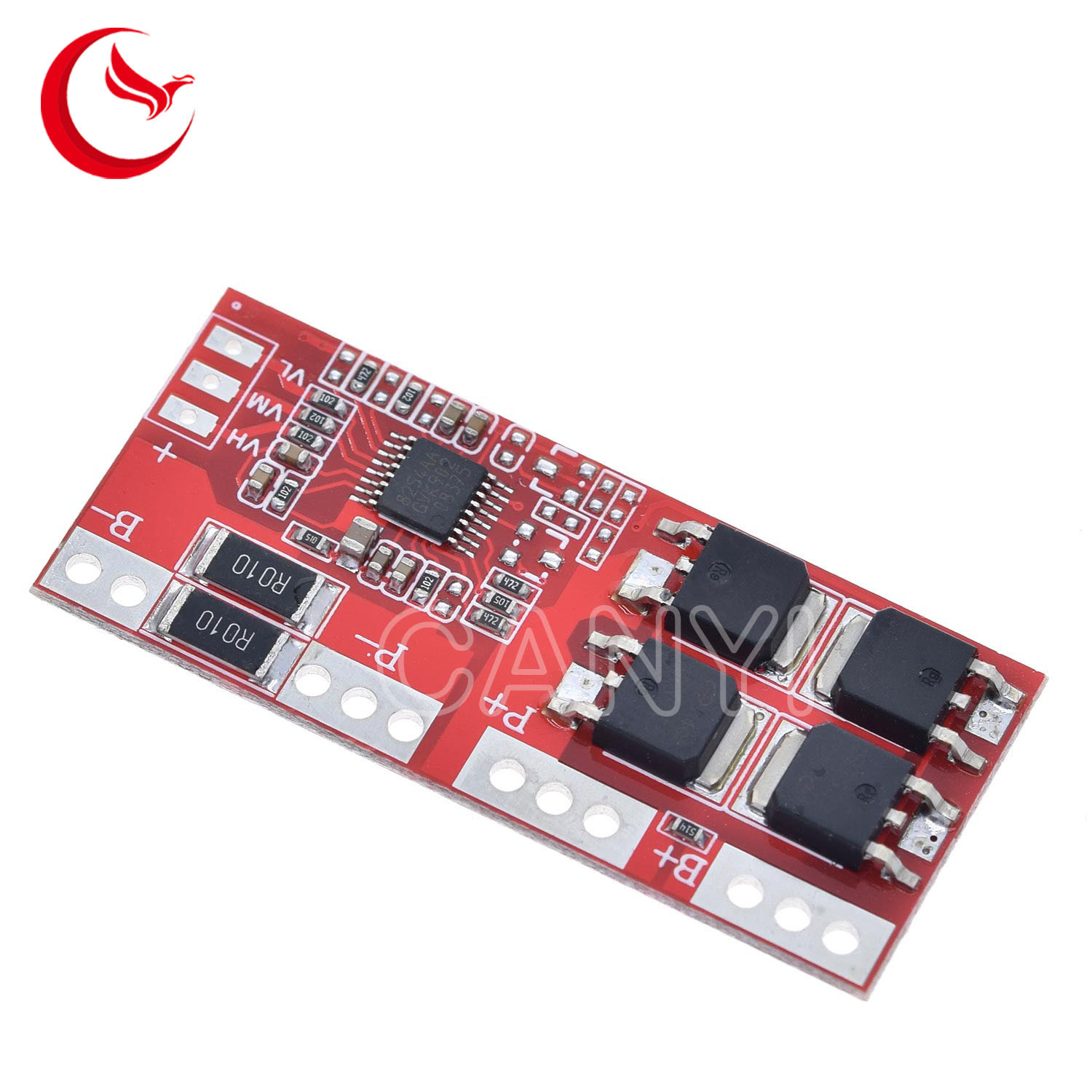

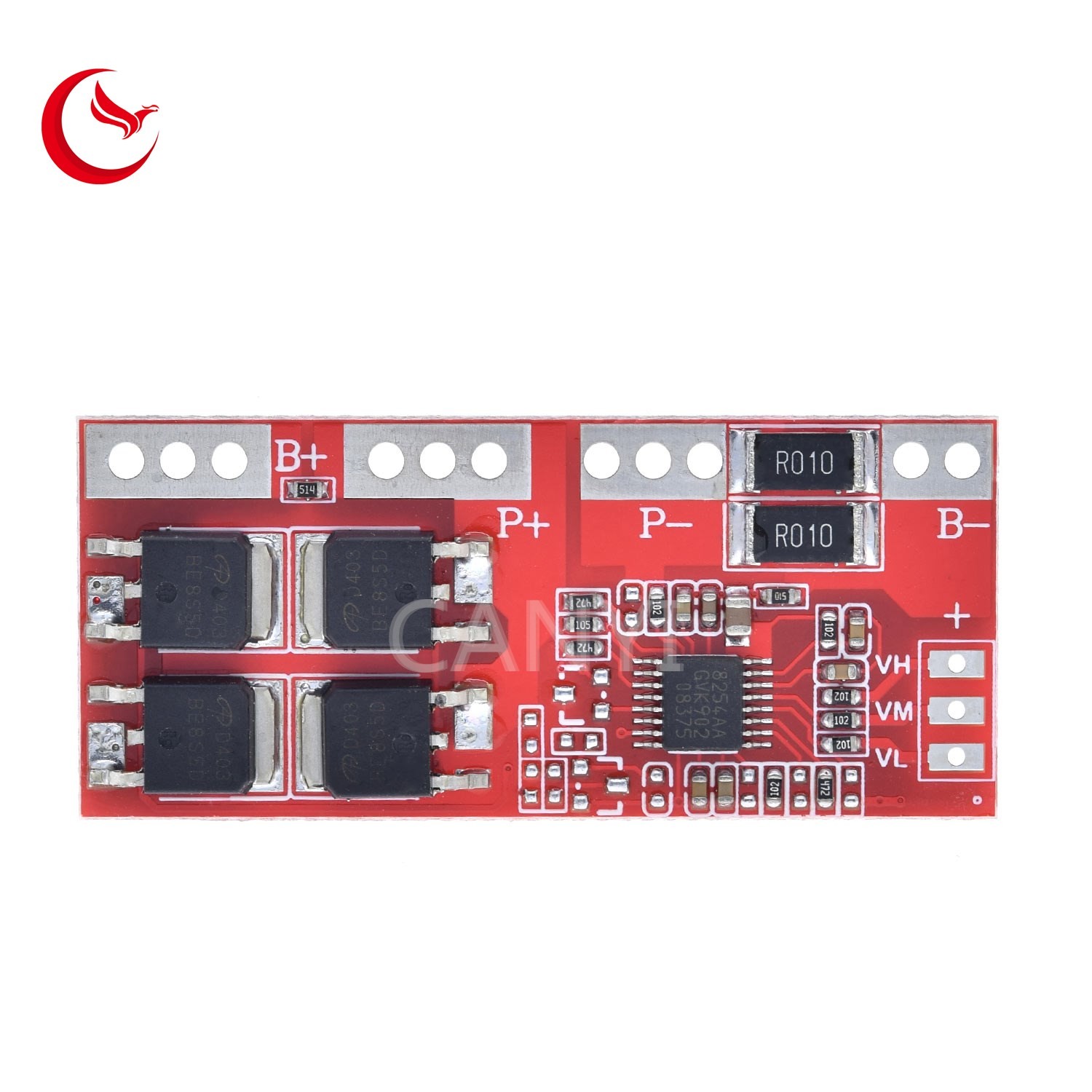

pc board assembly 4S 30A High Current Liion Lithium Battery 18650 Charger electronic pcb assembiles board 14.8V 16.8V
Termination conditions:the release of protection condition then automatic recovery, without activation (optional charger to activate)
Main functions: the overcharge protection function, overdischarge protection, short-circuit protection, over current protection.
Working temperature: -40℃±85℃ (high temperature environment and please strengthen radiating)
Connection: welding output
Module size: 50mm*22mm*4mm
Applications:

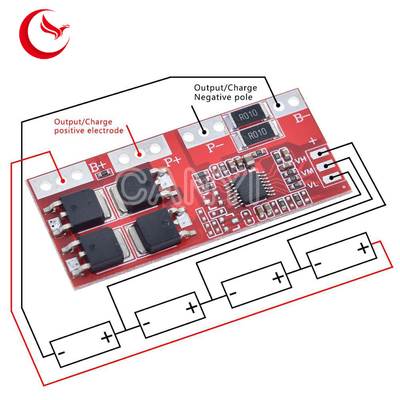

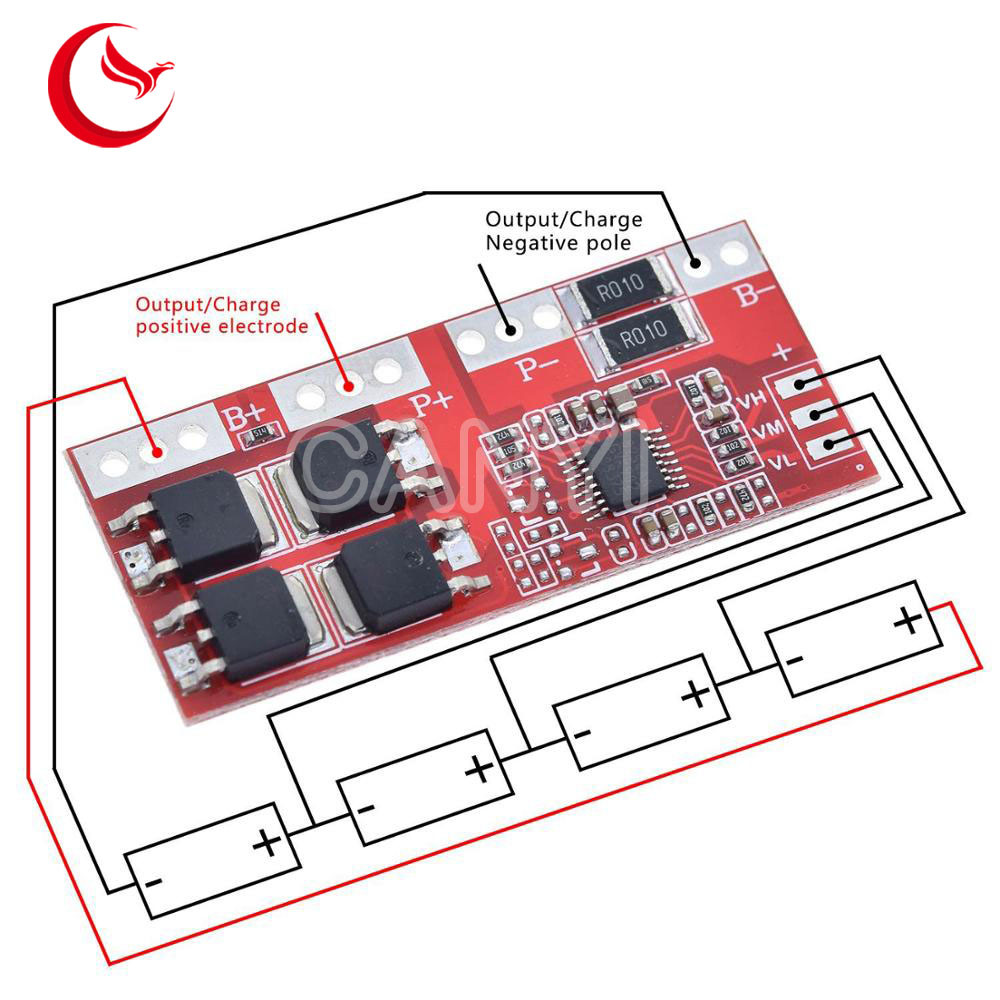

The protective board can be used as the nominal voltage of 14.4V, 14.8V, 16.8V four series of polymer lithium battery group, four series of 18650 lithium batteries as overcharge and over discharge, short circuit protection. Without the activation function in the power application for high instantaneous current,and in inverter application for avoid false triggering protection.So it will use more convenient.

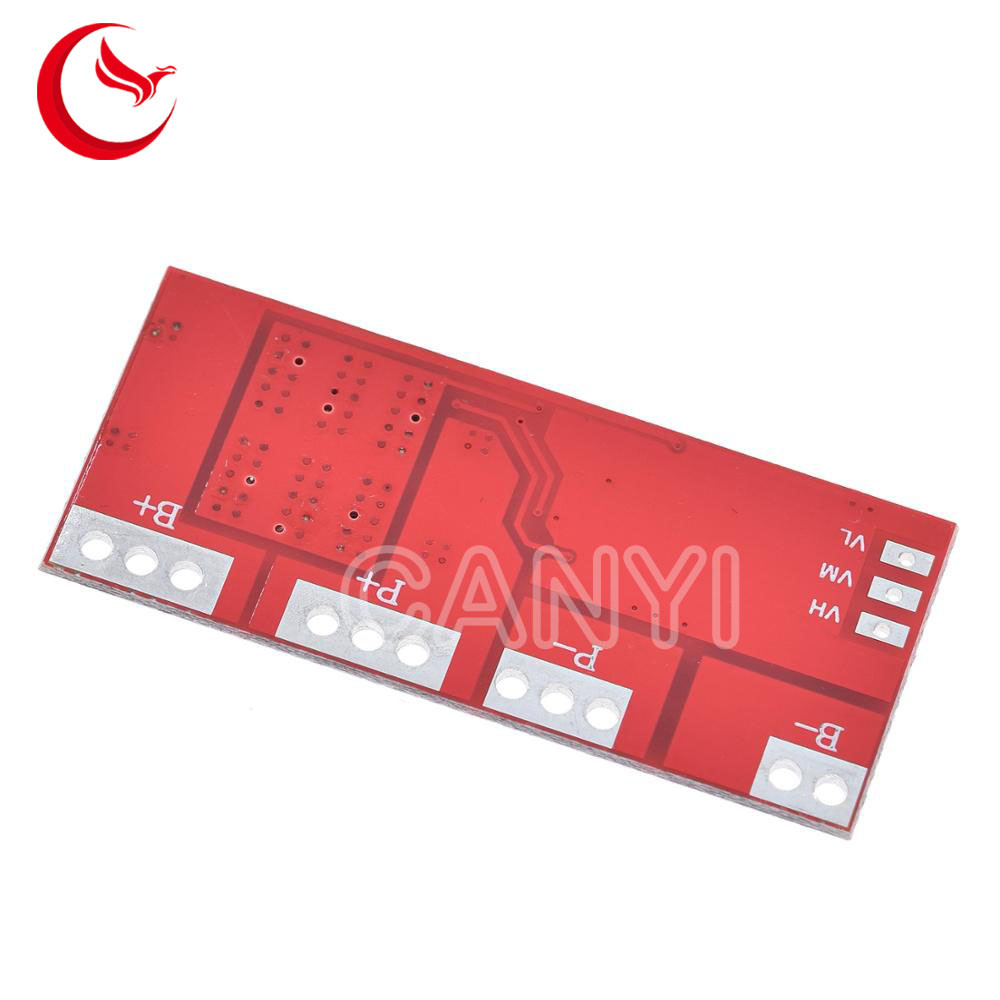

Note:No part design on the back, can be attached to the heat sink to ensure high current work situation for a long time.
| Brand Name | CANYI or Customized |
| Type | 4S 18650 Charger board |
| Condition | New |
| Application | experimental modules |
| Operating Temperature | -40℃±85℃ |
| Supply Voltage | 14.4V 14.8V 16.8V |
| Dissipation Power | 18650 Charger Protection Board |
| Package | SMD |
| is customized | YES |
