| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-111 |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |

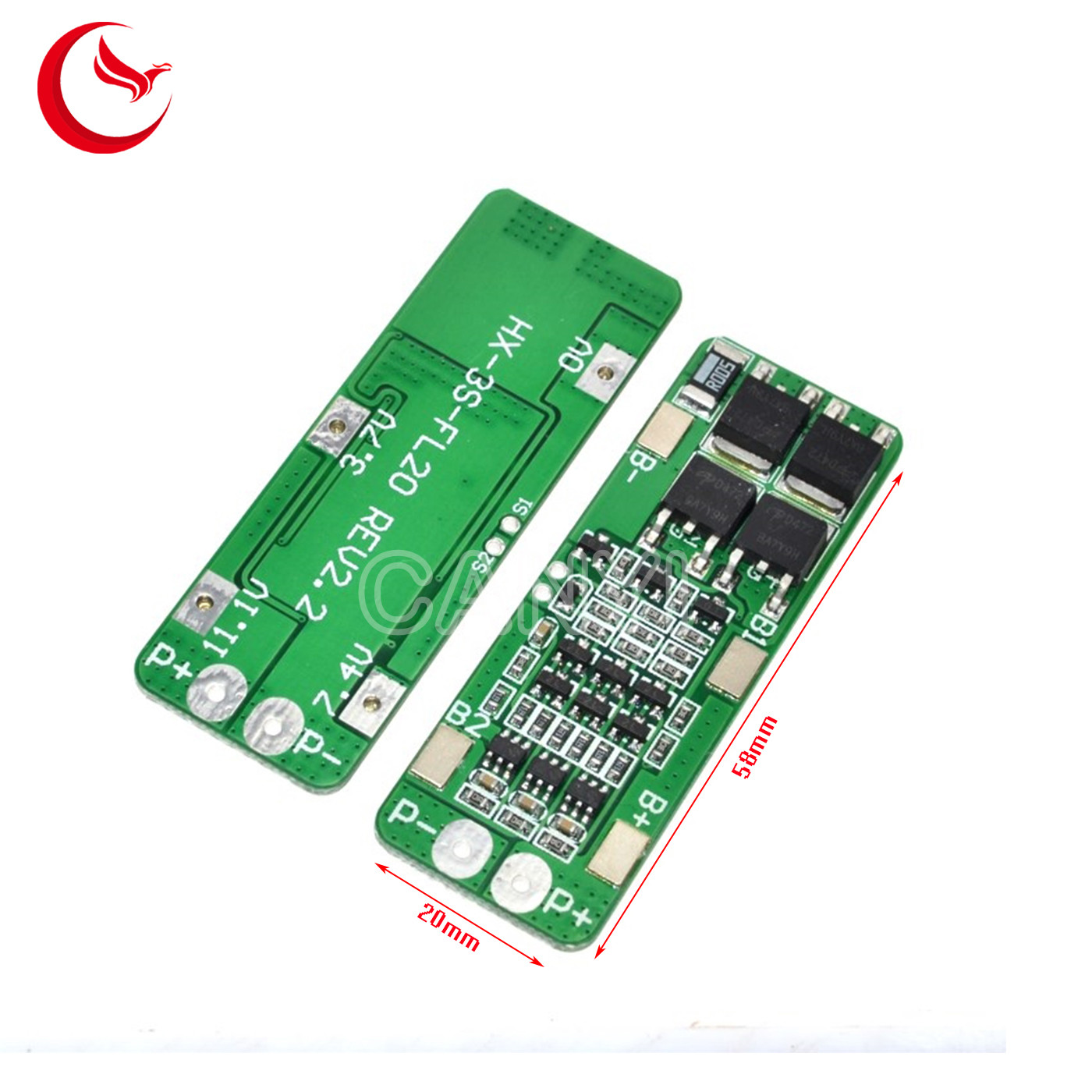

| Product Name: | 3S 15A Lithium Battery Protection Board | Size: | 58*20*3.6mm |
|---|---|---|---|
| Charging Voltage Range: | 4.25-4.35v+0.05v | Charging Voltage: | 12.6V-13V |
| Discharge Voltage Range: | 2.5-3.0v+0.05V | Maximum Working Current: | 15A |
| Useful Life: | More Than 30000 Hours | Working Temperature: | -40~+ 50°C |
| High Light: | Lithium Battery Pcb Board Ssembly,Phosphate Battery Electronic Pcb Board,Phosphate Battery Protection Board |
||
3S 15A Three series 11.1V electronics circuit board to 12V 12.6V PCB BMS circuit board assemblies
The custom printed circuit board cannot be used for lithium iron phosphate batteries, hernia lights, hand drill battery packs, electric fish machine battery packs,bicycle battery pack, children's car battery, 550 or more power motor, 1W fish-eye LED light, please pay attention to customers who purchase the above combination!
electronics circuit board application:
Massager battery back-up power, LED backup power, 12V electronic products, solar street lamps battery pack,monitoring standby power and other products.
|
Charging voltage range
|
4.25-4.35v+0.05v
|
| Charging voltage |
12.6V-13V
|
|
Size
|
58*20*3.6mm
|
| Discharge voltage range |
2.5-3.0v+0.05V
|
| Maximum working current |
15A
|
| Limit instantaneous current |
20A
|
|
Static electricity
|
<30uA
|
|
Resistance
|
< 100mQ
|
|
Useful life
|
more than 30000 hours
|
|
Short circuit protection
|
Can protect, delay the recovery |
| Working temperature |
-40~+ 50°C
|
|
Storage conditions
|
-40~+ 50°C
|
After connected line need to recharge, just can have output.
3 series battery, please make sure that each set of battery voltage, if not, please separate with each set of batteries in series.Discharge test, the battery voltage drops quickly is a bad battery.
Note: don't put the good cells and in bad!Three groups of battery capacity/internal resistance as close as possible!(2 + 1 good battery,the use effect of poor battery = the use effect of three bad battery ).

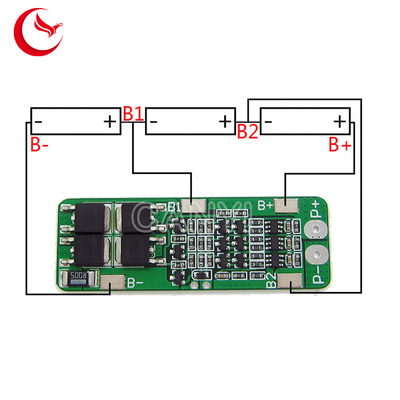

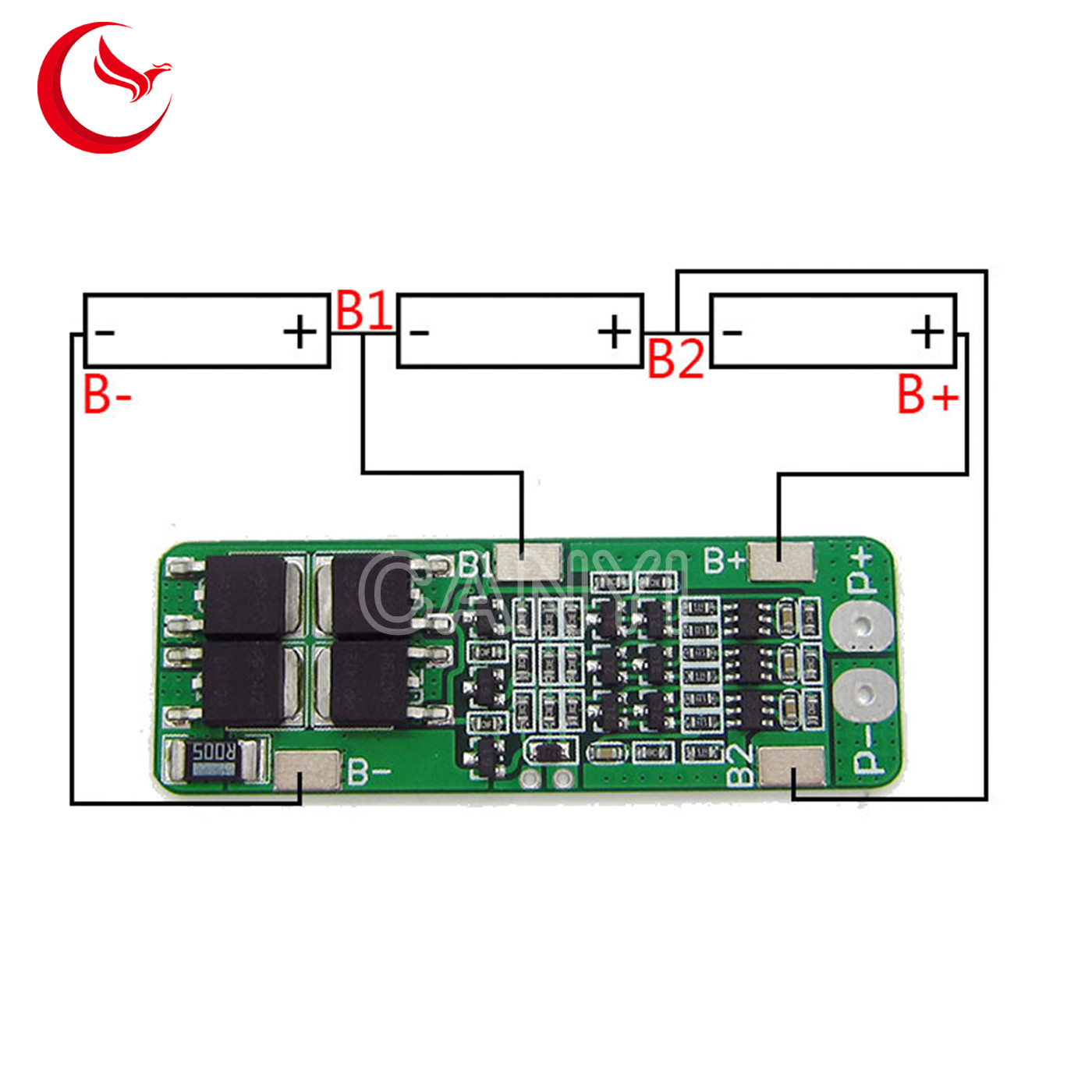

P+ P- input/output interface, the same series of batteries,the capacity, internal resistance and voltage are matched well, no output after good combination, with the charge voltage of 12.6 V charger.
Combined battery pack display as above.
