| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-2S-A2 |
| Minimum Order Quantity: | 3000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Size: | 17.5 * 17.5 * 17.5 Mm | Charging Voltage: | 8.4 V - 9 V |
|---|---|---|---|
| OEM: | Can Customizable Products | ||
| High Light: | Lithium Battery Pcb Board Ssembly,Phosphate Battery Electronic Pcb Board,Phosphate Battery Protection Board |
||

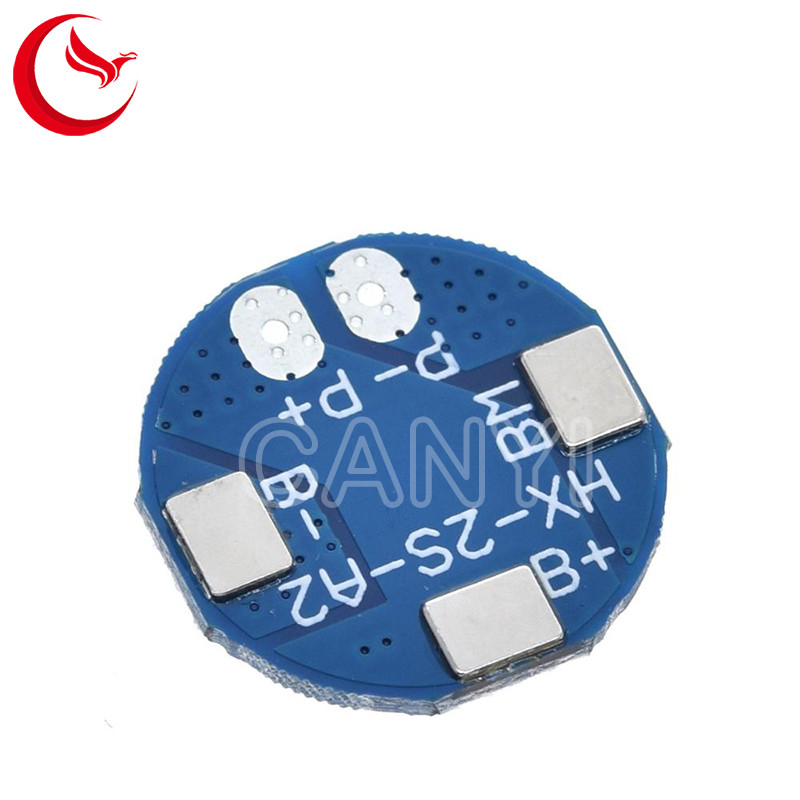

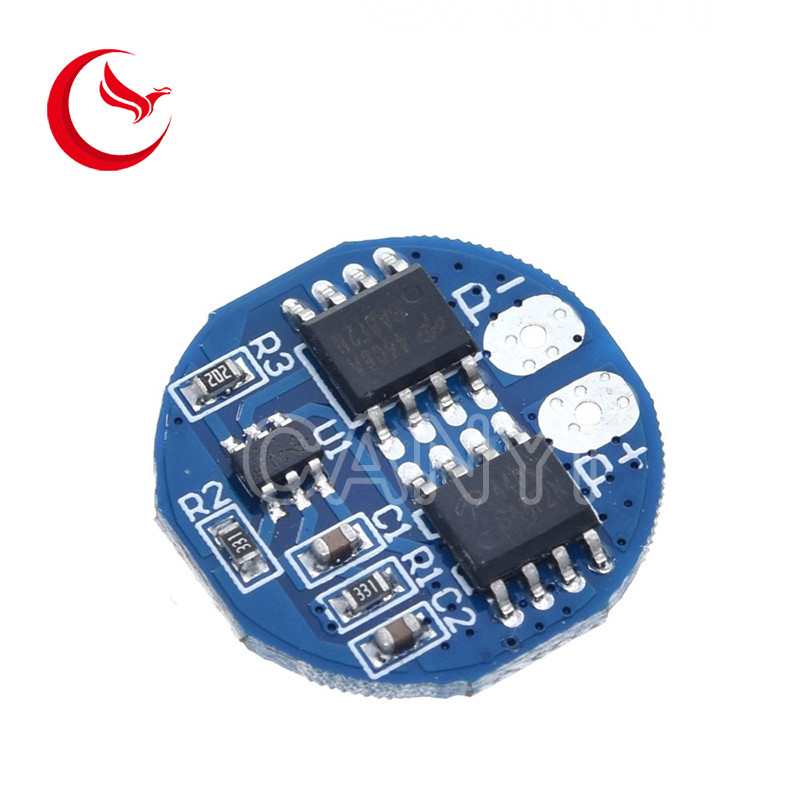

2S 5A Li-ion Lithium Battery 7.4v 8.4V 18650 Charger Protection Board pcb printed circuit board assembly
Lithium battery protection board properties:
Model: CY - 2 s - A2 of charging voltage range: 4.25 + / - 0.05 v to 4.35 v

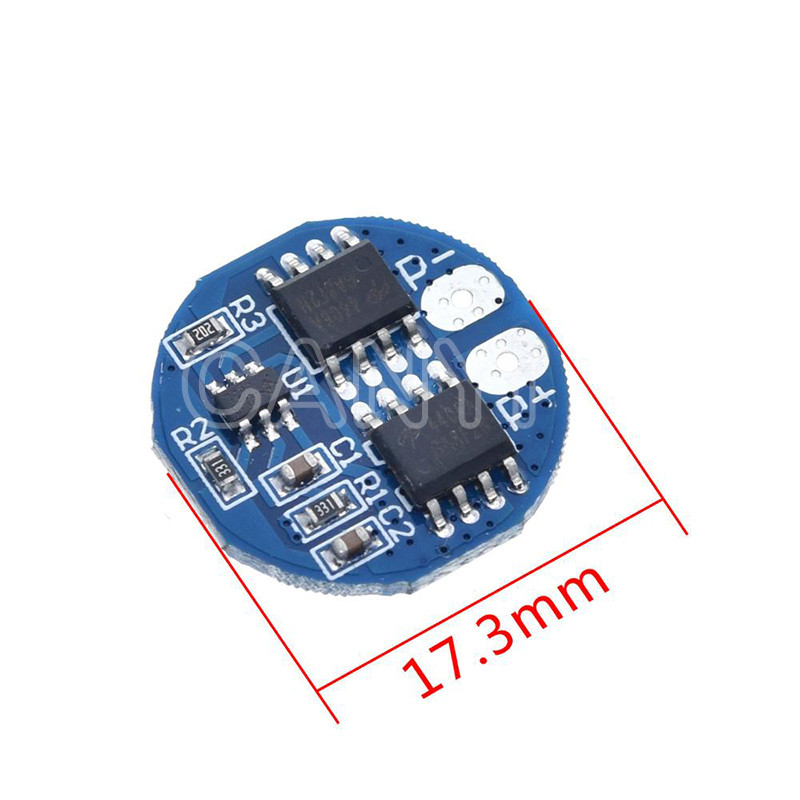

Size: 17.5 * 17.5 * 17.5 mm discharge voltage range: 2.5 + / - 0.05 v to 3.0 v
Maximum working current: 5 a working temperature: - 40 - + 50 °
Maximum instantaneous current: 7 a storage conditions: - 40 - + 80 °
Static electricity: less than 10 ua useful life: more than 50000 hours
Resistance: less than 300 m Ω short circuit protection: to protect and restore must charge
Charging voltage: 8.4 V - 9 V

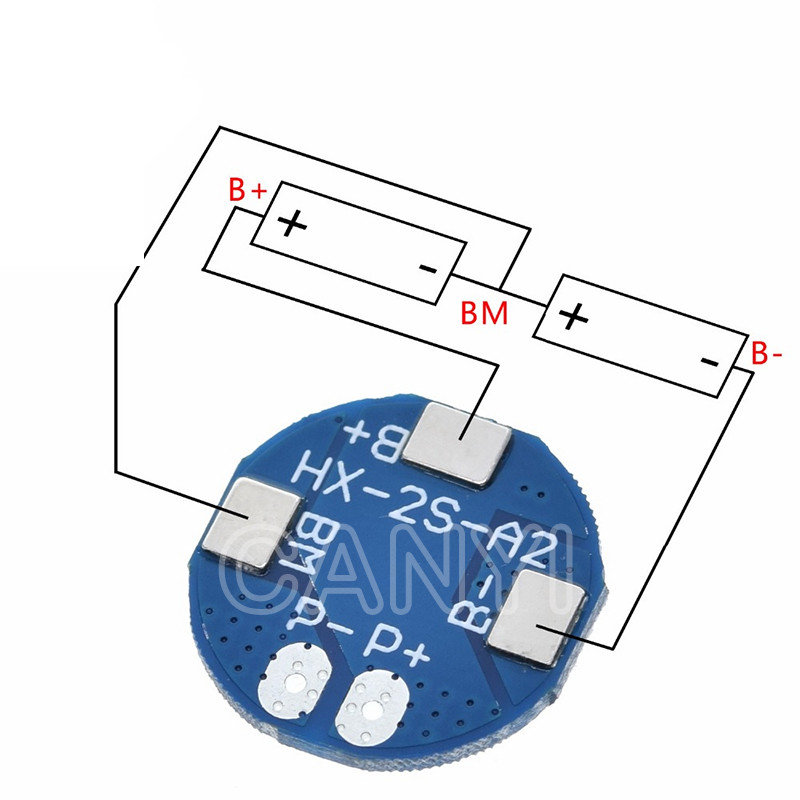

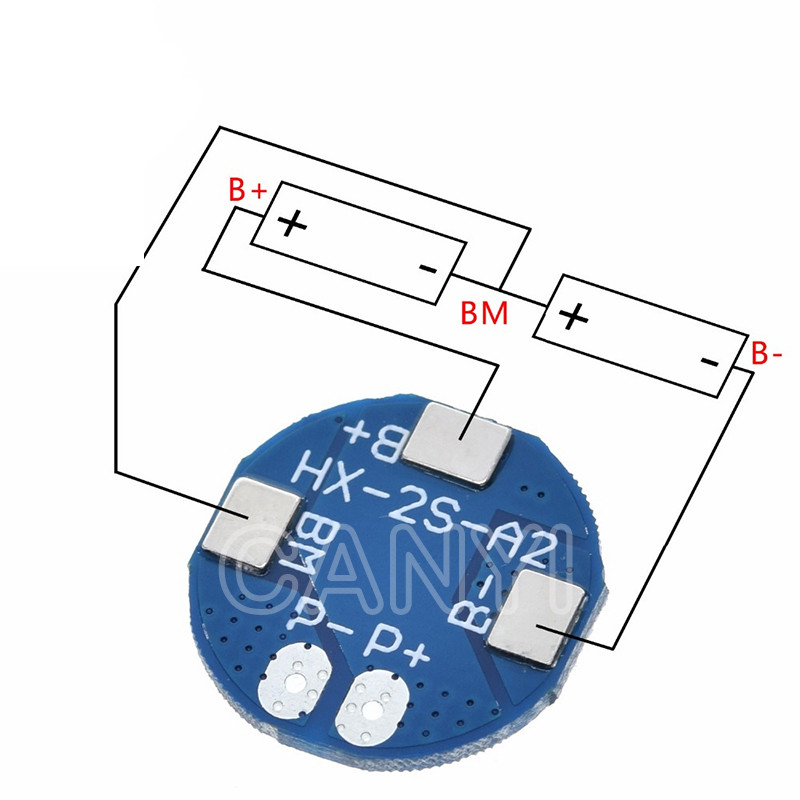

Welding point:
B. + connect battery anode;
B. - connect battery cathode;
MB, connect battery 1 and 2 before the join points;
P. + correct answer the charge/discharge (charging/discharging end sharing);
P. - answer the charge/discharge end negative (charging/discharging end sharing).
