| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-259 |
| Minimum Order Quantity: | 1000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | 1S 3.7V 3A Pcb Board Assembly | Over Charge Voltage: | 4.25±0.05V |
|---|---|---|---|
| Over Charge Release Voltage: | 4.23±0.05V | Over Discharge Voltage: | 2.54±0.1V |
| Maximal Continuous Charging Current: | 2A | Over Current Protection: | 3A |

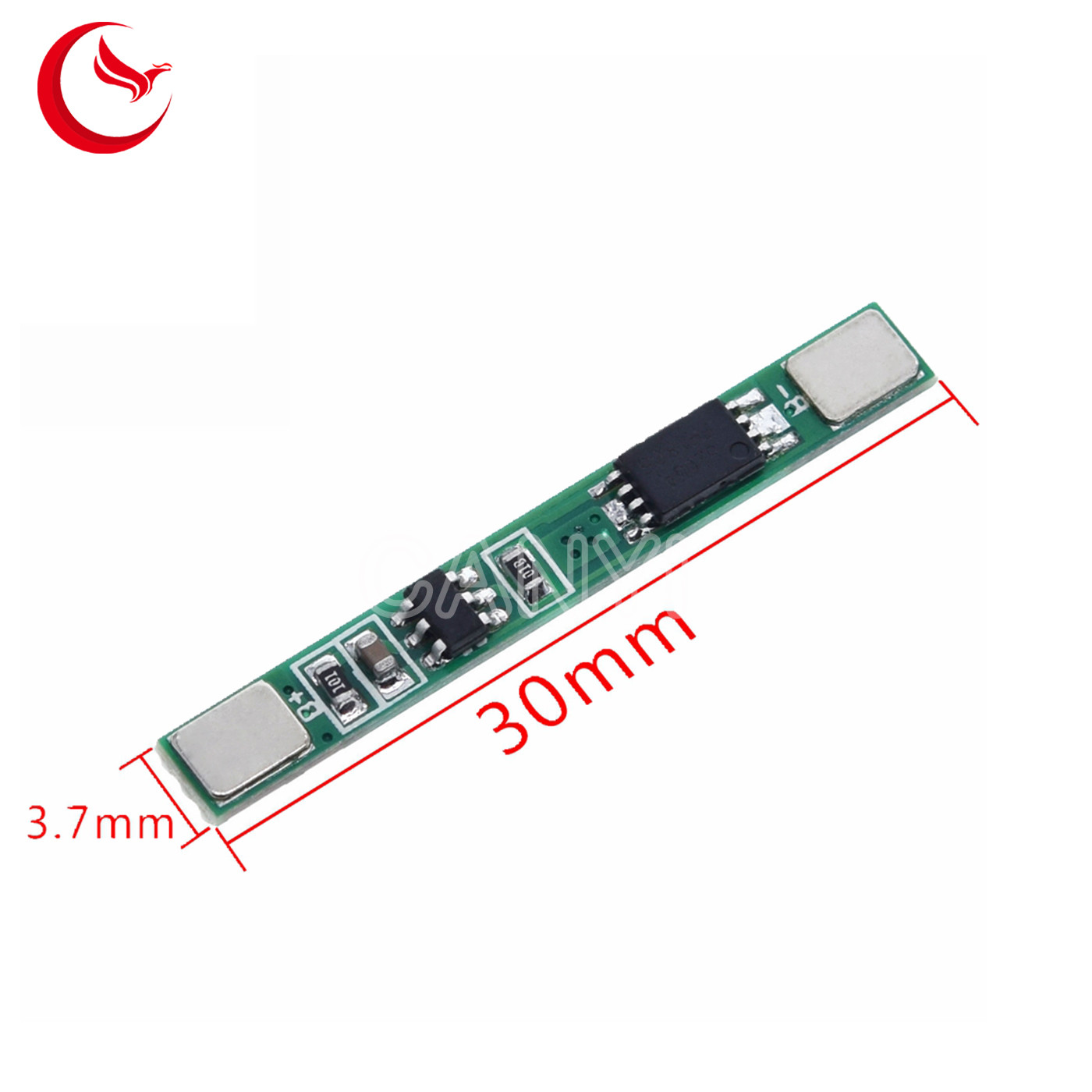

| Size: | L30*W4mm | Weight: | 10g |
| High Light: | BMS PCM Battery Protection Board,3.7V 3A Battery Protection Board,18650 Lithium Battery Protection Board |
||

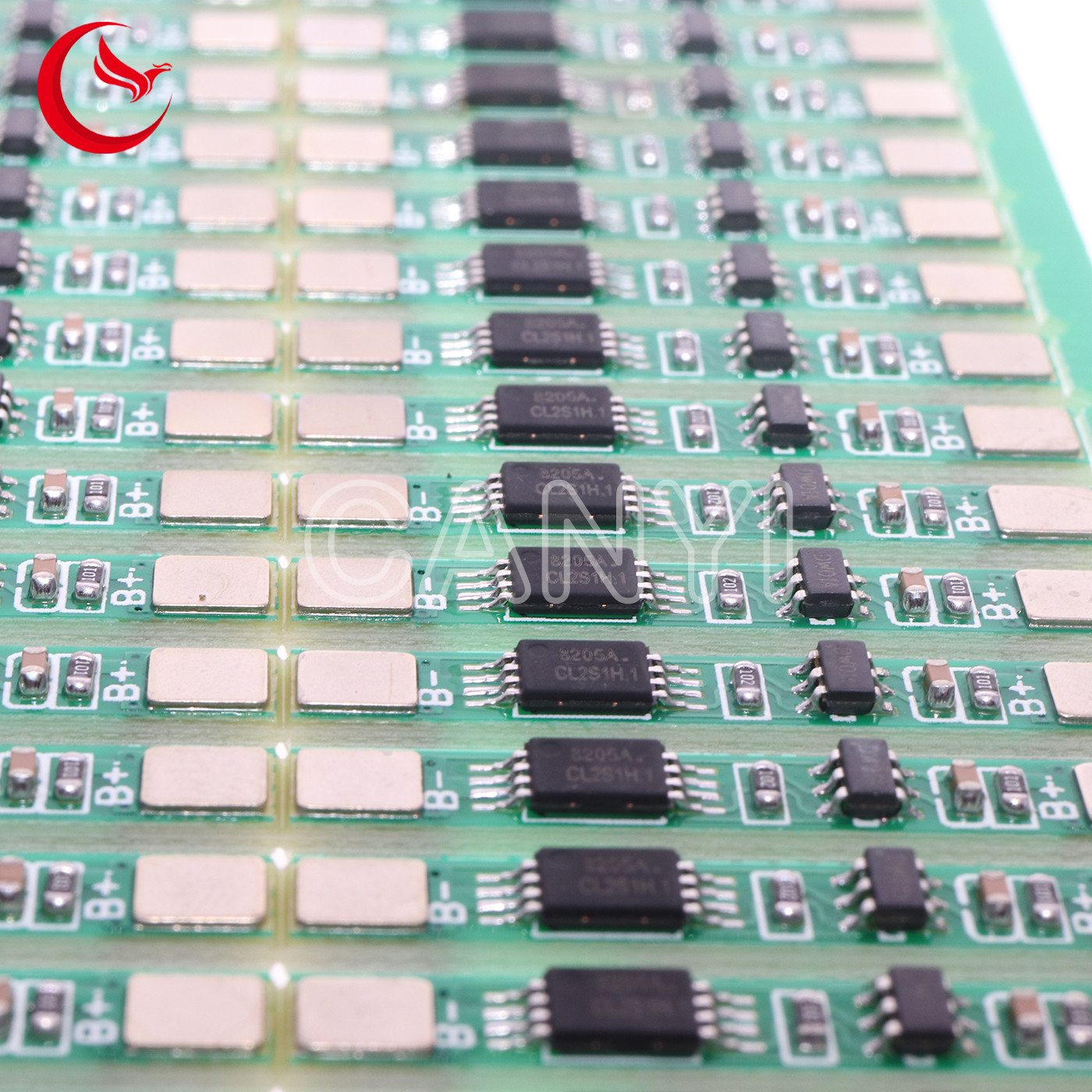

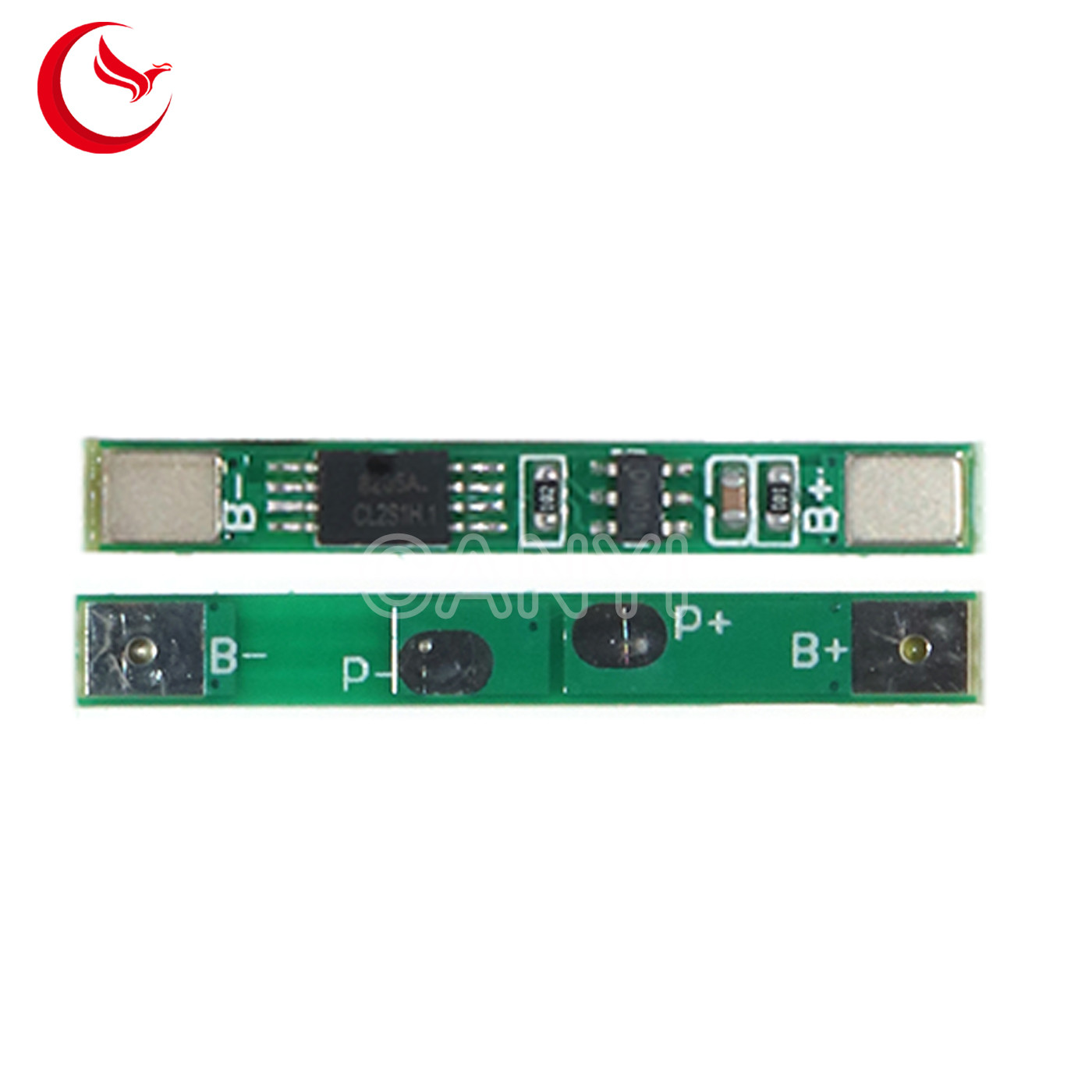

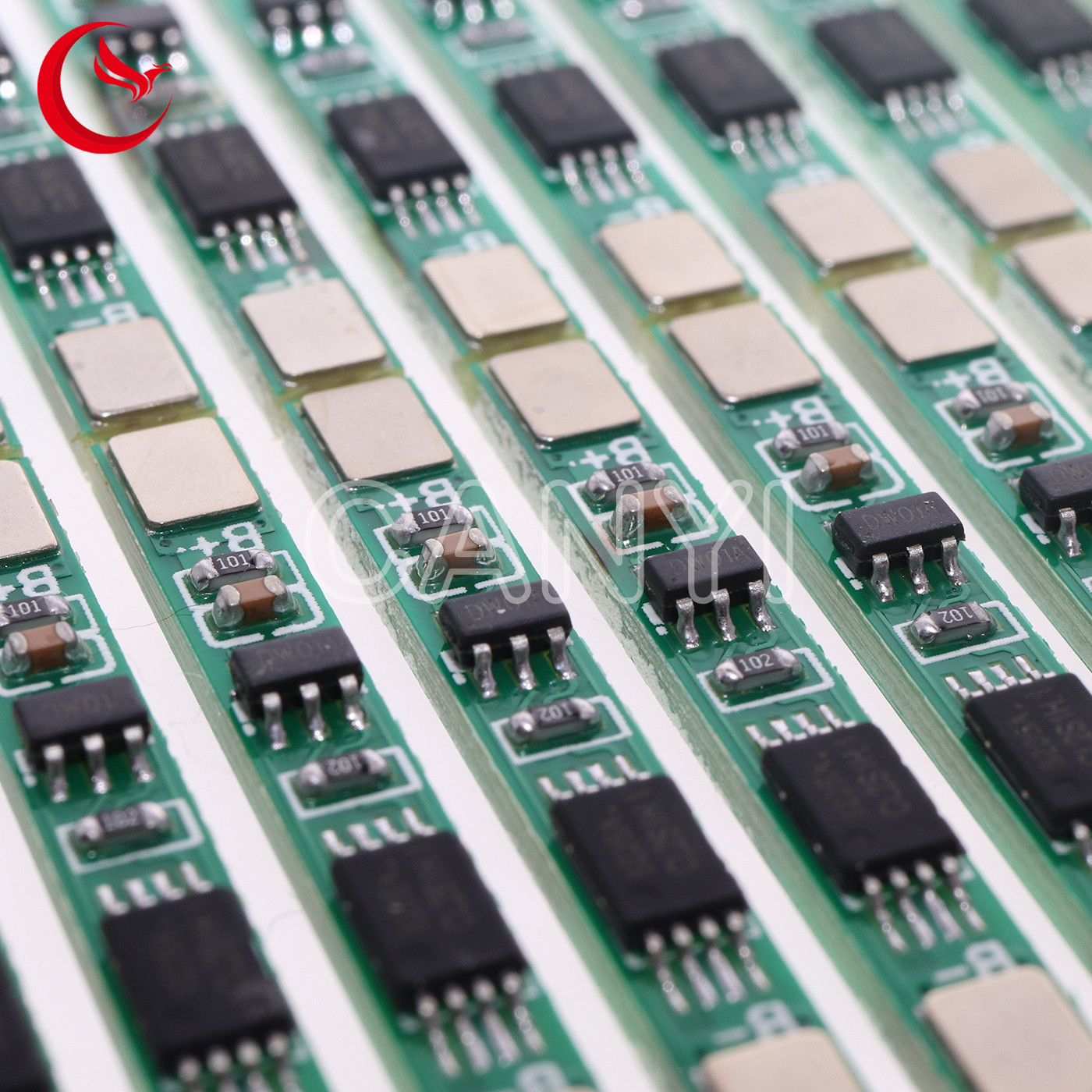

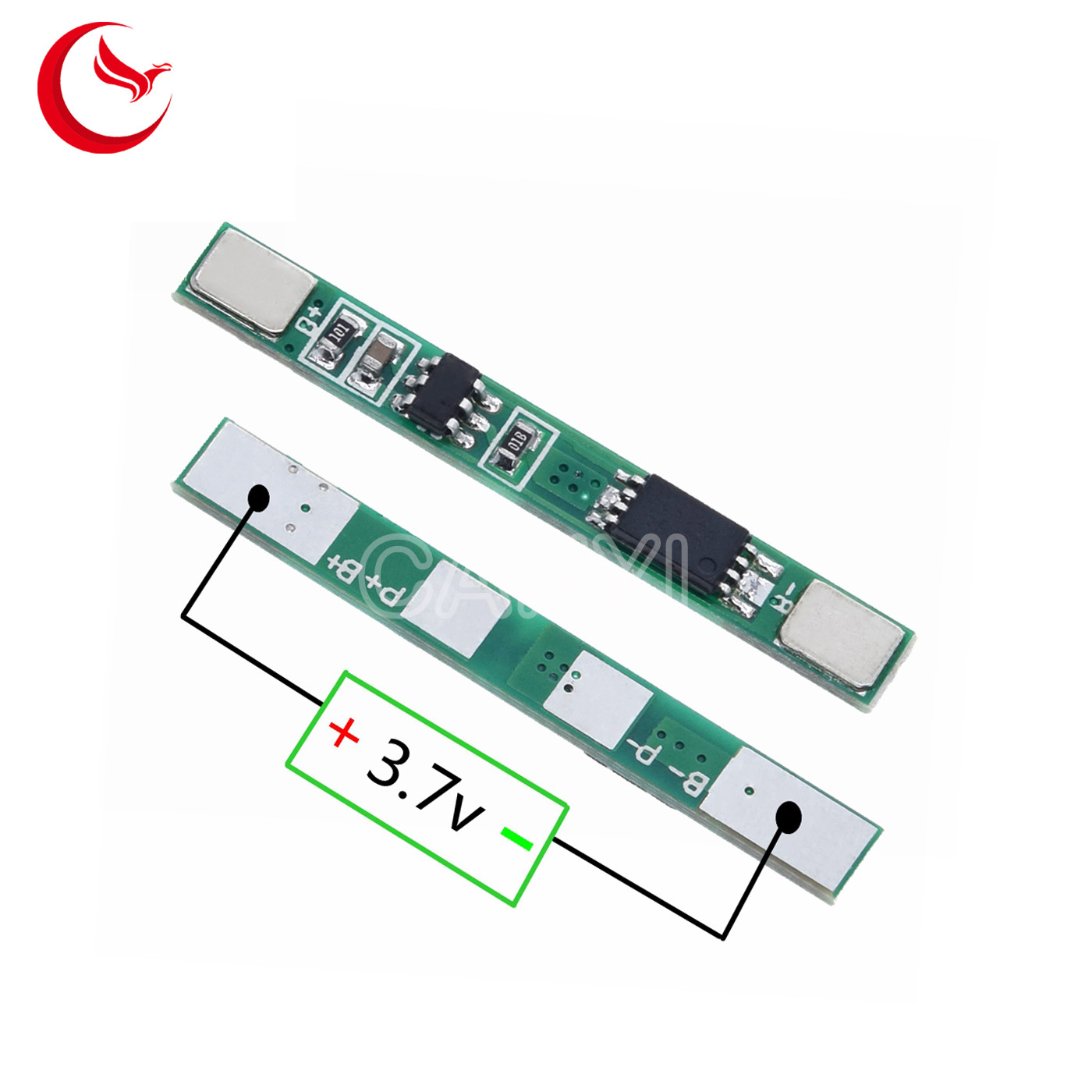

1S 3.7V 3A printed circuit board pcb li-ion BMS PCM battery protection board pcm for 18650 lithium battery
The main IC uses the original Fujing imported components. With overcharge, over discharge, over current, short circuit and other protection functions, for a variety of shapes of various shapes 3.7V lithium battery. It has excellent design, fine workmanship and comprehensive test. It is small in size and suitable for many applications requiring high integration and low cost. It can meet various performance requirements and ensure the absolute safety and reliability of the battery pack.
electronics circuit board features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, load short circuit);
4) MOS transistor can control the battery charge and discharge;
flex pcb assembly description:
The BMS is used for li-ion battery without balancing function
green pcb board application:
Overcharge protection, over discharge protection, short circuit protection, over current protection.
Paramete:
| Over charge voltage | 4.25±0.05 | V |
| Over charge release voltage | 4.23±0.05 | V |
| Over discharge voltage | 2.54±0.1 | V |
| Maximal continuous charging current | 2 | A |
| Maximal continuous Discharging current | 2 | A |
| Over current protection | 3 | A |
NOTE:
1, the store is only for sale, does not provide any technical support. With a certain electronic technology foundation, you can buy with confidence.
2.We also sell many kind of electronic products.most of them we still have not published online.so if you need anything you can cotact me.
