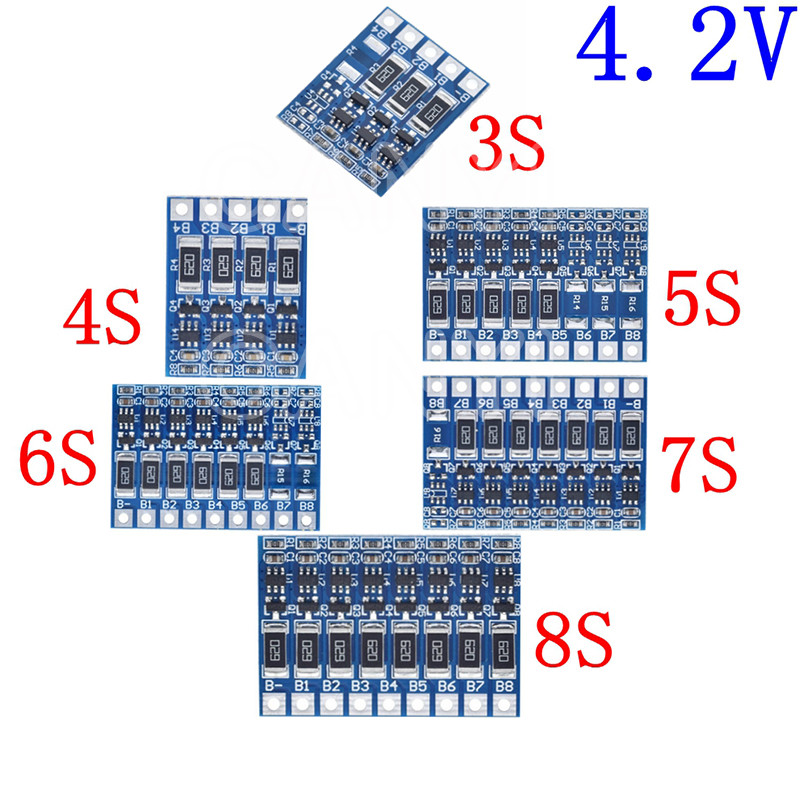

3S 4S 5S 6S 7S 8S 21V 4.2v 18650 li-ion full charge battery Balance Function Protection Board printed circuit assembly
Product description:
3S
The balance board is suitable for the li-ion battery pack without balance functions,so as to equalizing charge lithium battery charge function, make the battery pack each series charge at the same time.
Parameter:
Balance Voltage for each single cell: 4.2V
Balance current for each single cell :66mA
3S Cnnection instruction:
B4+ Without connection
B3+ Connect battery positive;
B2+ Connect the point between battery 1 and battery 2;
B1+ Connect the point between battery 2 and battery 3;
B- Connect battery negative;

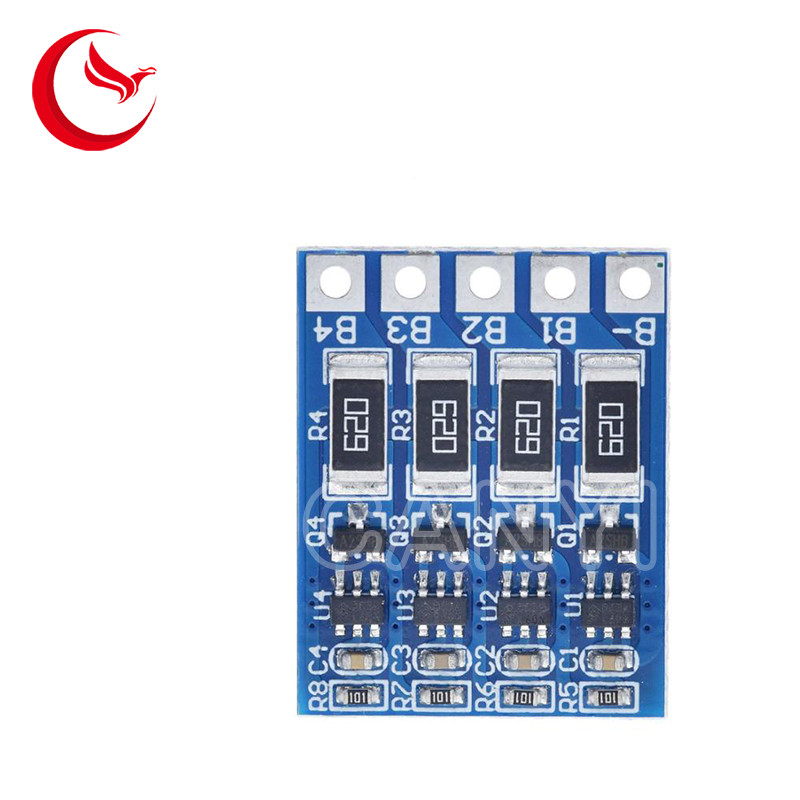

4S 4.2V
The balance board is suitable for the li-ion battery pack BMS WHICH without balance function,so as to equalizing charge lithium battery charge function, make the battery pack each series charge at the same time.
Note:The balancing board must need BMS to use together,and the BMS is without balancing function
Parameter:
Balance Voltage for each single cell: 4.2V
Balance current for each single cell :66mA
4S Cnnection instruction:
B4+ Connect battery positive;
B3+ Connect the point between battery 1 and battery 2;
B2+ Connect the point between battery 2 and battery 3;
B1+ Connect the point between battery 3 and battery 4
B- Connect battery negative;
5S Solder Joint Description:
B - Connect the negative of the battery pack
B1 Connect the battery 1 to the contacts in battery 2
B2 Connect the battery 2 to the contacts in battery 3
B3 Connect the battery 3 to the contacts in battery 4
B4 Connect the battery 4 to the contacts in battery 5
B5 Connect the battery pack positive

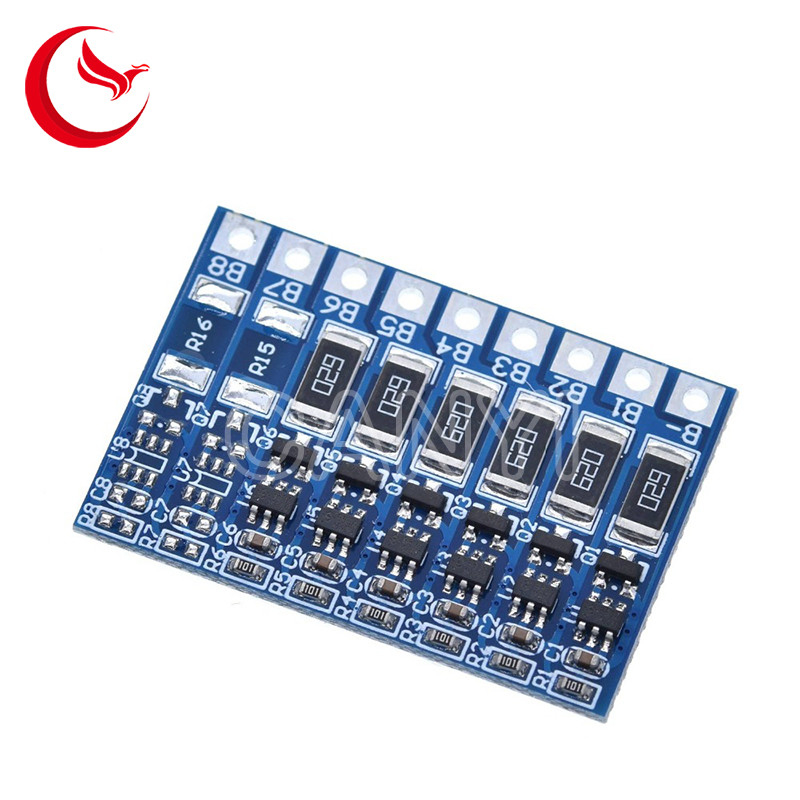

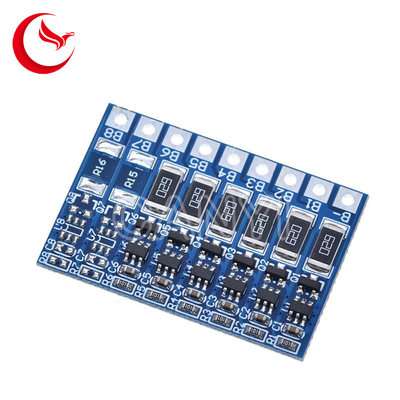

6S Solder Joint Description:
B - Connect the negative of the battery pack
B1 Connect the battery 1 to the contacts in battery 2
B2 Connect the battery 2 to the contacts in battery 3
B3 Connect the battery 3 to the contacts in battery 4
B4 Connect the battery 4 to the contacts in battery 5
B5 Connect the battery 5 to the contacts in battery 6
B6 Connect the battery pack positive
7S Solder Joint Description:
B - Connect the negative of the battery pack
B1 Connect the battery 1 to the contacts in battery 2
B2 Connect the battery 2 to the contacts in battery 3
B3 Connect the battery 3 to the contacts in battery 4
B4 Connect the battery 4 to the contacts in battery 5
B5 Connect the battery 5 to the contacts in battery 6
B6 Connect the battery 6 to the contacts in battery 7
8S Features:
4.2V balanced voltage, balanced current is 66mA;
Product Size: 37.3 * 25.8 * 2.4mm
Solder Joint Description:
B - Connect the negative of the battery pack
B1 Connect the battery 1 to the contacts in battery 2
B2 Connect the battery 2 to the contacts in battery 3
B3 Connect the battery 3 to the contacts in battery 4
B4 Connect the battery 4 to the contacts in battery 5
B5 Connect the battery 5 to the contacts in battery 6
B6 Connect the battery 6 to the contacts in battery 7
B7 Connect the battery 7 to the contacts in the battery 8
Choose Canyi to get more benefit:
Our fast delivery time can be in just one to two weeks for urgent demands. Providing customers with flexible, safe and efficient logistics services.For a electronic information base component supplier, contact us today.
