Type:	Lithium Battery Charger Protection Board	Package:	DIP
Shipping By:	DHL\UPS\Fedex\EMS\HK Post	Lead Time:	7-12days
Application:	Battery	OEM:	Can Bu Customized Here
High Light:	Lithium Battery Pcb Board Ssembly , Phosphate Battery Electronic Pcb Board , Phosphate Battery Protection Board

Product Description

We accept customers' customization. Please provide us with your product details for our evaluation.

1. Please refer to this link for classic products:

http://www.zd_schottkysignal.com/sale-13277422-12-6v-3s60a-bms-led-pcb-board-assembly-for-battery-charger.html

12.6V 3S60A BMS led pcb board design for 18650 Li-ion Battery Charger Protection Board pcb assembly prototype service

The same series of products can be obtained.

Description:

Scope of application: Suitable for lithium batteries with nominal voltage of 3.7V and full voltage of 4.2V (including 18650, 26650, polymer lithium batteries, withoutlimitation of shape and size)
Charging Voltage: 12.6V~13.6V
Continuous discharge current (upper limit): 60A ( if the heat dissipation environmentis not good, please reduce the use of load current )
Continuous charging current (upper limit): 10A
Enhanced version: suitable for electric drills with starting current below 120A and power below 260W
Balanced version: suitable for electric drills with starting current below 120A and power below 260W, with balanced charging function
Product Size: 41*55*3.4mm (Enhanced Version) 41*62*3.4mm (Balanced Version)
Product weight: 8.8g (enhanced version) 9.8g (balanced version)

Conditions for successful start of electric drill:

Successfully start the drill requires 3 10C-20C power batteries, or 6 5C-10C power batteries
Using 0V and 12.6V connection wires, choose copper wires of 4mm² or more, the shorter the better
Strictly connect 0V, 4.2V, 8.4V, 12.6V,16.8V according to the diagram. Do not touch any components on the board when soldering the wire. Do not intentionally short circuit./Do not deliberately make it short circuit.
Do not mix the good battery and the battery.

For more details please contact us or refer to the link attached.

2. Product information on this page:

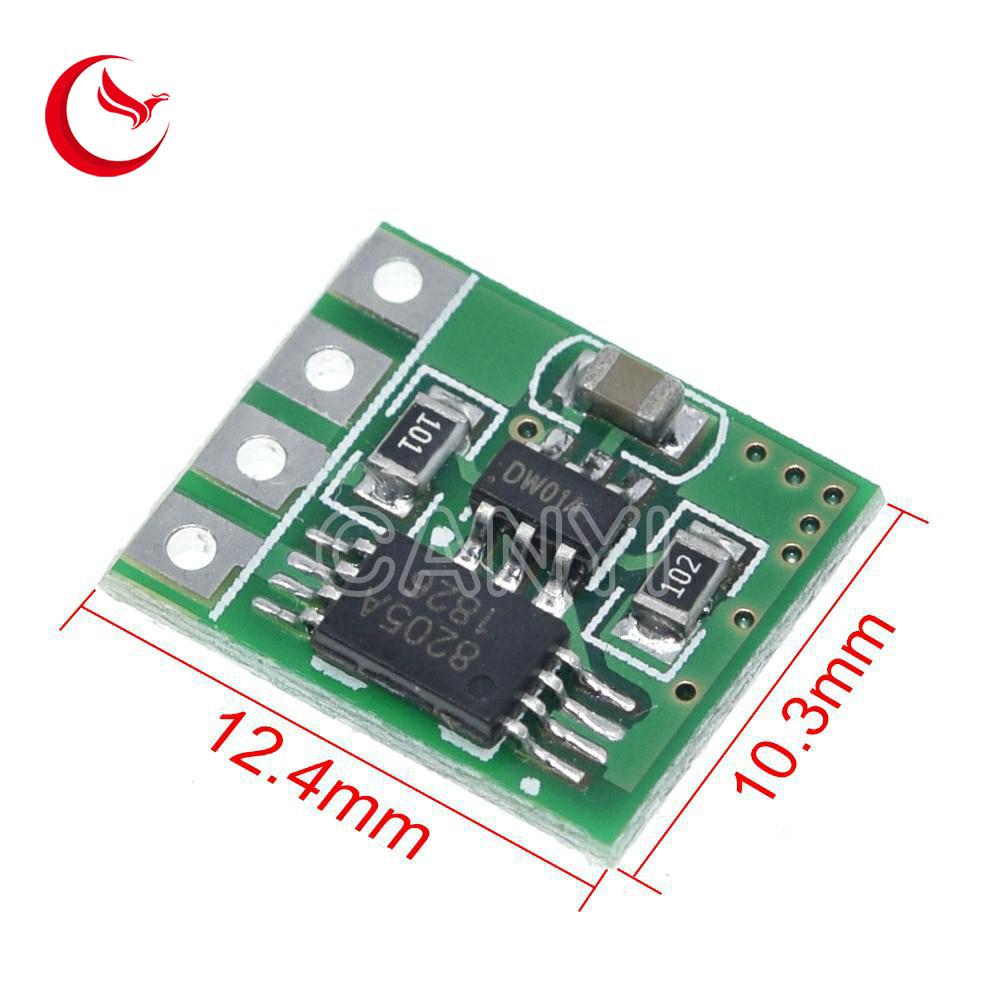

Size: approx.12.4*10.3*3mm

Protect single 3.7V lithium battery:

Protect multiple 3.7V lithium batteries(no more than 10pcs recommended):

DIY mobile power(This application you need DD05CVSA

Welcome to customize the circuit board you need.

Tag:

Place of Origin:	Guangdong, China
Brand Name:	CANYI
Certification:	RoHS
Model Number:	CY-D004CPMA

Minimum Order Quantity:	500PCS
Price:	Negotiated
Packaging Details:	Dimensions per Unit:196.321 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 423324 centimeter• Export Carton Weight:3 Kilograms
Delivery Time:	15-20 days
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	10,000PCS Per Day

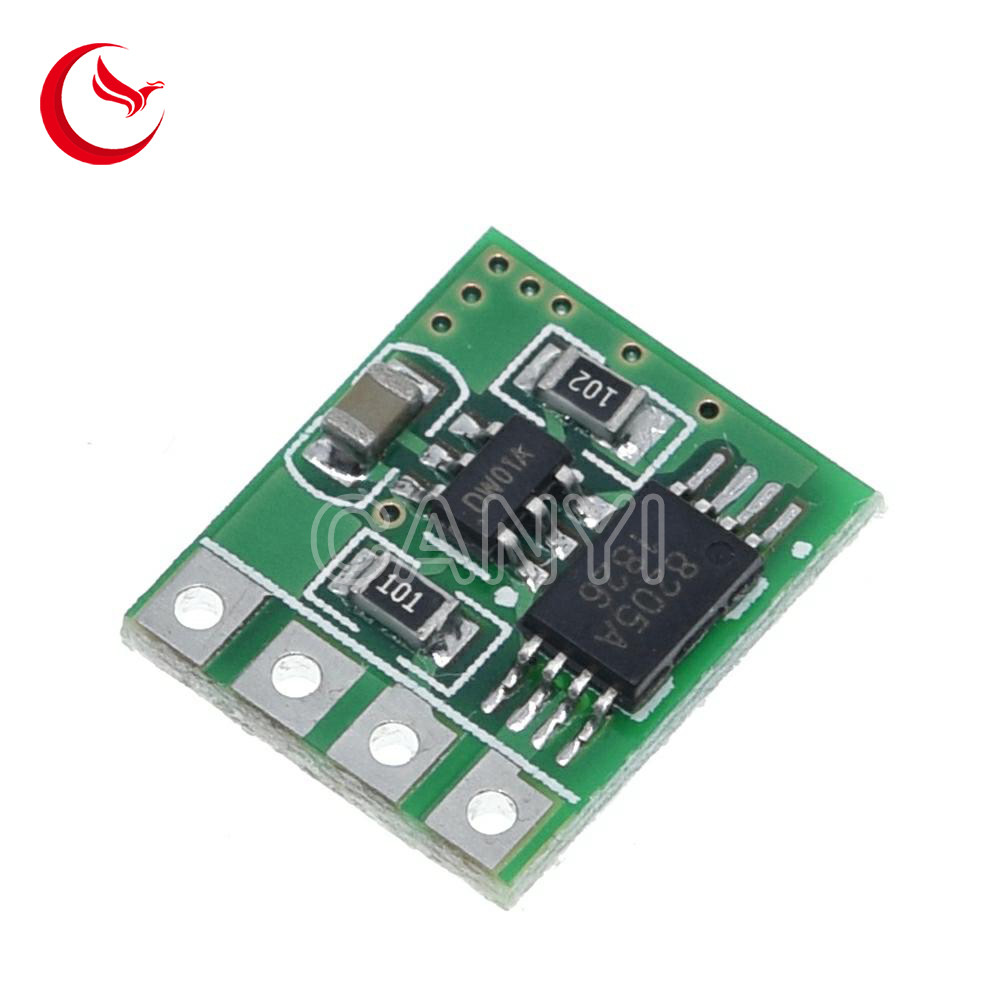

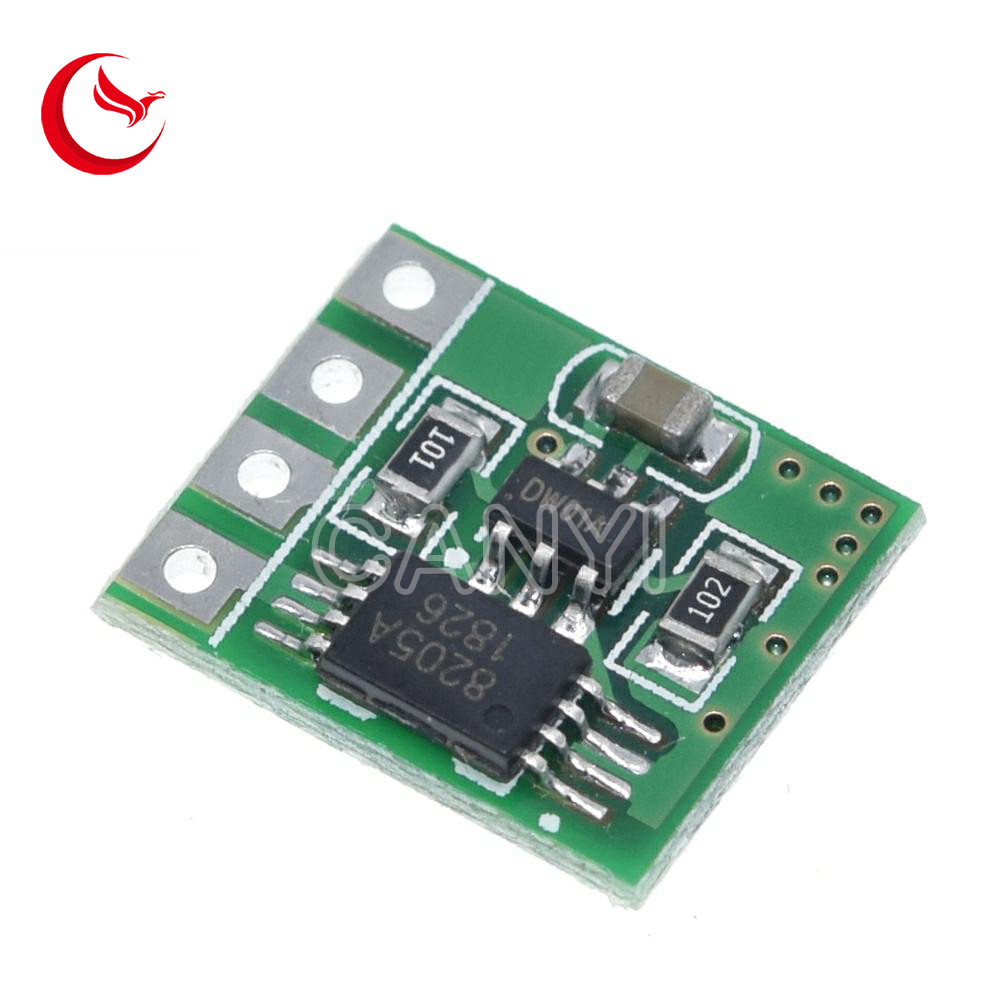

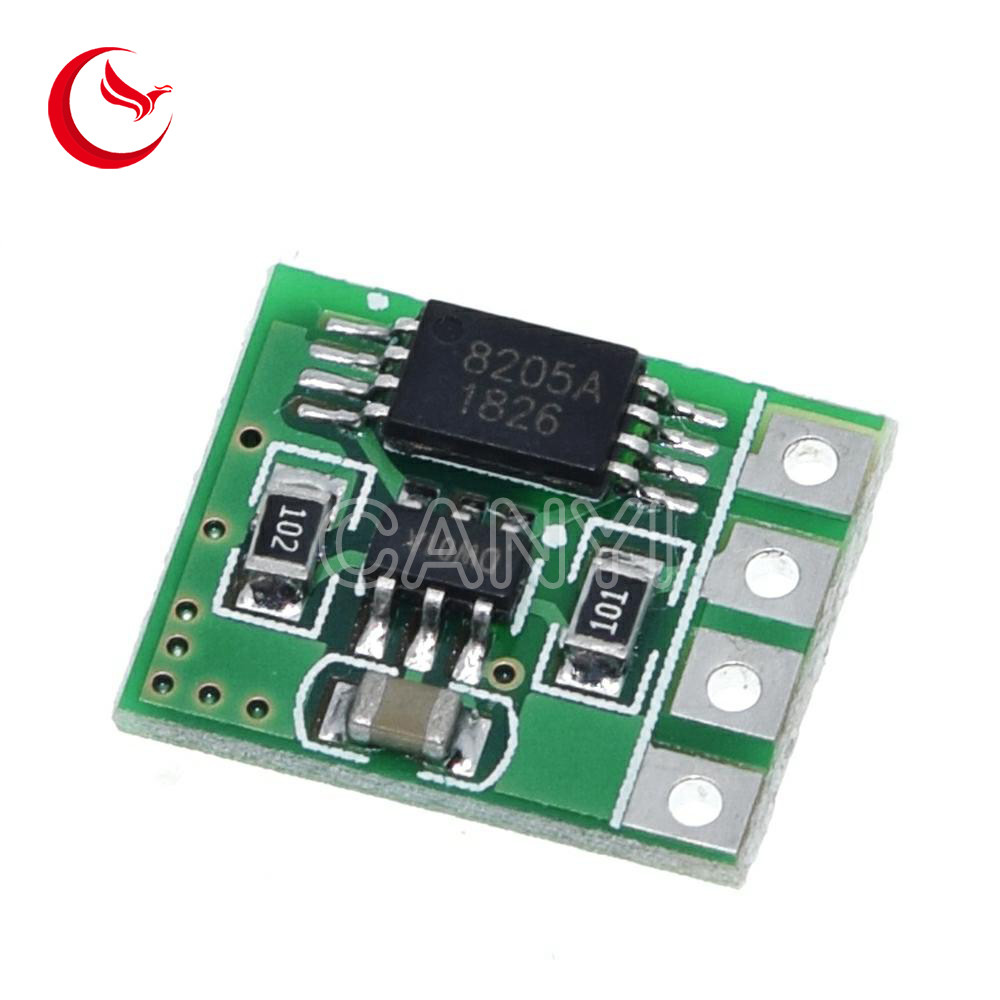

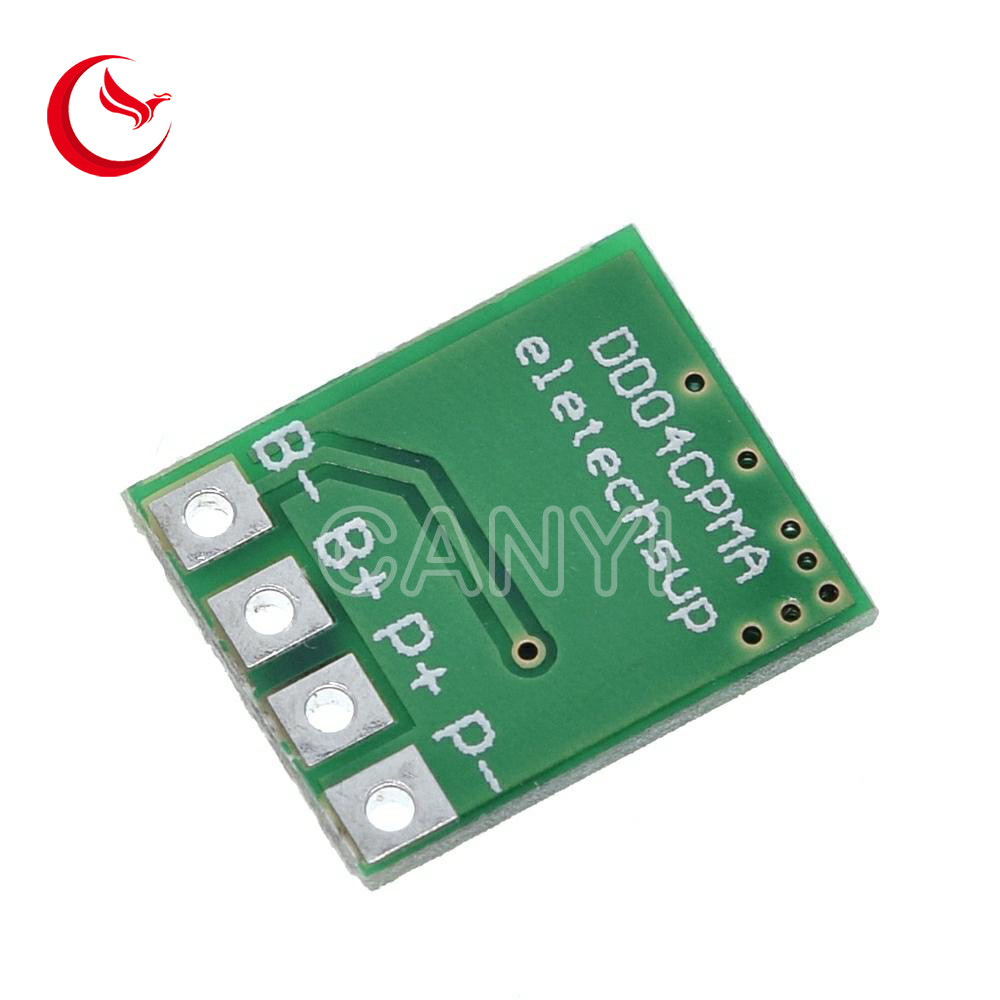

Cutomized new board 3.7V 4.2V 3A Li-ion Lithium Battery Charger Over Charge Discharge Overcurrent Protection Board

Lithium Battery Pcb Board Ssembly
