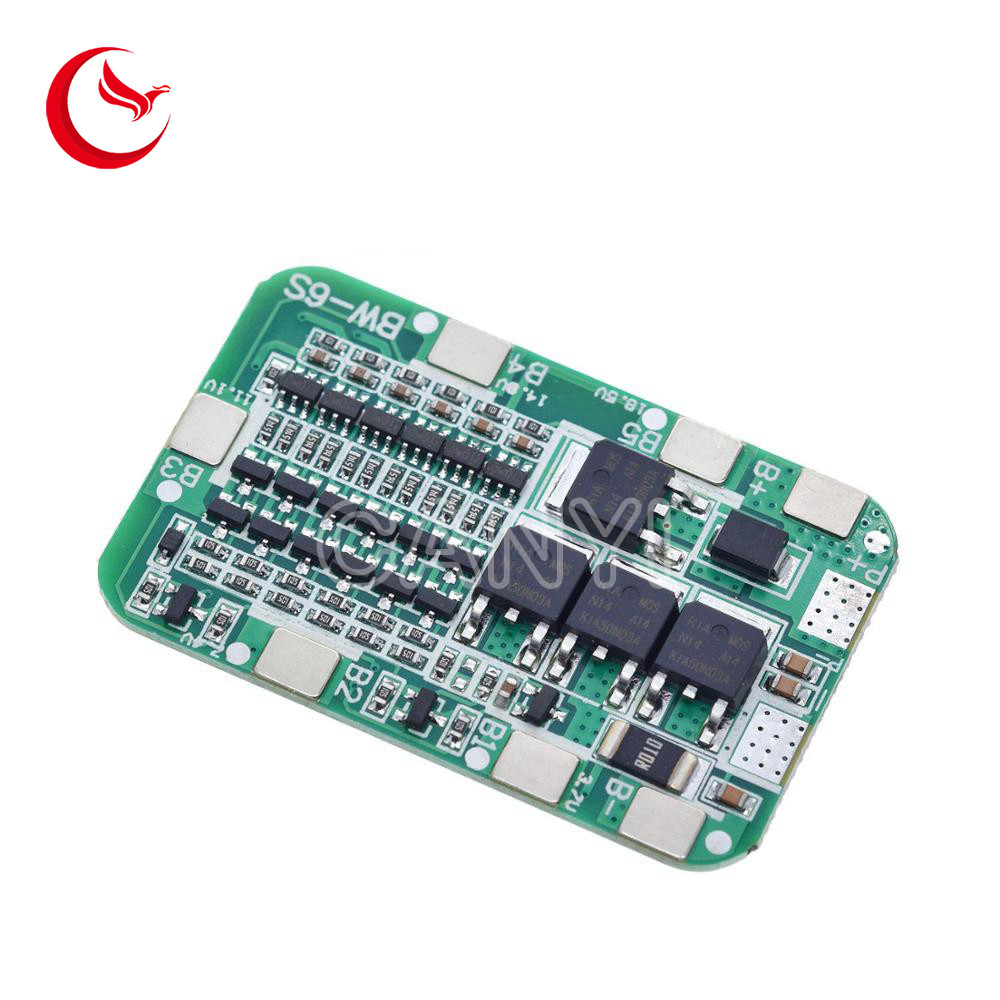

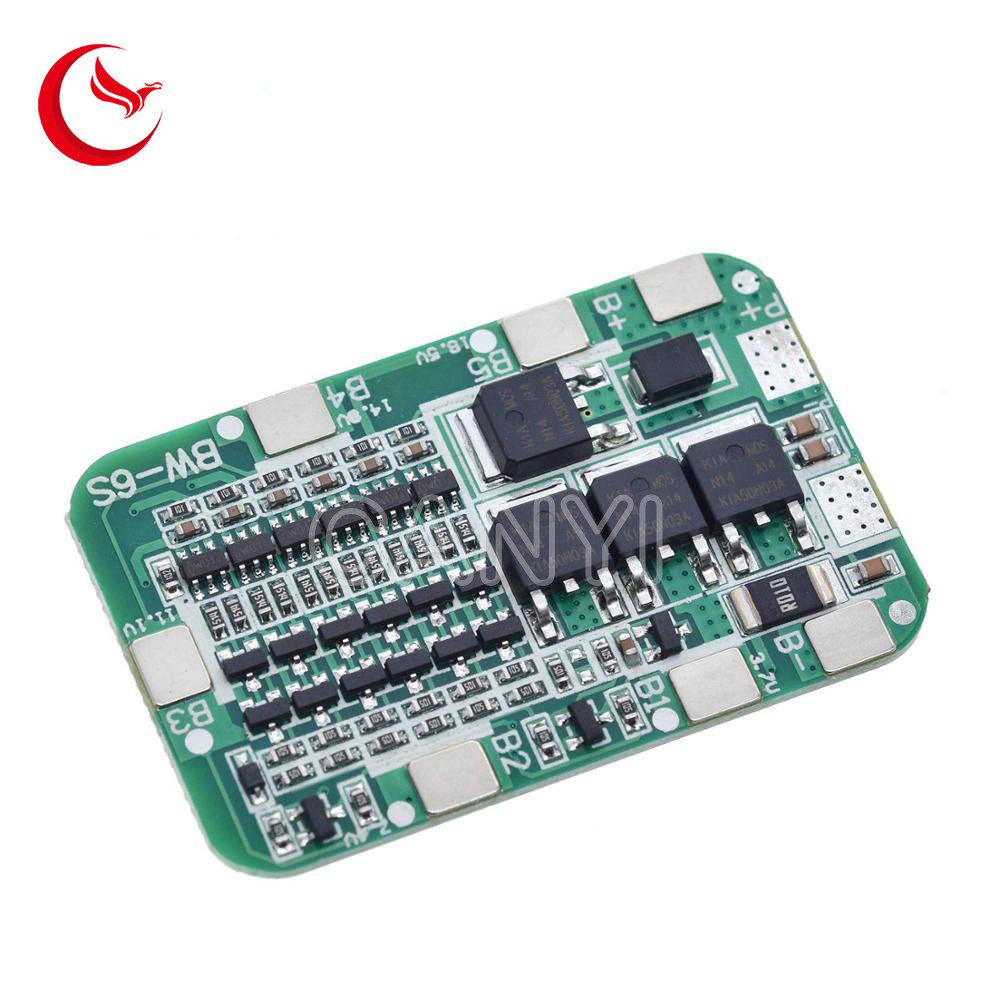

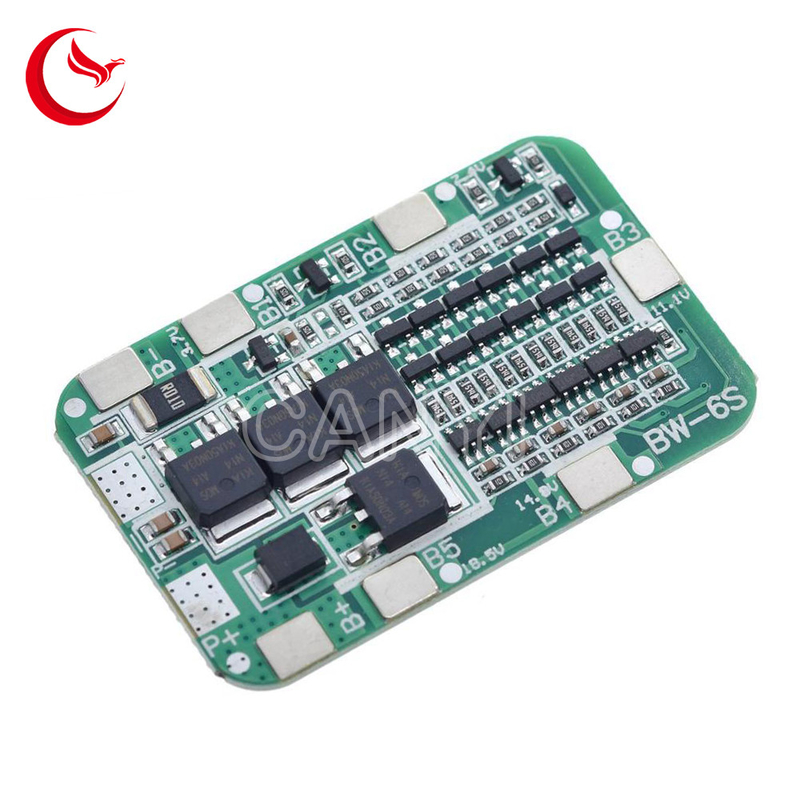

6S 15A 24V PCB BMS Protection Board For 18650 Li Ion Cell pc board assembly

Basic Information
Place of Origin: Guangdong, China
Brand Name: CANYI
Certification: RoHS
Model Number: CY-BW-6S
Minimum Order Quantity: 500PCS
Price: Negotiated
Packaging Details: Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms
Delivery Time: 15-20 days
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 10,000PCS Per Day
Detail Information
Type: Lithium Battery Charger Protection Board Package: DIP
Shipping By: DHL\UPS\Fedex\EMS\HK Post Lead Time: 7-12days
Application: Battery OEM: Can Bu Customized Here
High Light:

24V PCB BMS Protection Board

,

15A PCB BMS Protection Board

,

18650 Li-ion Cell Protection Board


Product Description

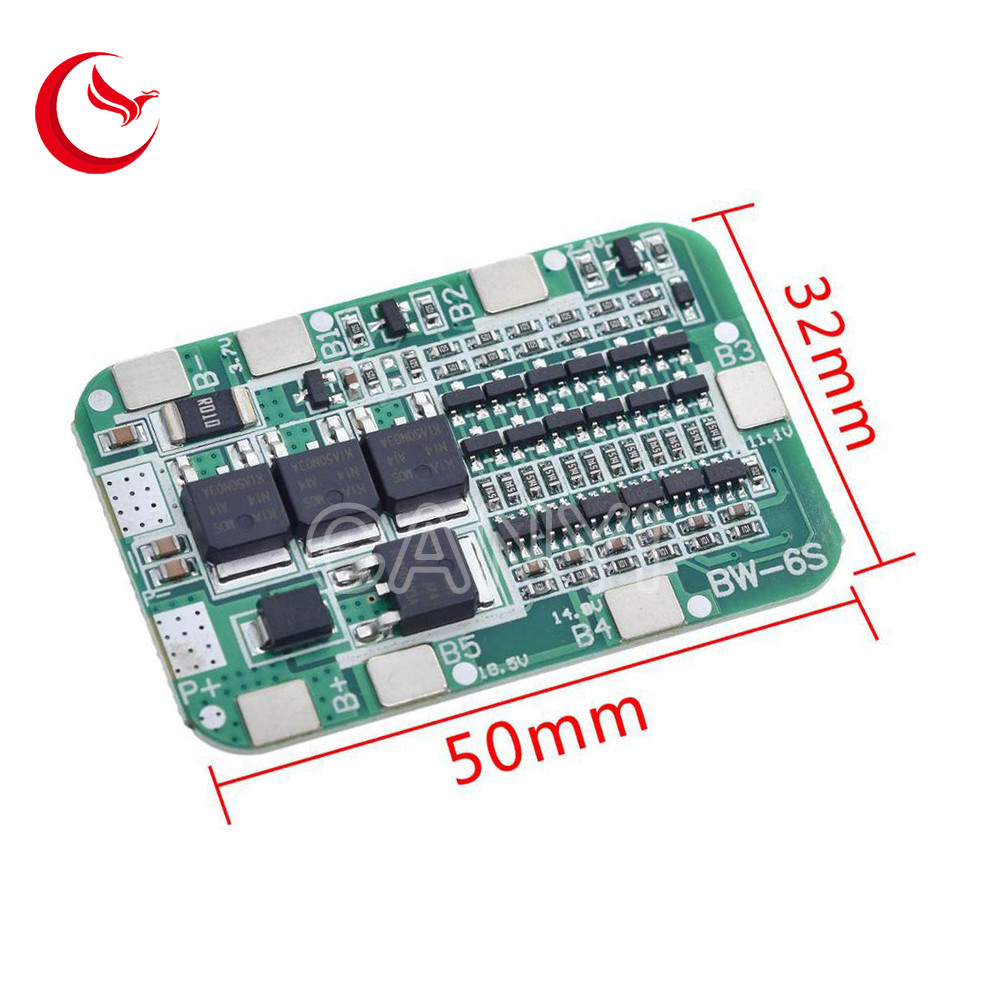

Size: approx.50*30*2mm
Lampshift maximum discharge current: 15A
Instantaneous discharge current: 25A
Charging voltage: 25.5V
Charging current: 15A (MAX)
Overcharge detection voltage: 4.28 ± 0.05V
Overcharge protection delay: 0.1S
Overcharge release voltage: 4.08 ± 0.05V
Over discharge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 0.1S
The overdischarge release voltage: 2.9 ± 0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 9MS
Overcurrent protection current: 30 ± 3A
Overcurrent protection release condition: Disconnect the load
Short circuit detection delay: 250uS
Short circuit protection Release condition: disconnect negative open
Main circuit conduction resistance: ≤20mΩ
Working current: ≤30uA
Sleep current (battery over discharge) ≤10uA
Temperature range: -30 / + 80 ℃


Feature:


Fine workmanship and durable.
For the rechargeable (generally refers to the lithium battery) from the protection of the integrated circuit board. Lithium battery (rechargeable type) so need protection.
As the lithium battery itself determines the material itself can not be overcharge, over discharge, overcurrent, short circuit and ultra-high temperature charge and discharge, so lithium battery lithium components will always follow a protective resistor with a sampling resistor and a current fuse.


Note:

Please allow 1-5mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.



Package included:


1PCS 6S15A Lithium protection board


6S 15A 24V PCB BMS Protection Board For 18650 Li Ion Cell pc board assembly 06S 15A 24V PCB BMS Protection Board For 18650 Li Ion Cell pc board assembly 1

Welcome to customize the circuit board you need.
