| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-544 |
| Minimum Order Quantity: | 3000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Self Consuming Current: | 12-24uA | Equilibrium Start-up Voltage: | 4.18-4.23V |
|---|---|---|---|
| Balanced Current: | 95-105mA | Continuous Working Current: | 60A |
| Continuous Output Power: | 756W | Ambient Temperature: | -40~+85℃ |
| High Light: | 12.6V Led Pcb Board Assembly,BMS Led Pcb Board Assembly,3S60A Circuit Board Assembly |
||
12.6V 3S60A BMS led pcb board design for 18650 Li-ion Battery Charger Protection Board pcb assembly prototype service
Description:
Conditions for successful start of electric drill:

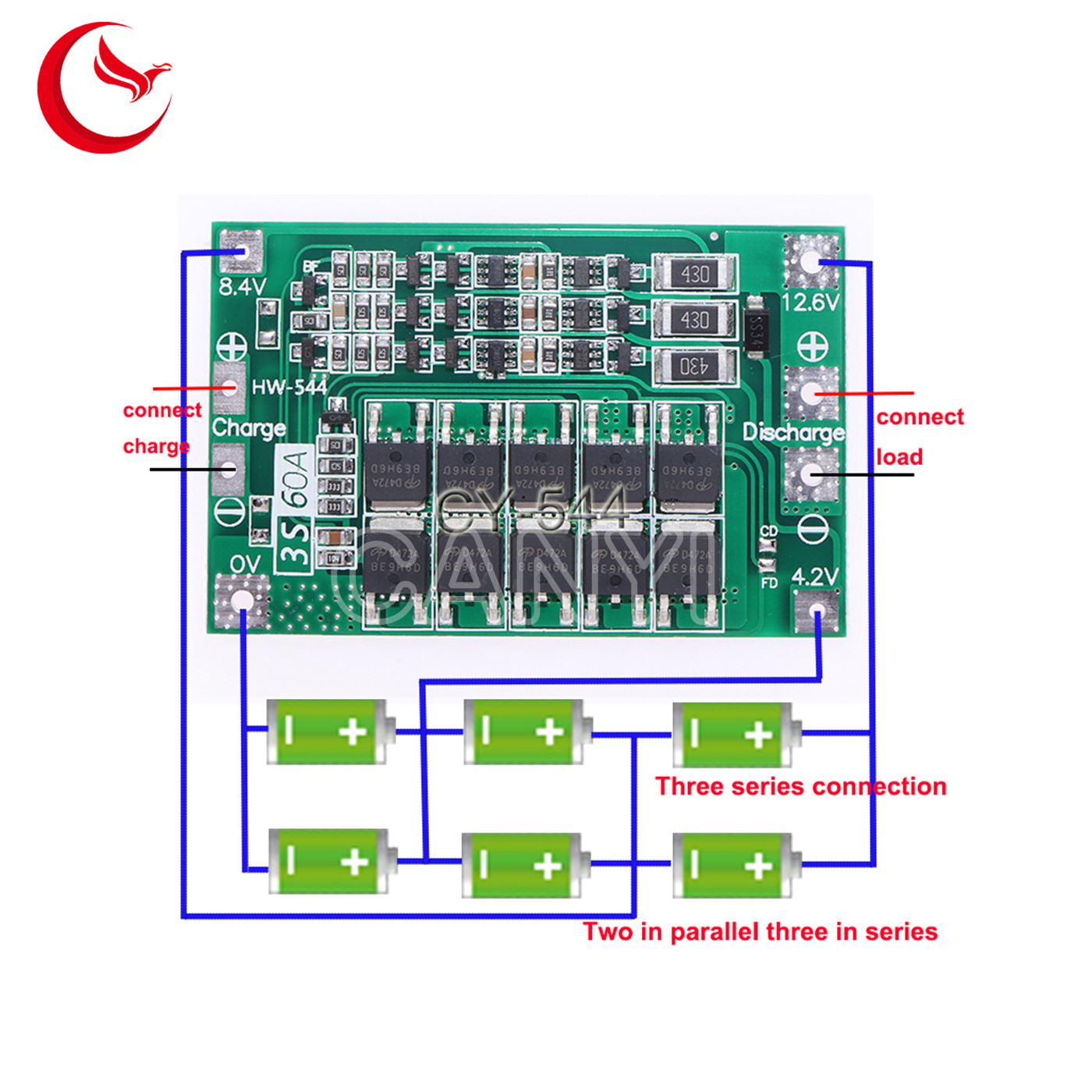

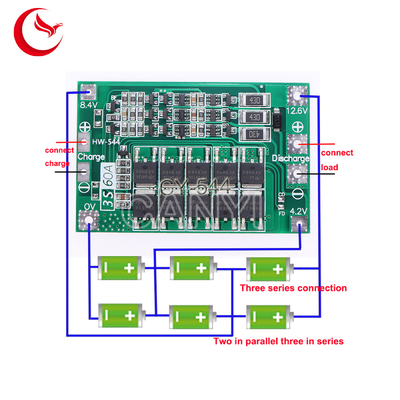

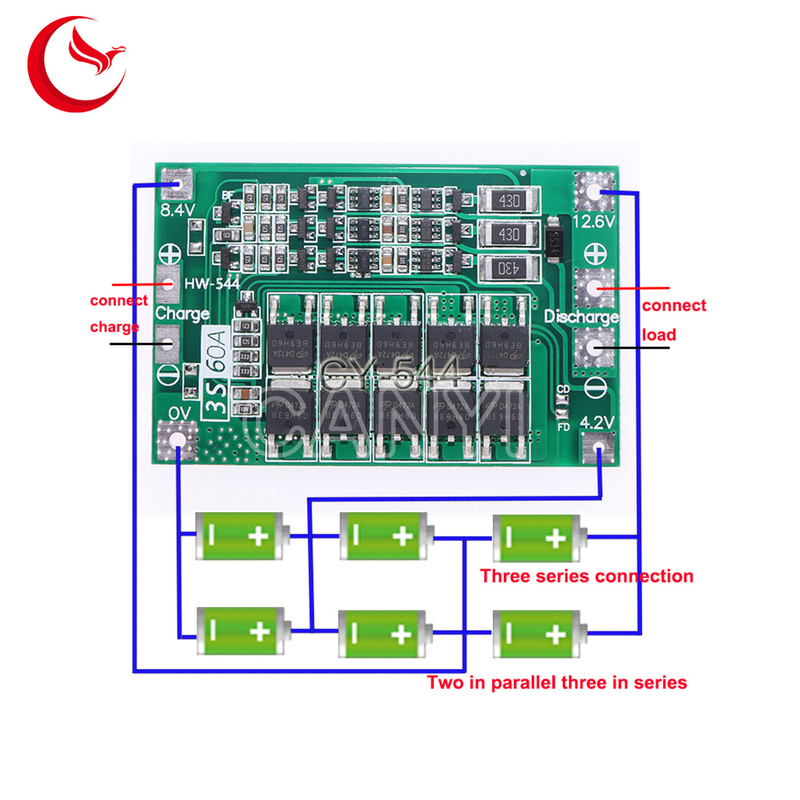

Strictly connect 0V, 4.2V, 8.4V, 12.6V,16.8V according to the diagram. Do not touch any components on the board when soldering the wire. Do not intentionally short circuit./Do not deliberately make it short circuit.
Do not mix the good battery and the battery.
| Items | Minimum | Typical | Maximum | Unit | Remarks |
| Self consuming current | 12 | 18 | 24 | uA | |
| Overcharge protec tion voltage | 4.2 | 4.25 | 4.3 | V | |

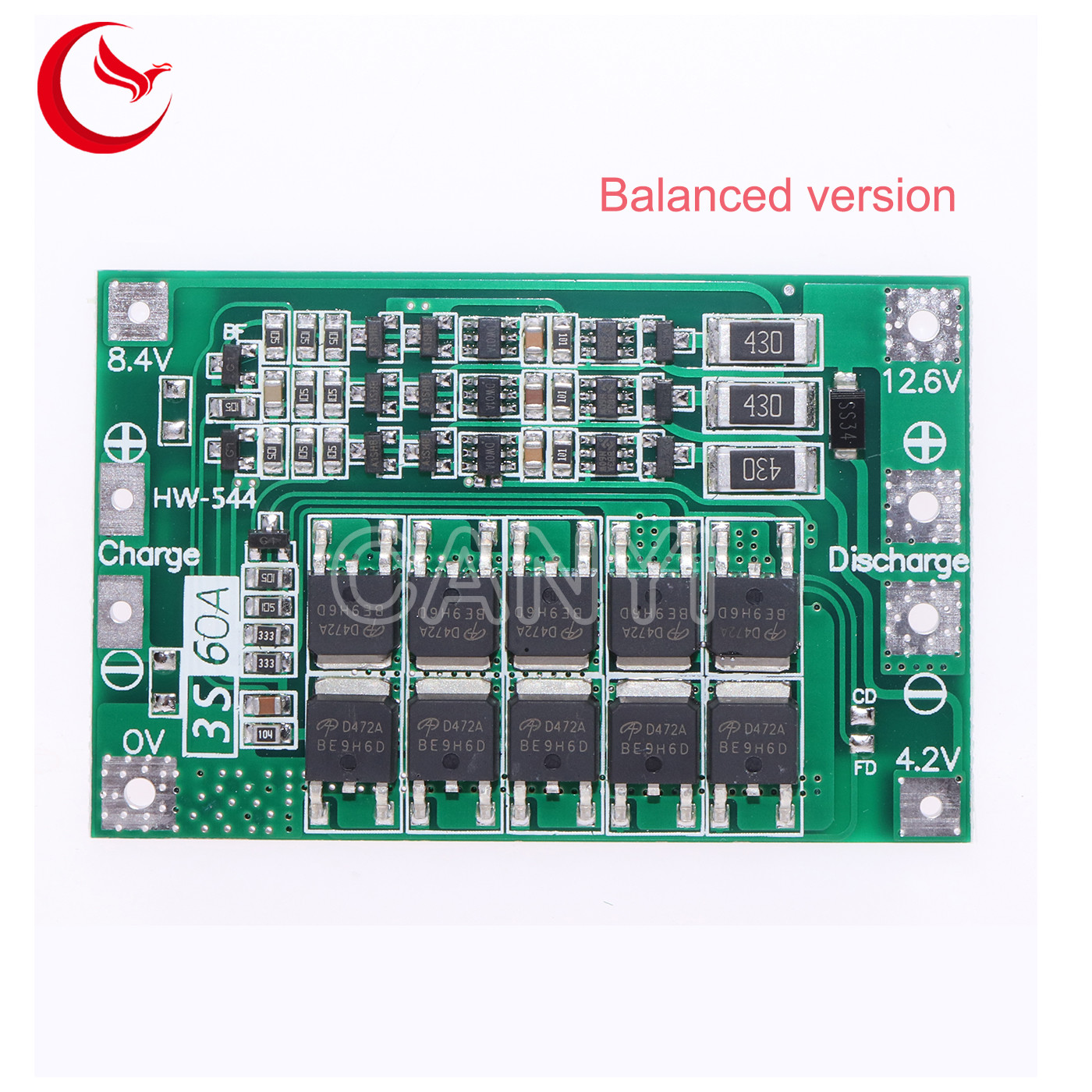

| Equilibrium start-up voltage | 4.18 | 4.2 | 4.23 | V | Balanced version |
| Balanced current | 95 | 100 | 105 | mA | |
| Equilibrium heating power | 1.17 | 1.29 | 1.43 | W | |
| Overcharge recovery voltage | 4.1 | 4.15 | 4.2 | V | |
| Over-discharge protection voltage | 2.4 | 2.5 | 2.6 | V | |
| Back-up Voltage after Over-discharge Protection | 2.8 | 3 | 3.2 | V | 1C discharge |
| Back-up Voltage after Over-discharge Protection | 3.2 | 3.5 | 3.8 | V | 2C discharge |
| Over-discharge recovery voltage | 2.9 | 3.2 | 3.3 | V | |
| Conductive internal resistance | 2 | 2.5 | 3 | mΩ | |
| Overcurrent protection current | 70 | 80 | 90 | A | |
| Overcurrent delay time | 100 | 150 | 200 | mS | |
| Continuous working current | 0 | 60 | 60 | A | Resistive load |
| Continuous output power | 0 | 756 | 756 | W | Resistive load |
| Ambient temperature | -40 | 25 | 85 |
℃
|
OEM & ODM: OEM and ODM order are welcome! We provide customized products and packaging.
We can print your Logo in our products by silk screen printing or laser printing
according to your artwork design to meet your special requirements. You can send us the
artwork by E-mail. We have a wealth of experience in Logo printing and customized packing.
