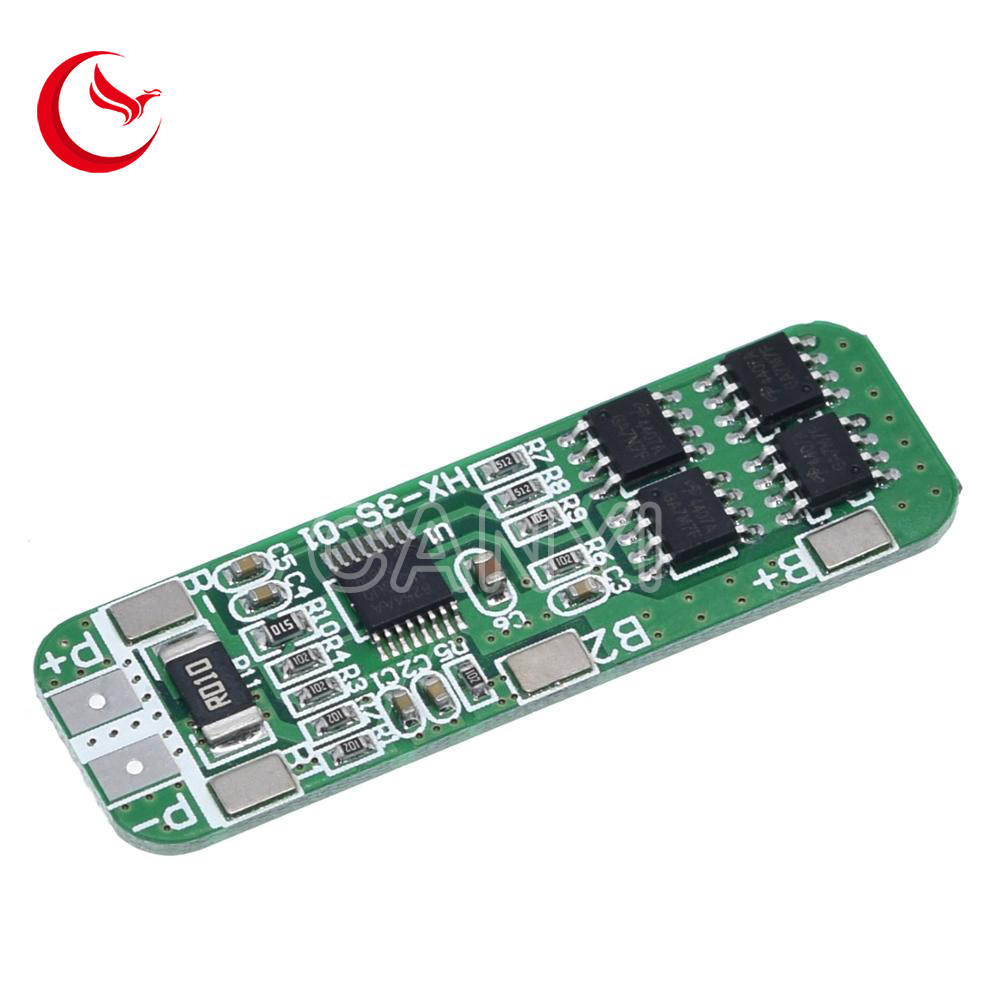

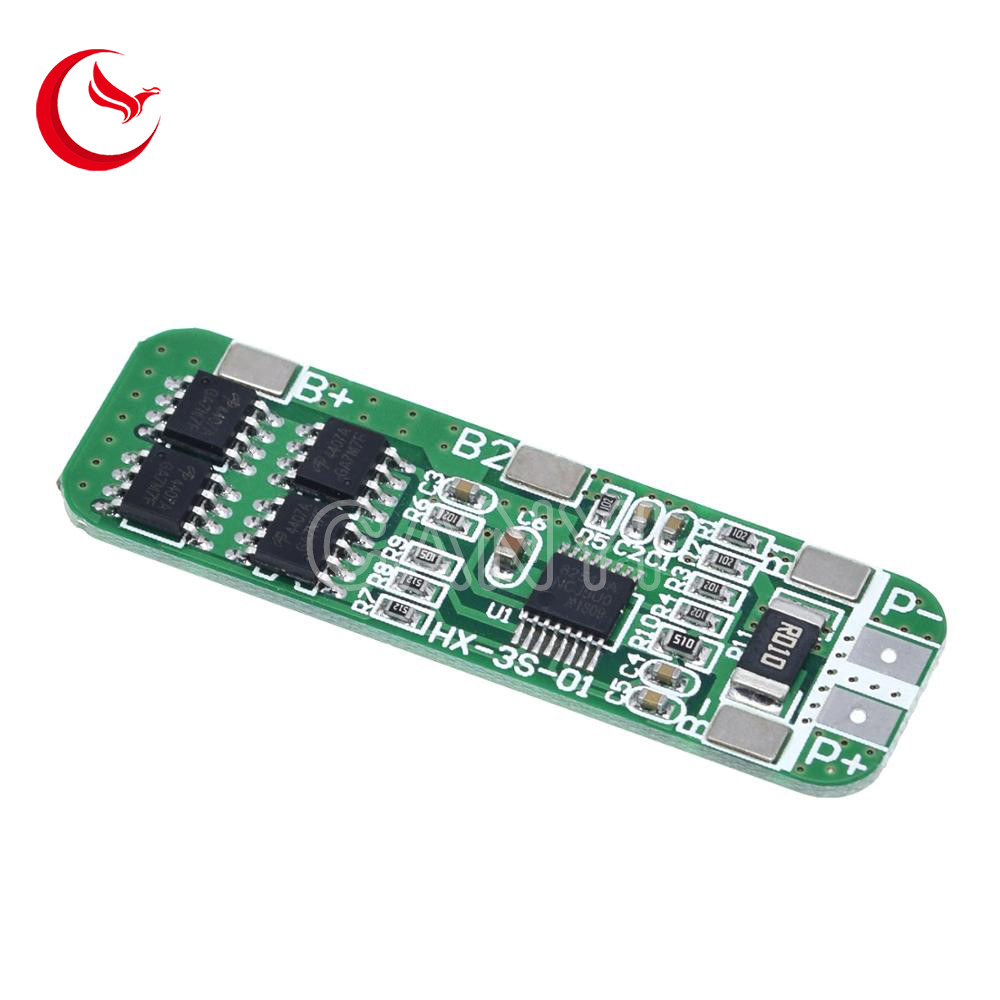

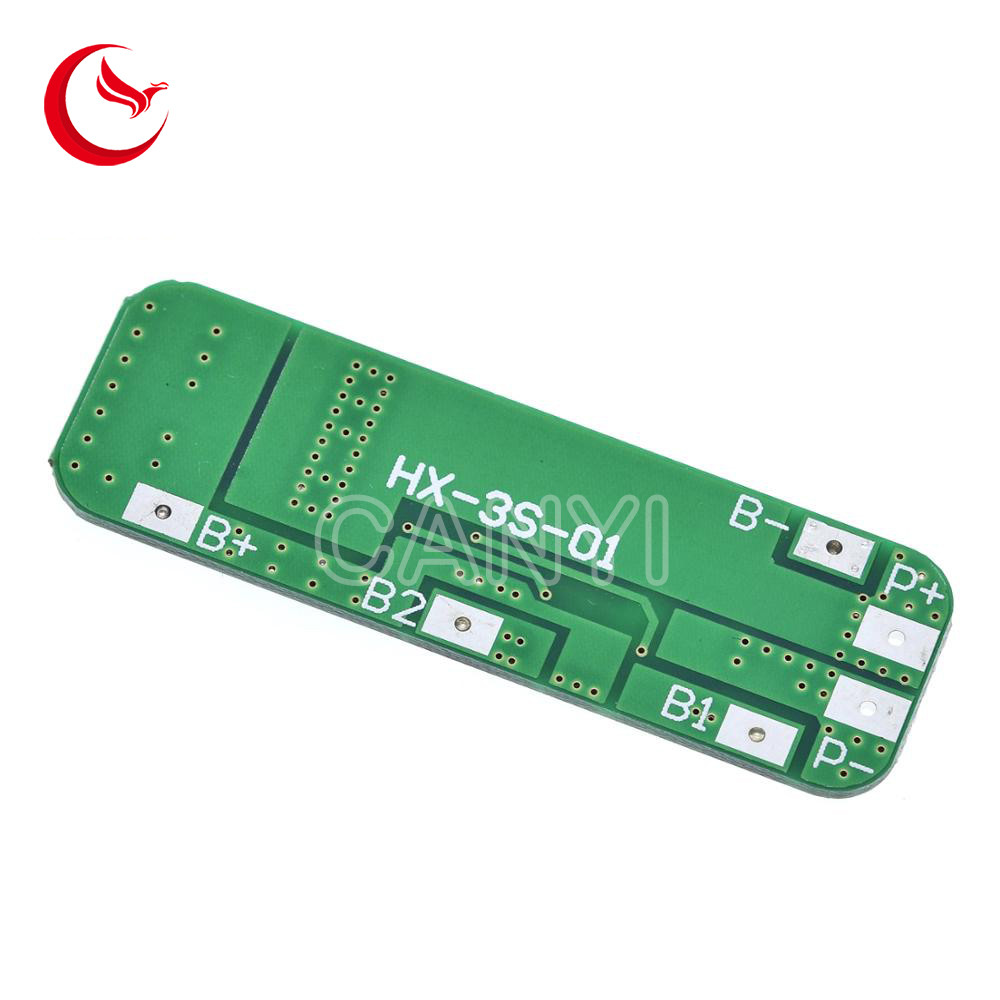

3S 6A 10.8V 11.1V 12.6V 18650 Charger Protection Board Module

Basic Information
Place of Origin: Guangdong, China
Brand Name: CANYI
Certification: RoHS
Model Number: CY-HX-3S-01
Minimum Order Quantity: 500PCS
Price: Negotiated
Packaging Details: Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms
Delivery Time: 5-7 days
Payment Terms: Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability: 10,000PCS Per Day
Detail Information
Type: Lithium Battery Charger Protection Board Package: DIP
Shipping By: DHL\UPS\Fedex\EMS\HK Post Lead Time: 7-12days
Application: Battery OEM: Can Bu Customized Here
High Light:

12.6V Charger Protection Board Module

,

18650 Charger Protection Board Module

,

Lithium Battery Pcb Board Ssembly


Product Description

Note:
The protective plate can not be used for lithium iron phosphate battery, hernia lamp, hand drill battery pack, electric fish battery, electric bicycle battery pack, buggy battery, 775 (4A) above motor, 1W fish eye LED lamp, Please pay attention to the combined purchase of customers! .

The product is suitable for the following products:
Power Inverter, Massager Battery Pack, LED Lamp Standby Power Supply, Electronics, Solar Street Light Battery Pack, Monitoring Standby Power Supply, and more.

Note: 3A current discharge products, battery discharge rate to 3C above.
Rate calculation formula: 1C rate of battery, 2000 capacity is equal to 2AH * 1 = 2A maximum operating current.

3C rate of battery, 2000 capacity is equal to 2AH * 3 = 6A maximum operating current.
In use, the battery will heat is not applicable to battery magnification, this situation can not be long-term use, the battery will soon be damaged.

Note:

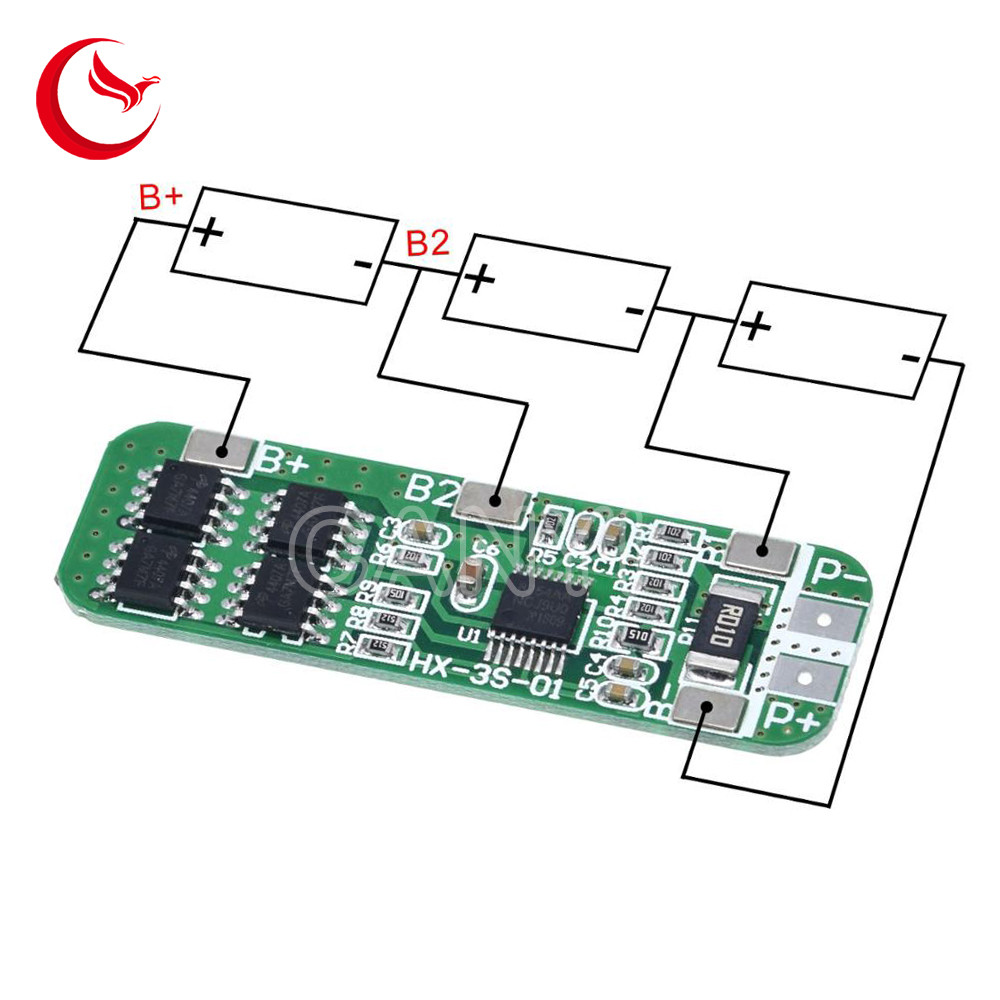

1: Strictly according to the diagram wiring 0V (B -), 3.7V (B1), 7.4V (B2), 11.1V (B3), 14.8V (B +), do not short!

2: Need to charge after connecting the line, will have output.

3: 4 batteries in series, please ensure that each battery voltage is the same, if not the same, please fill each battery separately and then use in series. During the discharge test, the battery whose voltage dropped quickly was a bad battery.

Tip: Do not mix good batteries with bad batteries! The capacity / internal resistance of the 4 batteries is as close as possible! (2 good batteries + 2 bad batteries = 4 bad batteries).

Lithium battery protection board parameters:

Model: Long CY-HX-4S-A01 / Short CY-HX-3S-01

Long section size: 72.5 * 18 * 3.0mm

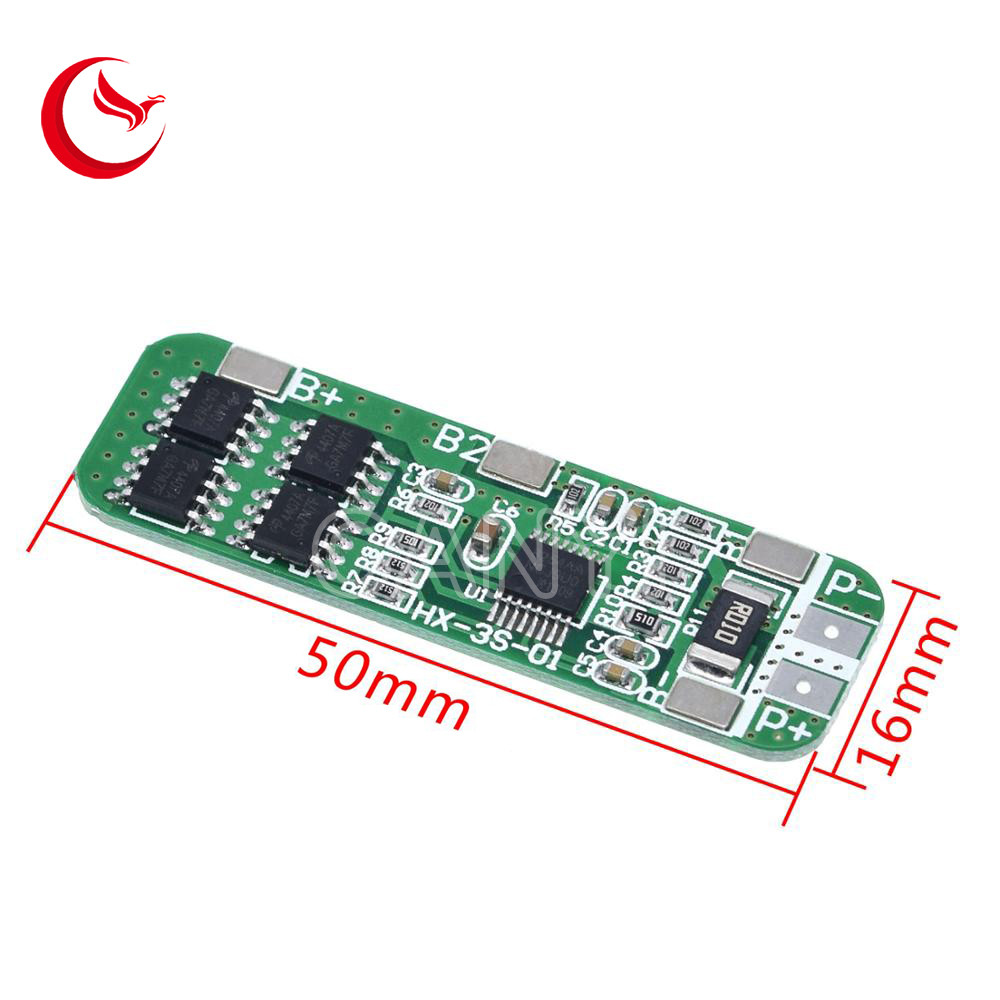

Short paragraph size: 50* 16 * 3.0mm

Overcharge voltage range: 4.25-4.35v ± 0

Over discharge voltage range: 2.3-3.0v ± 0.05v

Upper limit working current: 6-8A

Upper limit instantaneous current: 12A

Quiescent current: less than 30uA

Internal resistance: less than 100mΩ

Charging voltage: 16.8V-17V

Operating temperature: -40 --- +50 ℃

Storage conditions: -40-- +80 ℃

Effective life: more than 50,000 hours

Short circuit protection: can be protected, need to restore the charge

Protection board components: Components for the S-8254AA protection chip and AO4407 * 4.
