| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-HX-2S-A10 |
| Minimum Order Quantity: | 500PCS |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 5-7 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 10,000PCS Per Day |
| Type: | Lithium Battery Charger Protection Board | Package: | DIP |
|---|---|---|---|
| Shipping By: | DHL\UPS\Fedex\EMS\HK Post | Lead Time: | 7-12days |
| Application: | Battery | OEM: | Can Bu Customized Here |
| High Light: | 8A Printed Circuit Board Assembly,7.4V Printed Circuit Board Assembly,2S Lithium Battery Board Assembly |
||

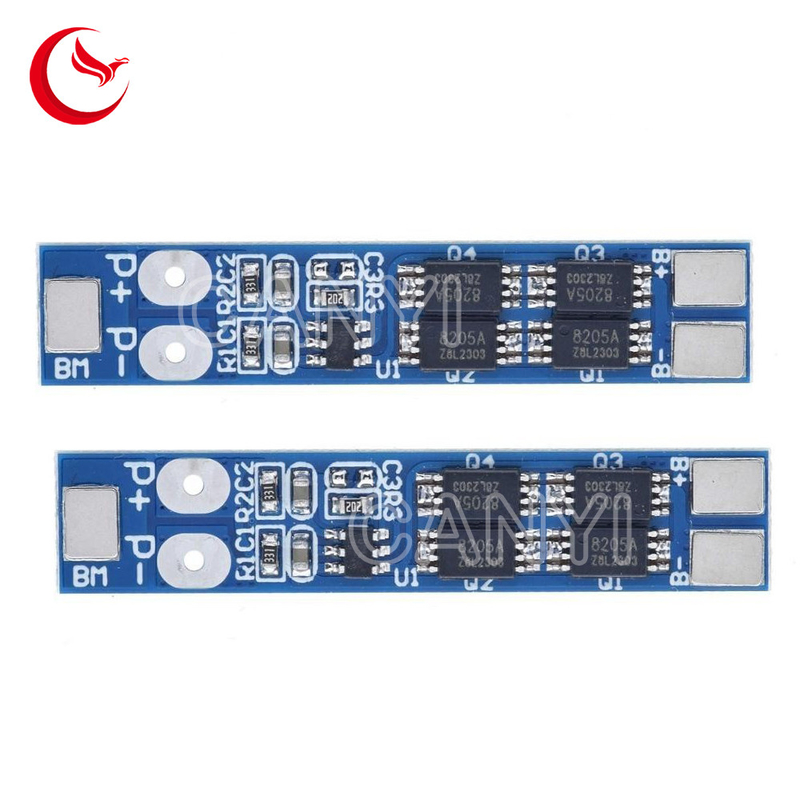

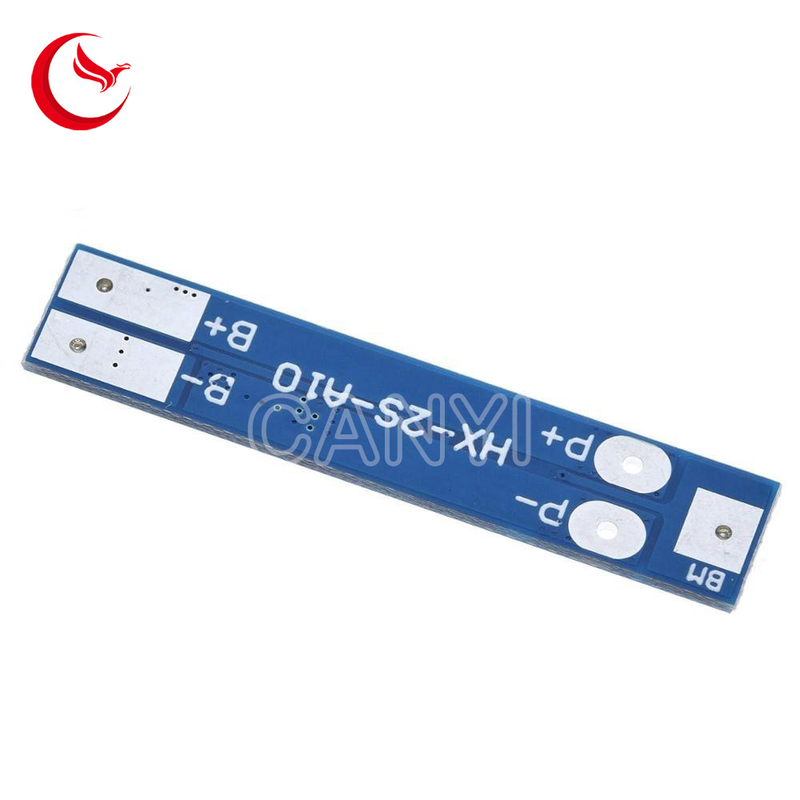

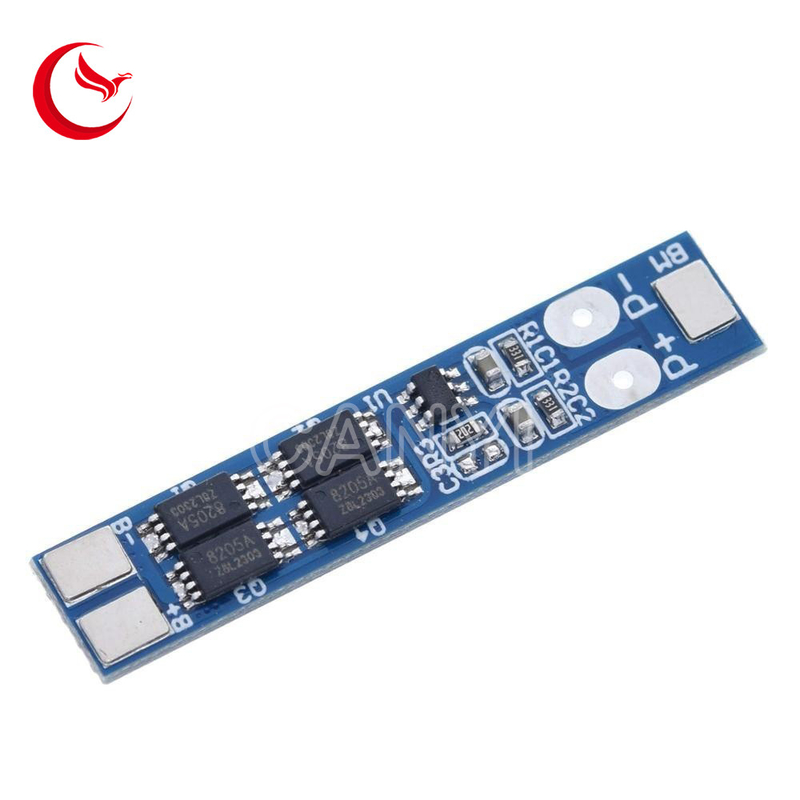

Properties of the lithium battery protection board:
Model: HX - 2S - A10
Size: 41 * 8 * 2.2 mm
Maximum working current: 8 a
Maximum instantaneous current: 16 a
Static current: less than 10uA
Resistance: less than 300 m Ω
Charging voltage: 8.4 v-9v
Overcharging range: 4.25-4.35 v plus or minus 0.05 v
Over voltage range: 2.5-3.0 v plus or minus 0.05 v
Working temperature: - 40 - + 50 ℃
Storage conditions: - 40 - + 80 ℃
Effective life: more than 50,000 hours
Short circuit protection: to protect and restore must charge

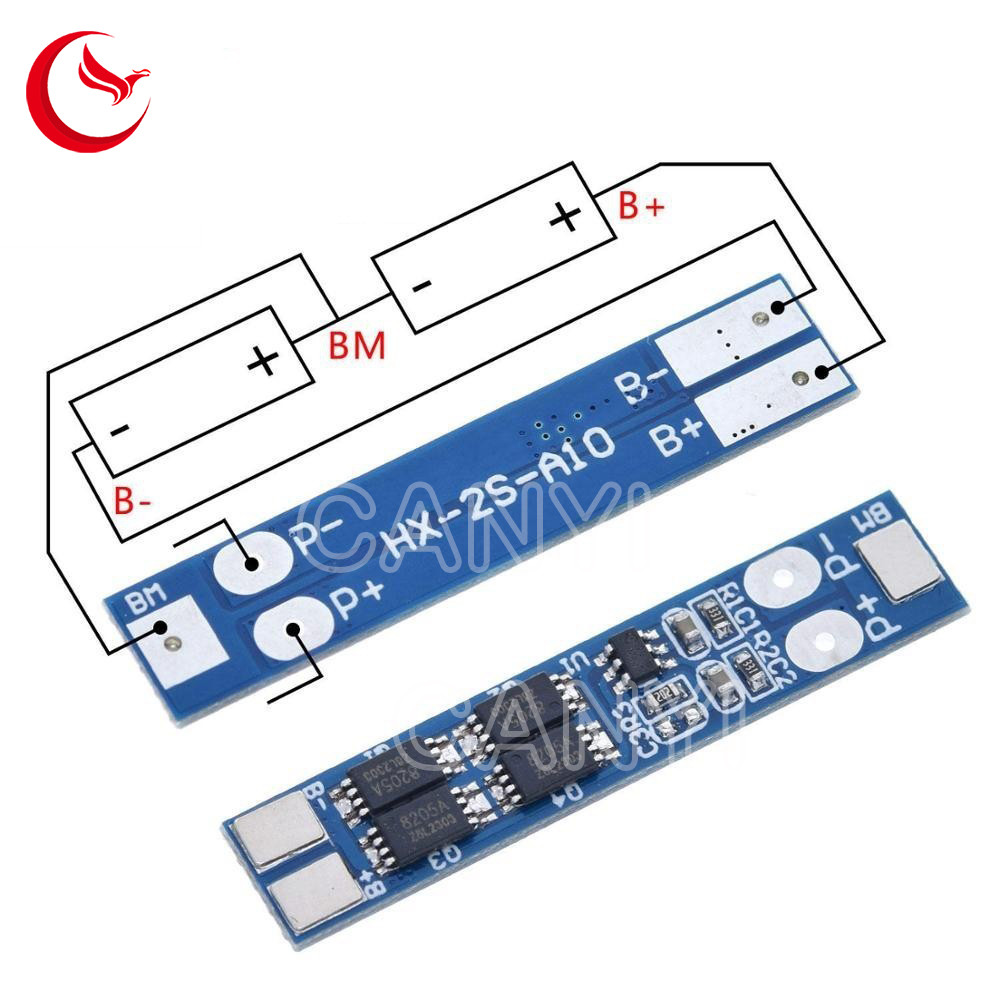

The protection board size and device description;

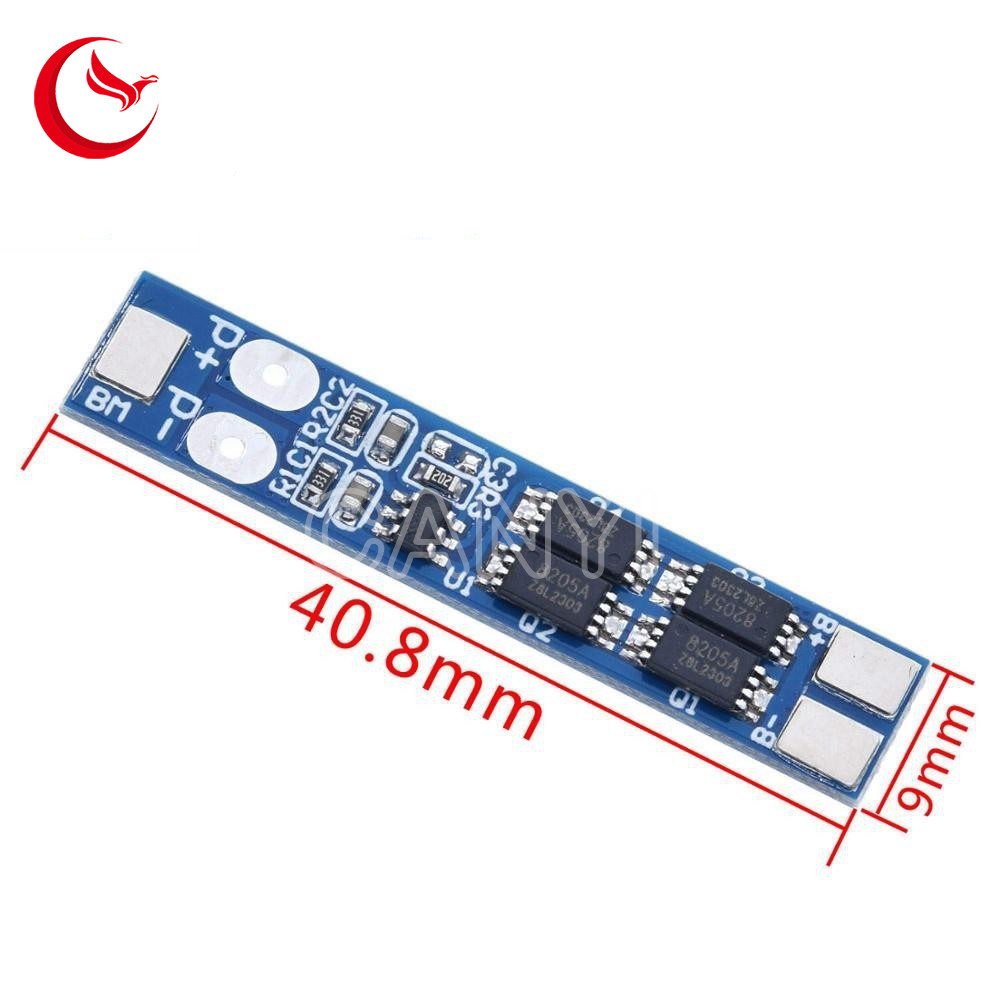

The protective plate size is 41 * 8 * 2.2 mm
· P - charging/discharge terminal negative terminal (charging end/discharge end sharing).
Welcome to customize the circuit board you need.
