| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-333 |
| Minimum Order Quantity: | 3000pcs |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Single Section Overcharge Protection Voltage: | 4.25V | Overcharge Protection Delay: | 1S |
|---|---|---|---|
| Overcurrent Protection Current: | 60A | Short Circuit Delay: | 300uS |
| Tap Discharge Current: | 25A | ||
| High Light: | 25a Printed Circuit Board Assembly,18650 Li Ion Printed Circuit Board Assembly,Lithium Battery Pcb Board Ssembly |
||

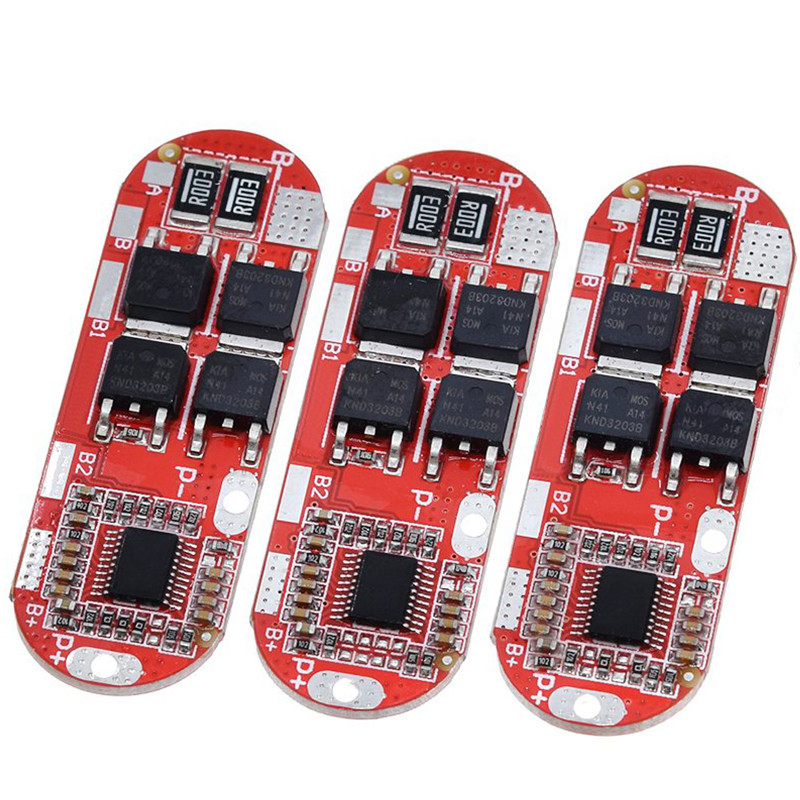

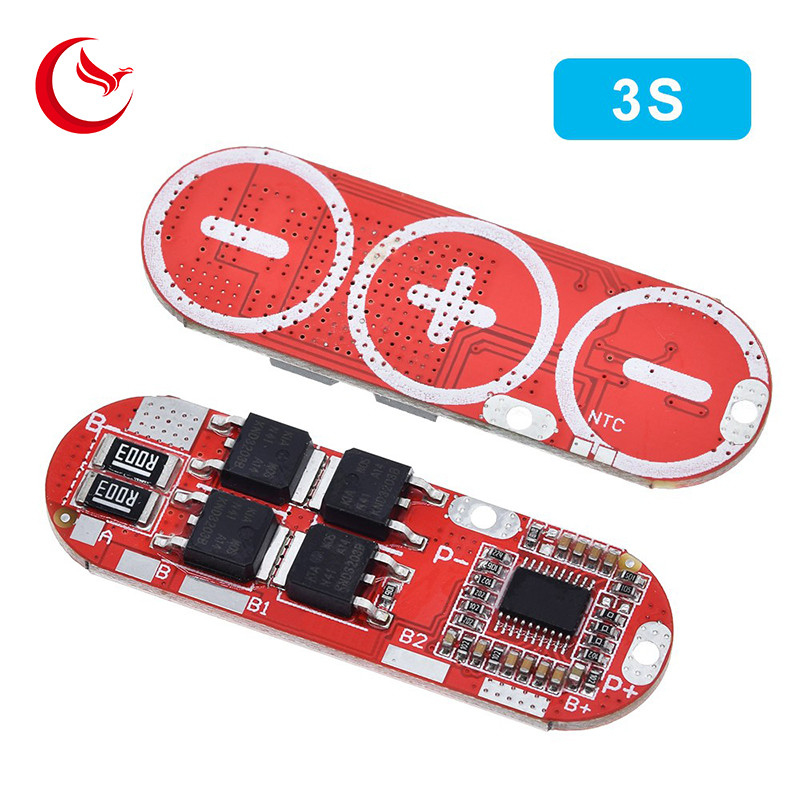

CY-333 3s 4s 5s 25a Bms 18650 Li-ion Lipo Lithium Battery Protection Circuit Board
INTRODUCTION
| Polymer Three yuan lithium Potassium manganate protection parameters (3. 6V/3.7V) | ||||
| Protection item | Min | Typ | Max | Unit |
| Single section overcharge protection voltage | 4.23 | 4.25 | 4.28 | V |
| Recovery voltage of single section overcharge protection | 1.08 | 4.13 | 4.18 | |
| Overcharge protection delay | 0.5 | 1 | 1.5 | S |
| Single section over discharge protection voltage | 2.72 | 2.8 | 2.88 | V |
| Recovery voltage of single section over discharge protection | 2.9 | 3 | 3.1 | |
| Overcurrent protection current | 60 | A | ||
| Over discharge protection current | 60 | |||
| Over discharge protection delay | 0.5 | 1 | 1.5 | S |
| Temperature protection | With temperature control interface | |||
| Broken line protection | Yes | |||
| Short circuit protection | Yes | |||
| Short circuit delay | 100 | 300 | 600 | uS |
| Recovery mode of short circuit | Disconnect load release | |||
| Tap discharge current | No | A | ||
| Discharge current at the same port | 25 | |||
| Charging current | 25 | |||
| Equilibrium function | No | |||
ATTENTIONS
Note 1: the B -, c-wires should be connected with thick wires, and ensure that the padand the positive
and negative poles of the corresponding equipment are correctly welded.
Note 2: before installing the protection plate, the battery must be well matched (the voltage difference of each battery shall not be higher than 0.05v, the internal resistancedifference shall not be greater than 5m 2, and the capacity difference shall be lower than 30mah). The protection plate is used to protect each battery string, as long as thevoltage of one battery string is too high or too low, it will be protected. The better theconsistency of the battery, the longer the power of the whole battery, and the better theperformance of the protection board.
Note 3: a single battery needs to be connected in parallel to the required number ofbatteries, and then the batteries can be used in series.
Note 4: when connecting three groups of batteries in series, please ensure that the voltage of each group of batteries is the same. If not, please fill each group of batteriesseparately and use them in series. During the discharge test, the battery with the fastestvoltage drop is the differential battery.
Note 5: do not mix good batteries with poor batteries. The closer the internal resistanceis, the better the capacity of battery pack is.
Note 6: this protection plate cannot be used for lithium iron phosphate battery.
Note 7: the lithium battery protection board is strictly prohibited to be used in series.
Choose Canyi to get more benefit:
Our fast delivery time can be in just one to two weeks for urgent demands. Providing customers with flexible, safe and efficient logistics services.For a electronic information base component supplier, contact us today.
