| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | 1SS355VM |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 1 -2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | High Speed Switching | Package Type: | SOD323FL |
|---|---|---|---|
| Forward Current: | 225mA | Reverse Voltage: | 80V |
| Reverse Recovery Time: | 4.0 Ns | Reverse Current: | VR=80V |
| High Light: | small signal switching diode,switching signal diode |
||

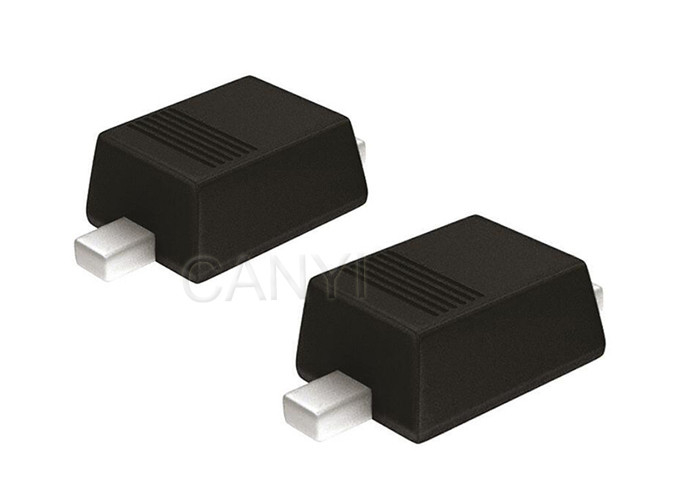

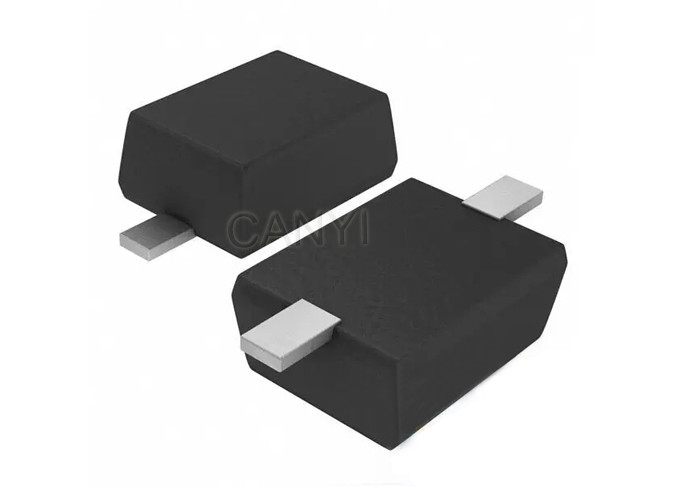

SOD323FL high speed switching 100mA 90V UMD2-2P smd switching diode
SMD switching diode features:
High speed switching diode applications:
Structure
Outline and Inner Circuit
Packaging specification
| Packing | Embossed Tape |
| Reel Size(mm) | 180 |
| Taping width(mm) | 8 |
| Basic ordering Unit(pcs) | 3000 |
| Taping Code | TE-17 |
| Marking | A |
Absolute maximum ratings(TA=25℃ )
| Parameter | Symbol | Conditions | Limits | Unit |
| Reverse voltage | VR | - | 80 | V |
| Repetitive peak reverse voltage | VRM | - | 90 | V |
| Average rectified forward current | Io | - | 100 | mA |
| Forward current | IFM | - | 225 | mA |
| Peak forward surge current | IFSM | T=1s | 500 | mA |
| Junction temperature | Tj | - | 150 | ℃ |
| Storage temperature | Tstg | - | -55~150 |
℃
|
Characteristics(TA=25℃ )
| Parameter | Symbol | Conditions | Min. | Typ. | Max. | Unit |
| Forward voltage | VF | IF =100mA | - | - | 1.2 | V |
| Reverse current | IR | VR =80V | - | - | 100 | nA |
| Capacitance between terminals | Ct | VR =0.5V f=1.0MHz | - | - | 3.0 | pF |
| Reverse recovery time | trr | VR =6.0V IF =100mA RL=100Ω | - | - | 4.0 | ns |
Caution:static electricity
