| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | 1A1~1A7 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Case: | Molded Plastic | Package: | Axial Lead R-1 |
|---|---|---|---|
| Ifsm: | 30A | Weight: | 0.093g |
| Material: | Silicon | ||
| Highlight: | surface mount rectifier diode,silicon rectifier diode |
||

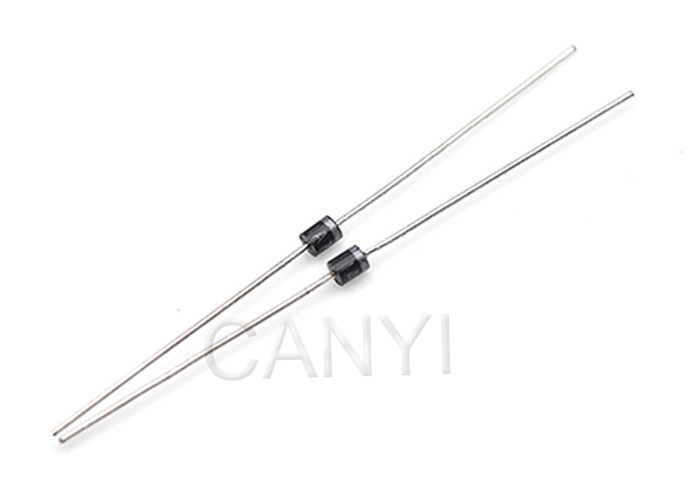

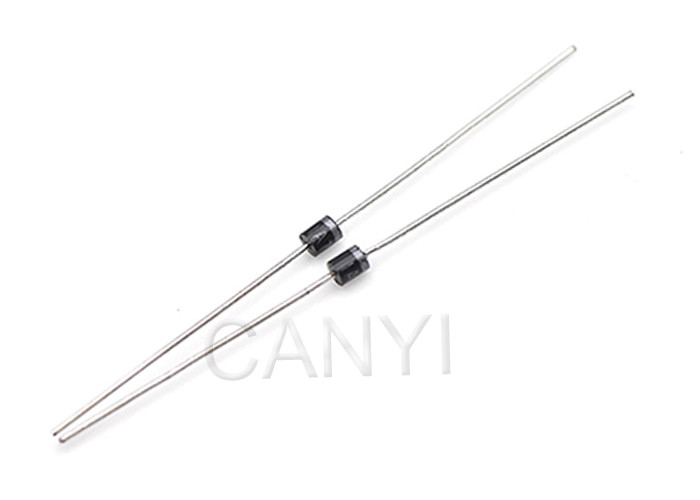

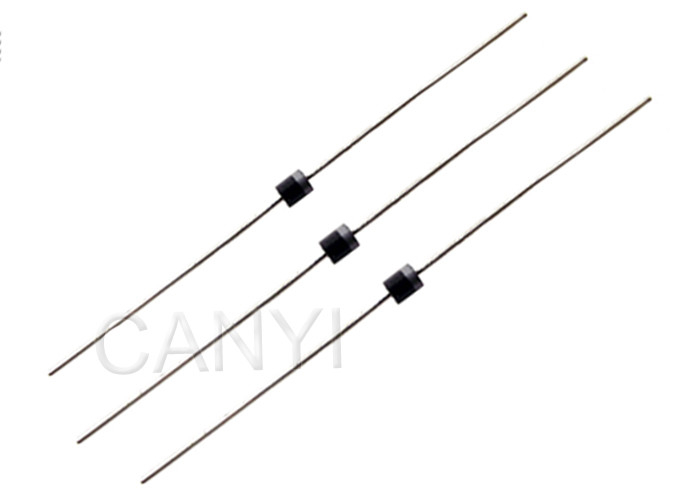

1a silicon rectifier diode 1A1~1A7 Axial lead R-1 rectifier diode for diode circuit
Model No.:1A1 1A2 1A3 1A4 1A5 1A6 1A7
1a 1000v diode features:
Rectifier diode circuit mechanical data:
Rectifier diode Dimension:
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specifie.
Single phase, half wave, 60 Hz, resistive or inductive load
For capacitive load, derate current by 20%
| Parameter | Symbol | 1A1 | 1A2 | 1A3 | 1A4 | 1A5 | 1A6 | 1A7 | Unit |
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum Average Forward Current 0.375"(9.5mm) Lead Length Ta = 50 °C | IF(AV) | 1.0 | A | ||||||
|
Peak forward surge current 8.3 ms Single half sine wave Superimposed on rated load (JEDEC Method) |
IFSM | 30 | A | ||||||
| Maximum Forward Voltage at I F = 1.0 A. | VF | 1.1 | V | ||||||
| Maximum DC Reverse Current Ta = 25 °C at rated DC Blocking Voltage Ta = 100 °C | IR | 5.0 | μA | ||||||
| IR(H) | 50 | μA | |||||||
| Typical Junction Capacitance (1) | CJ | 15 | pF | ||||||
| Typical Thermal Resistance (2) |
R θ J A
|
50 | ℃/W | ||||||
| Junction Temperature Range | TJ | -65~+125 | ℃ | ||||||
| Storage Temperature Range | Tstg | -65~+150 | ℃ | ||||||
Notes :
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0VDC
(2) Thermal Resistance from Junction to Ambient 0.375" (9.5mm) Lead Length
Supplying to Changdian, Xinghai, Tuofeng, Leshan, Roma and Anshi
After years of hard work, it has been officially represented and distributors of many electronic component manufacturers at home and abroad.We supply electronic components for well-known companies such as Changdian, Xinghai, Tuofeng, Leshan, Roma, Anshi and so on.
Mix order accepted and free sample
We accept mix orders for our customer with warehouse,samples for testing are welcome.
