| Case: | Glass Passivated Rectifier | Package: | SMA/SMB |
|---|---|---|---|
| Package Type: | Surface Mount | Ifsm: | 50A |
| Weight: | 0.093g | Average Rectified Output Current: | 1.5A |
| High Light: | surface mount rectifier diode,silicon rectifier diode |
||

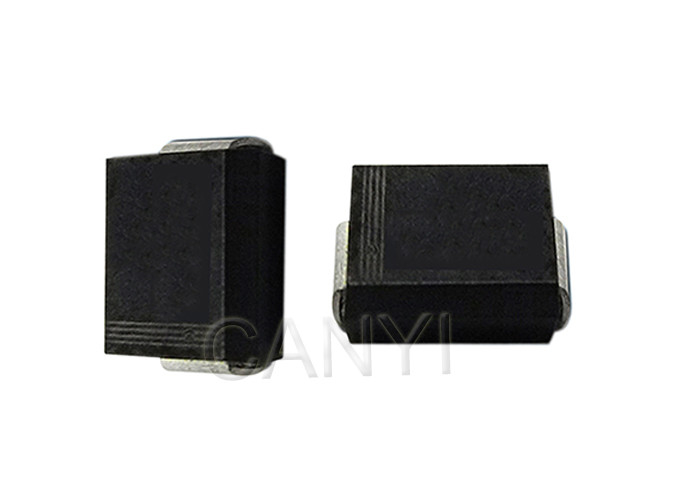

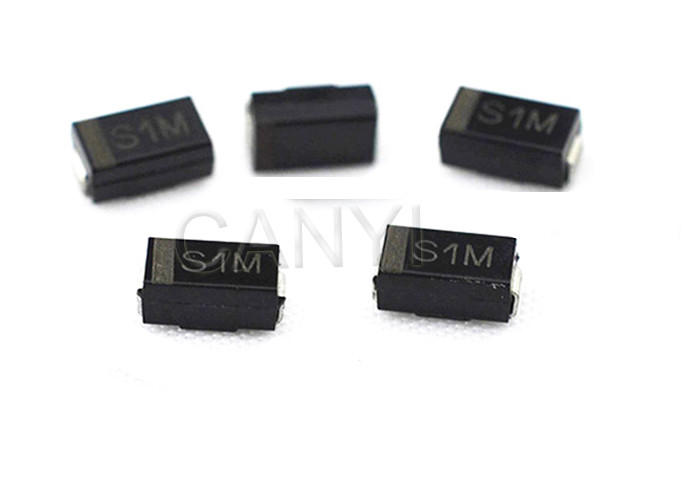

surface mount glass passivated rectifier diode module SMA or SMB 2a rectifier diode
Model No.:S2A S2B S2D S2G S2J S2K S2M
surface mount rectifier diode features:
smd rectifier diode Mechanical data:
Rectifier diode Dimension:
Maximum ratings and Electrical characteristics @TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
| Parameter | symbol | S2A | S2B | S2D | S2G | S2J | S2K | S2M | unit |
|
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
|
VRRM
VRWM
VR
|
50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| RMS Reverse voltage | VR(RMS) | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
|
Average Rectified Output Current
@ TT = 100°C
|
I(AV)
|
1.5 | A | ||||||
|
Non-Repetitive Peak Forward Surge Current 8.3ms single half sine-wave superimposed on rated load(JEDEC Method)
|
IFSM | 50 | A | ||||||
|
Forward Voltage
@ IF = 1.5A
|
VFM
|
1.15 | V | ||||||
|
Peak Reverse Current @TA = 25°C
at Rated DC Blocking Voltage
@TA = 125°C
|
IRM
|
5.0 125 |
μA |
||||||
|
Typical Total Capacitance (Note 1)
|
CT
|
20 | pF | ||||||
|
Typical Thermal Resistance, Junction to Terminal(Note 2)
|
RθJT
|
20 | ℃/W | ||||||
|
Operating and Storage Temperature Range
|
Tj,Tstg | -65 to +150 | ℃ | ||||||
