| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | BZT52C3V6S |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Zener Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 200mW | Max. Reverse Voltage: | 90 Ohms |
| Max. Forward Current: | 900mV @ 10mA | Max. Reverse Current: | 5uA @ 1V |
| Voltage: | 3.6V | Impedance (Max) (Zzt): | 90 Ohms |
| Operating Temperature: | -65°C ~ 150°C | Mounting Type: | Surface Mount |
| High Light: | high power zener diode,high voltage zener diode |
||
|
Surface Mount Zener Diode
|
|||
|

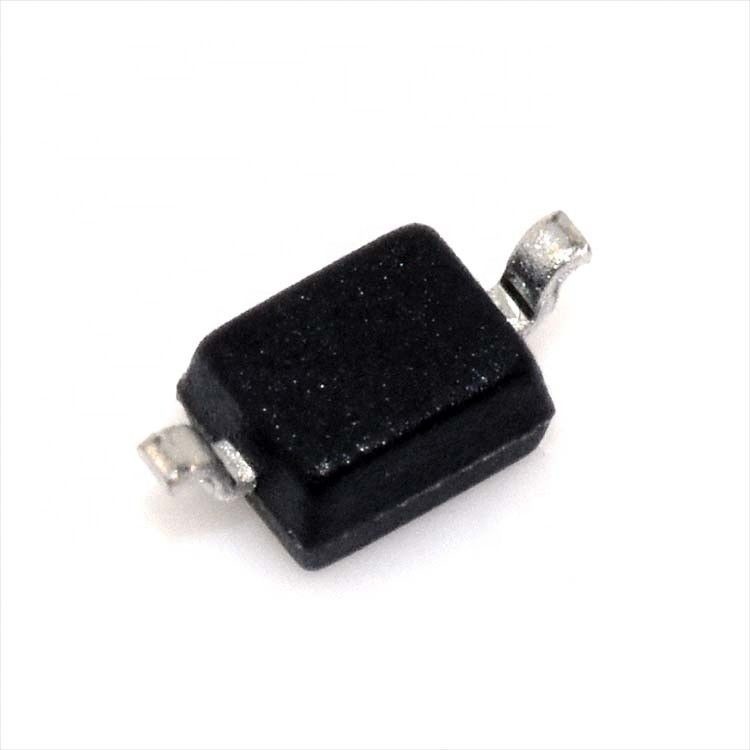

Zener 3.6V 200mW Surface Mount SOD-323 Diode BZT52C3V6S
|
|||
|
Part Status
|
Active
|
||
|
Voltage - Zener (Nom) (Vz)
|
3.6V
|
||
|
Tolerance
|
±6%
|
||
|
Power - Max
|
200mW
|
||
|
Impedance (Max) (Zzt)
|
90 Ohms
|
||
|
Current - Reverse Leakage @ Vr
|
5µA @ 1V
|
||
|
Voltage - Forward (Vf) (Max) @ If
|
900mV @ 10mA
|
||
|
Operating Temperature
|
-65°C ~ 150°C
|
||
|
Mounting Type
|
Surface Mount
|
||
|
Package / Case
|
SC-76, SOD-323
|
||
Professional: We are trading company and have some well cooperated factories specializing in making Schottky Signal Diode, Schottky Barrier Diode, High Current Rectifier Diode, Fast Recovery Diode and so on. We have a profession team for design, technology, and quality control. We provide best quality products with reasonable price.
OEM & ODM: OEM and ODM order are welcome! We provide customized products and packaging. We can print your Logo in our products by silk screen printing or laser printing according to your artwork design to meet your special requirements. You can send us the artwork by E-mail. We have a wealth of experience in Logo printing and customized packing.
Good service: We not only provide you good quality products but also excellent service. We are easy-going and willing do our best to meet customer’s demands. You can tell me your idea and we can help to improve the quality and reduce you cost in order to expand you business. You can contact with us at any time. We will give you a feedback within 24hrs.
Bulk packaging data:
0.54*45 Diodes Bulk Box: 63*21*191MM Outer Box: 42*33*24CM
0.58 Diodes Bulk Box: 84*22*195MM Outer Box: 42*33*24CM
0.54*45 Diodes Tape cassette: 255*145*75MM Outer box: 42*27.6*31CM
45 long bulk packaging: 42*33*24CM
58 long bulk packaging: 45*21*26CM
