| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | HER101 HER102 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Through Hole |
|---|---|---|---|
| Max. Forward Voltage: | 1V | Max. Reverse Voltage: | 100V |
| Max. Forward Current: | 1.0A | Max. Reverse Current: | 5 UA |
| Package: | DO-41 | Material: | Silicon |
| IFSM: | 30A | Weight: | 0.012ounce, 0.33 Gram |
| Working Temperature: | -65 - +150(℃) | Typical Junction Capacitance: | 15 PF |
| High Light: | high power diode,high efficiency rectifier diode |
||

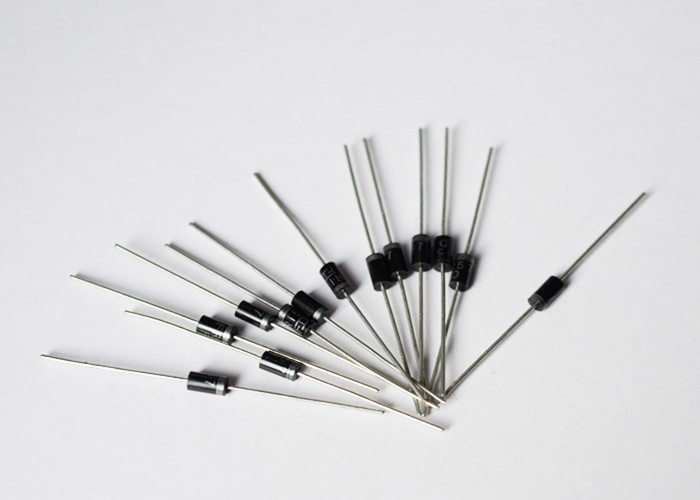

HER101 HER102 High Efficiency Rectifier Diode DO-41 package
Features
1. Diffused junction
2. Low reverse leakage current
3. Fast switching for high efficiency
4. High current capability and low Forward Voltage Drop
5. Surge overload rating to 30A peak
Mechanical Data
Case: Molded plastic
Terminals: Solder plated solderable per MIL-STD-202, Method 208
Polarity: Cathode band
Mounting Position: Any
Weight: 0.3 grams (approx)
Shenzhen Canyi Electronics Technology Co., Ltd. is committed to the promotion and distribution of well-known electronic components, and its products cover network communication, industrial control, automotive electronics, security monitoring and consumer electronics. In 2013, Canyi Technology officially represented Delcheng Technology (DEC) products, and in 2015 officially became the general agent of overseas sales. On this basis, after years of hard work, it has been officially represented and distributors of many electronic component manufacturers at home and abroad such as Changdian, Xinghai, Tuofeng, Leshan, Roma and Anshi.
