| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | HER501~HER508 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | 5A High Efficiency Diode | Package Type: | Through Hole |
|---|---|---|---|
| Package: | DO - 201AD | Weight: | 1.16 Gram |
| Voltage: | 50-1000V | Material: | Molded Plastic |
| High Light: | high power diode,low forward voltage diode |
||

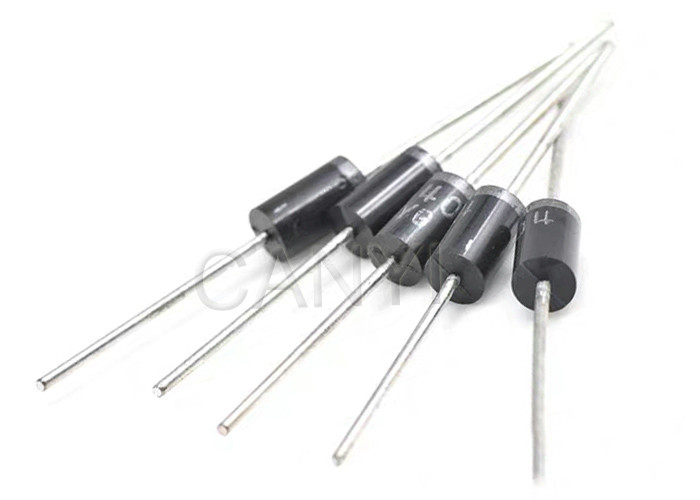

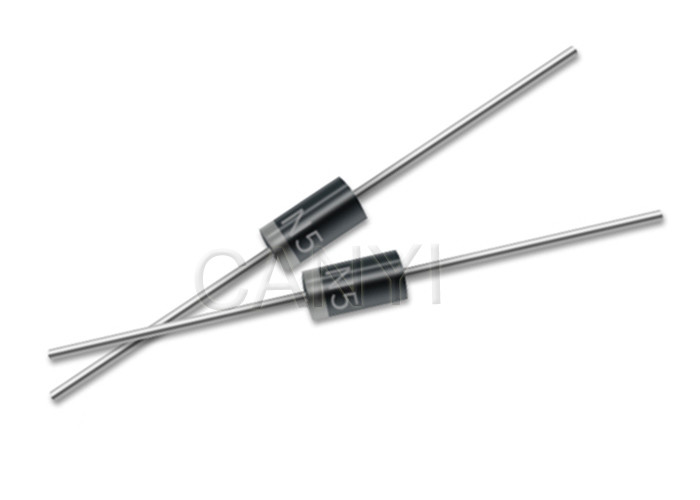

5A low leakage diode 50 - 1000V high speed diode 50~75ns high efficiency diode
High current diode features:
High efficiency rectifier mechanical Data:
| Parameter | Symbol |
HER 501 |
HER 502 |
HER 503 |
HER 504 |
HER 505 |
HER 506 |
HER 507 |
HER 508 |
Unit | |
| Maximum repetitive peak reverse voltage | VRRM | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | V | |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 210 | 280 | 420 | 560 | 700 | V | |
| Maximum DC blocking voltage | VDC | 50 | 100 | 200 | 300 | 400 | 600 | 800 | 1000 | V | |
| Maximum Average Forward Current 0.375"(9.5mm) Lead Length Ta = 50 °C | IF(AV) | 1.0 | A | ||||||||
|
Peak forward surge current 8.3 ms Single half sine wave Superimposed on rated load (JEDEC Method) |
IFSM | 30 | A | ||||||||
| Maximum Forward Voltage at I F = 1.0 A. | VF | 1.1 | 1.7 | V | |||||||
| Maximum DC Reverse Current Ta = 25 °C at rated DC Blocking Voltage Ta = 100 °C | IR | 5.0 | μA | ||||||||
| IR(H) | 50 | μA | |||||||||
| Typical Junction Capacitance (1) | CJ | 15 | pF | ||||||||
|
Maximum Reverse Recovery Time ( Note 1 )
|
Trr | 50 | 75 | ns | |||||||
| Junction Temperature Range | TJ | -65~+125 | ℃ | ||||||||
| Storage Temperature Range | Tstg | -65~+150 | ℃ | ||||||||
