| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | HER301 Thru HER308 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Max. Forward Voltage: | 50V-1000V |
|---|---|---|---|
| Max. Reverse Voltage: | 50V-1000V | Max. Forward Current: | 0-3A |
| Max. Reverse Current: | 0-3A | Voltage: | 50-1000V |
| Sample: | Free | Warranty: | 12 Months |
| Package: | DO-27 | Current: | 3.0A |
| High Light: | high power diode,low forward voltage diode |
||

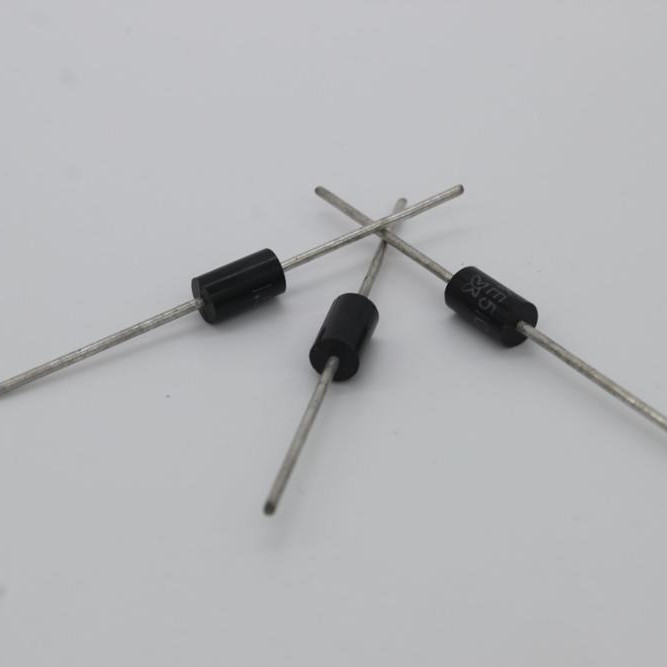

| Name | High Efficiency Rectifier HER301 Thru HER308 |
| Voltage | 50-1000V |
| Package | Do-27 |
| Packing | box or customizable |
| MOQ | 3000pcs |
| Original | China |
| H.S Code | 8528511000 |
| Comply to RoHS | Yes |
FEATURES:
* Glass Passivated Junction in DO-27
* Low Zener Resistence
* Hight Current Capability
* Low Forward Voltage Drop
* High Reliability and Low Leakage
* For Surface Mount Application to optimize board space
* High Temperature Soldering: 260°C/10 seconds at terminals
Guaranteed: 0.375”, (9.5mm) lead length, 5lbs. (2.3kg) tension
* Plastic Material - UL Flammability Classification Rating 94 V-0
* Epoxy Encapsulated Friendly Environment
* Pb / RoHS and Halogen Free
Mechanical Data:
* Case: Molded Plastic JEDEC DO-27
* Terminals: Matte Tin Axial Leads Plated
Solderable per MIL-STD-202, Method 208
* Polarity: Colour band denotes cathod except bidirectional
* Mounting Position: Any
* Approx. Weight: 1.1g 0.043 oz
Application:
* I/O Interface
* AC/DC power supply
* Low frequency signal transmission lines
* Computer and telcommuications
Electrical Feartures: High Efficiency Recrtifiers HER301 Thru HER308
Ratings and Characteristic Curves (Ta=25 unless otherwise specified)
