| Type: | Rectifier Diode | Max. Forward Voltage: | 1.1V, 1.1V |
|---|---|---|---|
| Max. Reverse Voltage: | 1000V, 1000V | Max. Forward Current: | 1A, 1A |
| Max. Reverse Current: | 5UA, 5.0uA | Product Name: | M7 |
| Material: | Silicon | Operating Temperature: | -55-150℃ |
| Highlight: | smd rectifier diode,silicon rectifier diode |
||

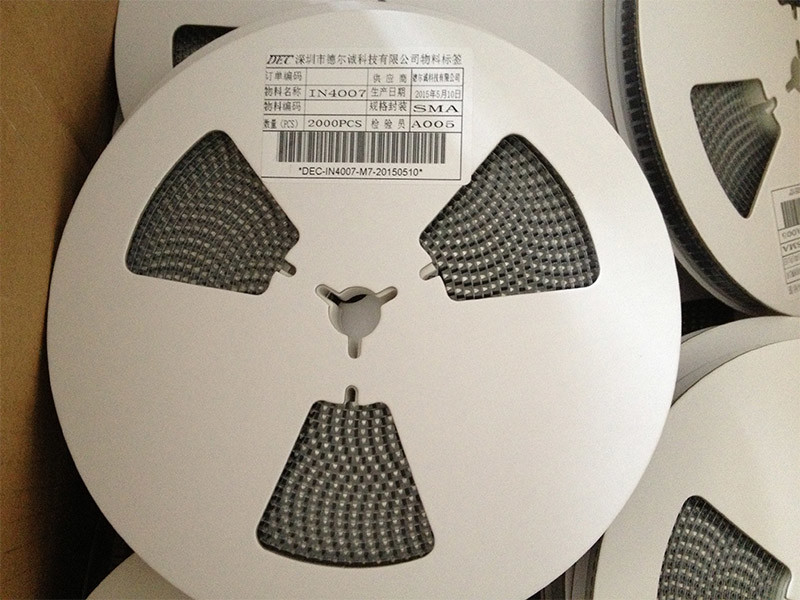

Hot Sale M7 chip rectifier diode SMA package SMD rectifier Diode
Specification:
| M1 THRU M7 | |
| SURFACE MOUNT GENERAL RECTIFIER Reverse Voltage - 50 to 1000 Volts Forward Current - 1.0 Ampere |
|
| FEATURES | |
|
|
| MECHANICAL DATA | |
|
|
| MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS | |
| Ratings at 25C ambient temperature unless otherwise specified. Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%. |
|
| TYPE NUMBER | SYMBOLS | M1 | M2 | M3 | M4 | M5 | M6 | M7 | UNIT |
|
Maximum Recurrent Peak Reverse Voltage |
VRRM | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
| Maximum RMS voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | 700 | V |
| Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | V |
|
Maximum average forward rectified current at TL =55℃ |
I(AV) | 1.0 | A | ||||||
|
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) |
IFSM | 30 | A | ||||||
|
Maximum instantaneous forward voltage at 1.0A DC |
VF | 1.1 | V | ||||||
| Maximum DC reverse current TA =25℃ at rated DC blocking voltage TA=100℃ |
IR | 5.0 50 |
uA | ||||||
| Typical junction capacitance (Note 1) | CJ | 15 | pF | ||||||
| Typical thermal resistance (Note 2) | RθJC | 75 | ℃/w | ||||||
| Operating Temperature Range | TJ | "-55--+125 | ℃ | ||||||
| Storage temperature range | TSTG | "-55--+150 | ℃ | ||||||
| Notes: 1.Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2.P.C.B. mounted with 0.2x0.2”(5.0x5.0mm) copper pad areas |
|||||||||
