| Place of Origin: | China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | music player pcb board |
| Minimum Order Quantity: | 200PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Model Number: | Player Pcb Board | Application: | Computer |
|---|---|---|---|
| Supply Voltage: | 5V | For Arduino STM: | Electronic Module |
| High Light: | 12KHz Voice Playback Pcb Board,Voice Playback Pcb Board 10W,20W Playback Serial Control Pcb |
||

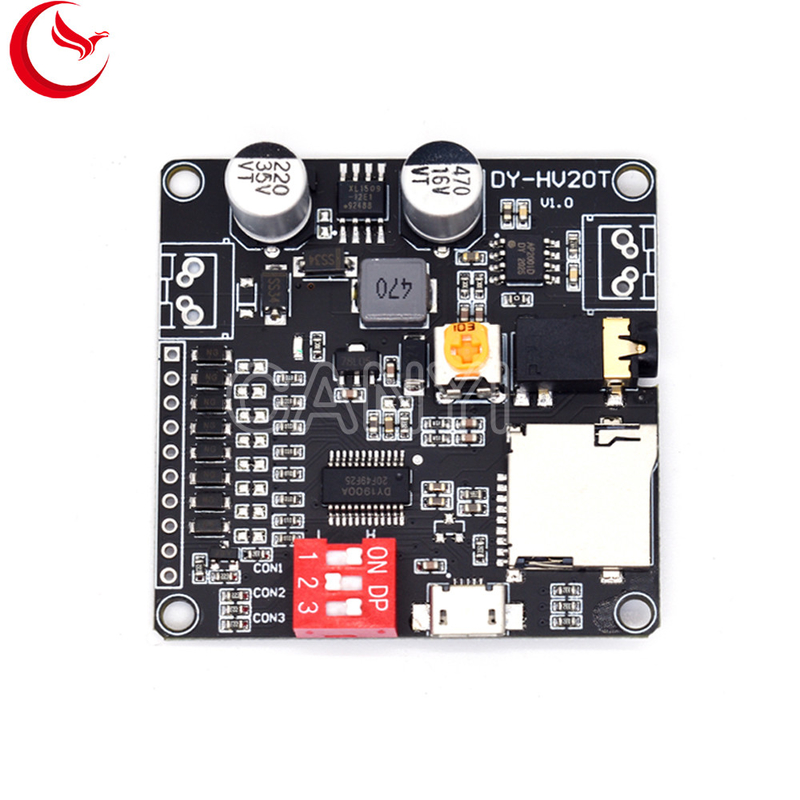

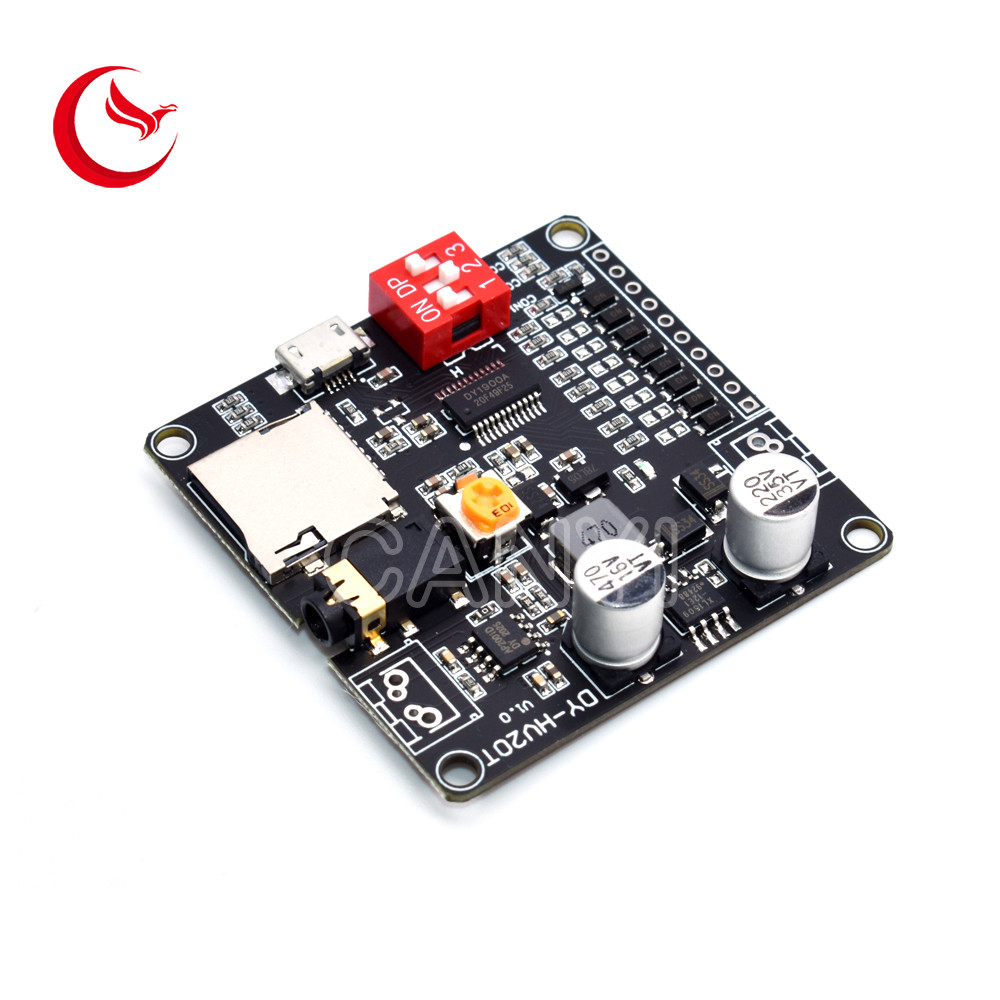

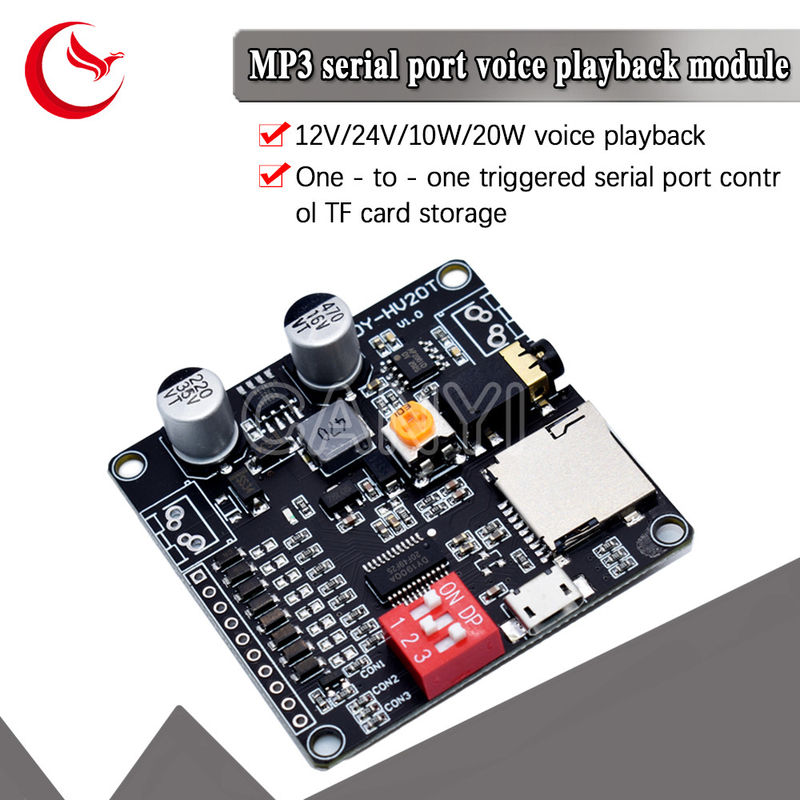

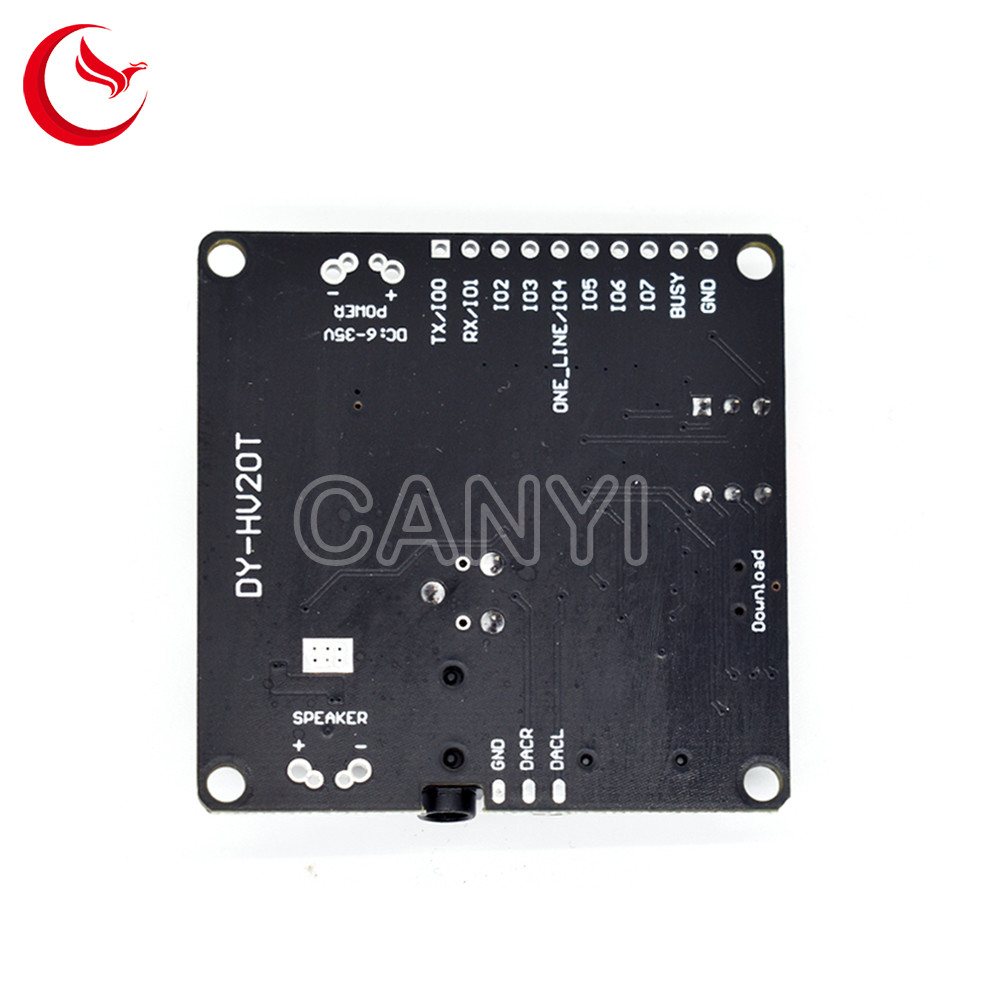

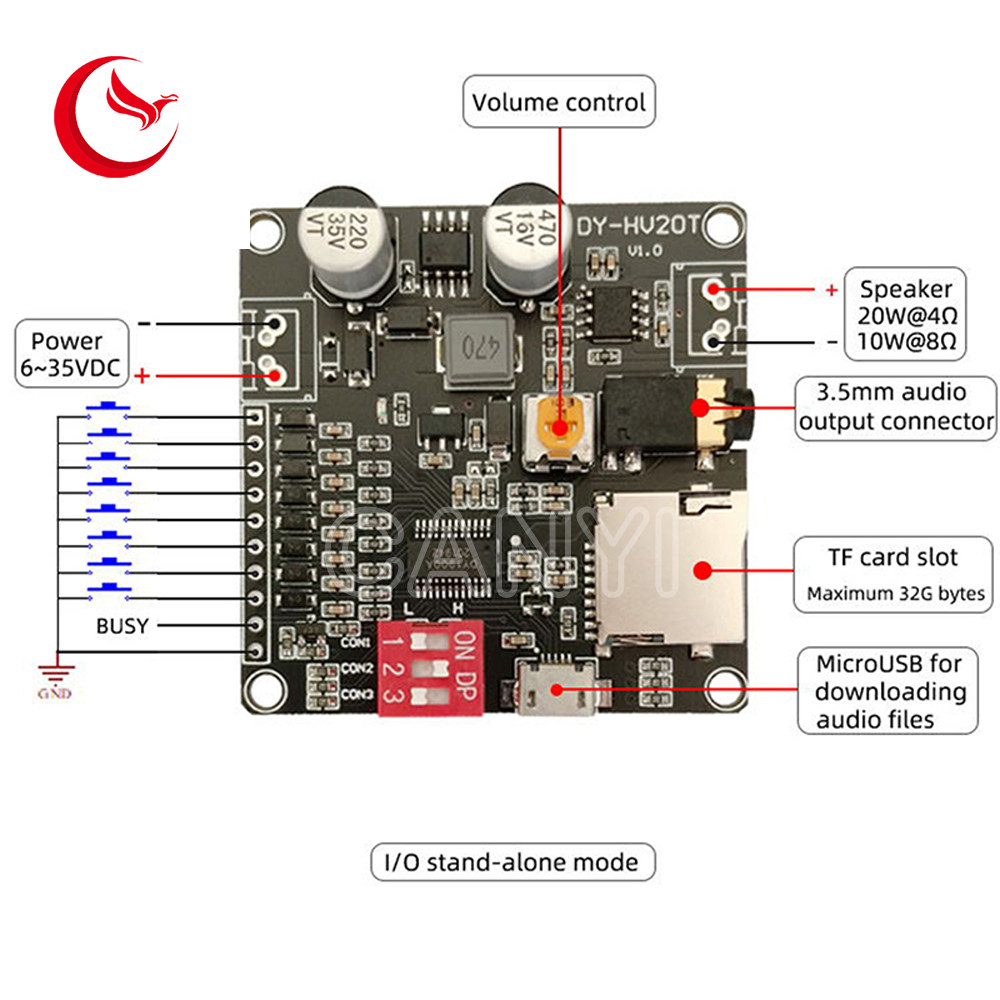

Definition of pins:
| PINS | Description |
| Power(6~35VDC) | 6~35VDC power supply |
| TXD/IO0 | IO0 in IO triggering mode;TX in UART control mode,connect to RX of MCU |
| RXD/IO1 | IO1 in IO triggering mode; RX in UART control mode,connect to TX of MCU |
| IO2 | IO2 in IO triggering mode |
| IO3 | IO3 in IO triggering mode |
| One_line/IO4 | IO4 in IO triggering mode;RX in One_line mode |
| IO5 | IO5 in IO triggering mode |
| IO6 | IO6 in IO triggering mode |
| IO7 | IO7 in IO triggering mode |
| BUSY | Output low level while playing music(0V),output high level when end playing(3.3V) |
| GND | Reference GND |
| Speaker | 4Ω/20W or 8Ω/10W speaker is recommended |
