| Place of Origin: | China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | driver expansion board |
| Minimum Order Quantity: | 200PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Model Number: | Wireless Pcb Board | Application: | Computer |
|---|---|---|---|
| Operating Temperature: | Operating Temperature : -40℃±85℃ | ||

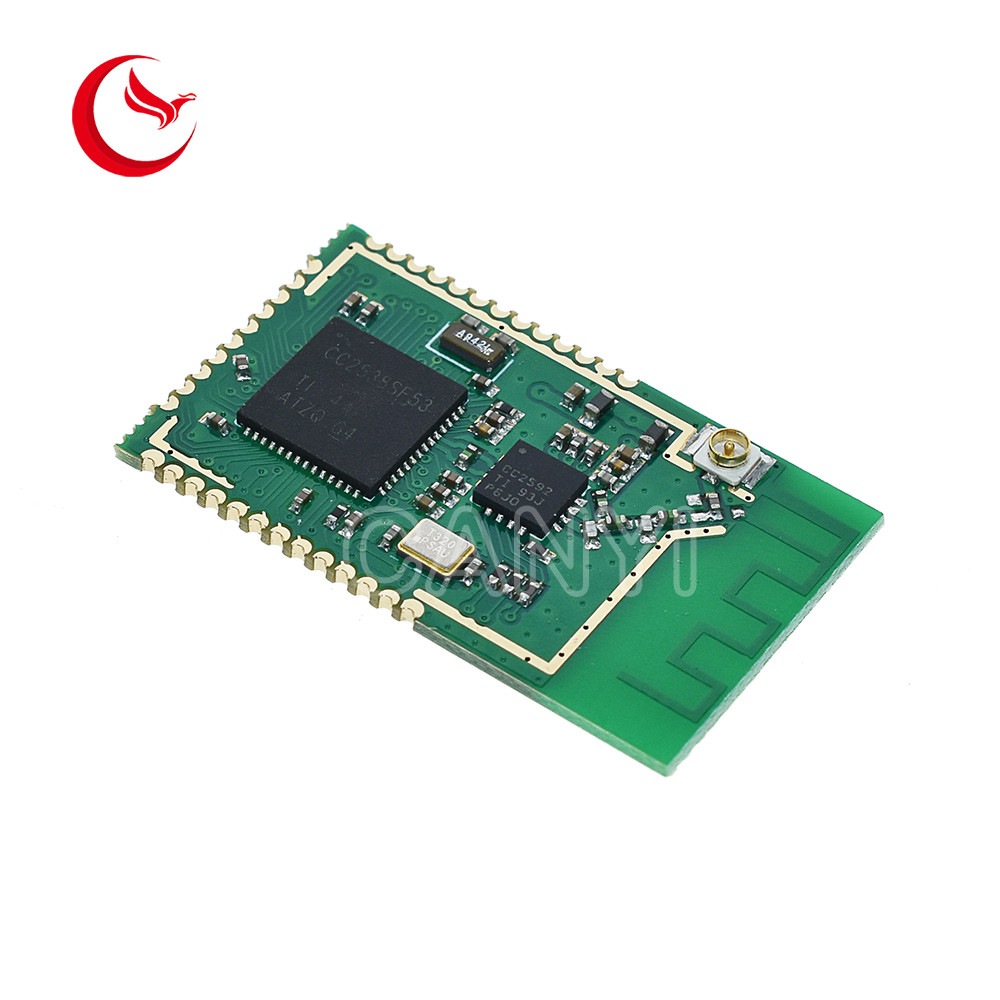

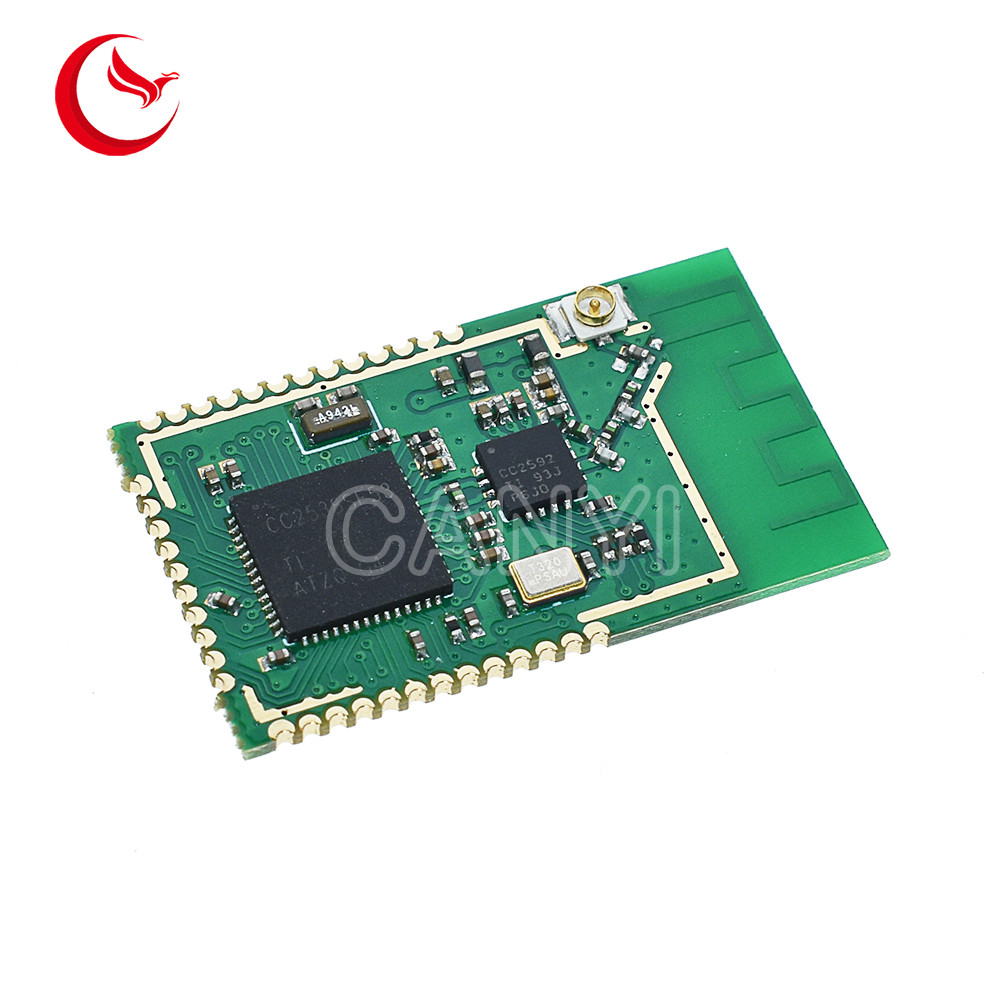

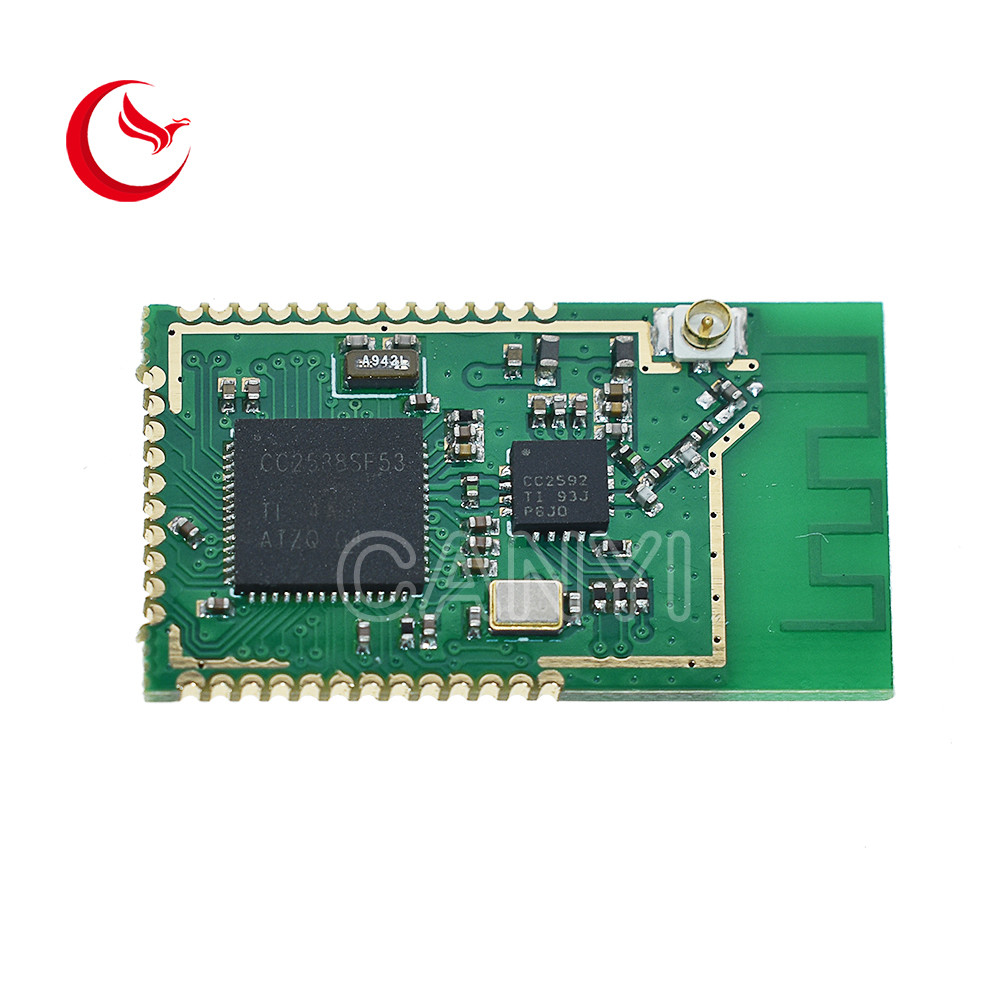

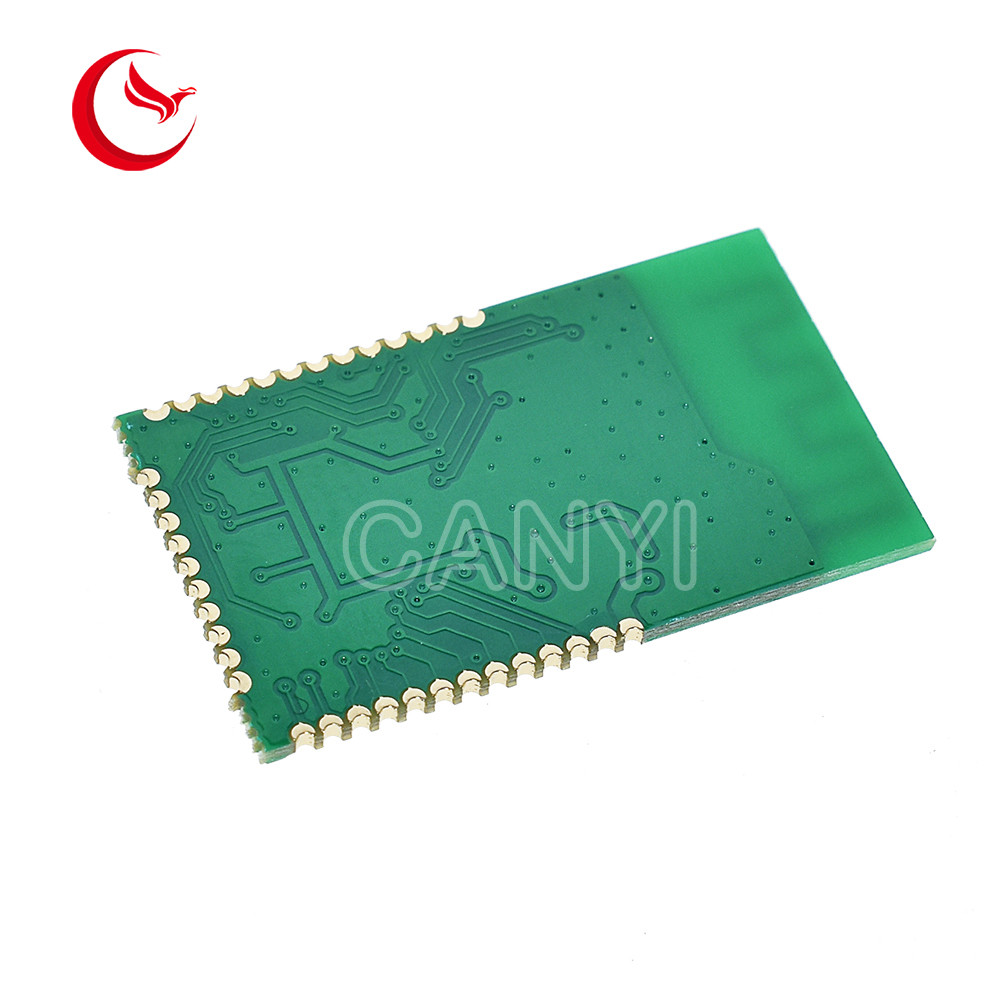

| High Light: | 2.4Ghz PA Zigbee Wireless Module,PA Zigbee Wireless Module CC2538SF53,CC2538SF53RTQR |
||
| Parameter | Typical value | Description |
| Sensitivity | -103.5dBm | |
| Output Power | + 20dBm | + 19.5~ +21dBm |
| Input gain | 12dB | |
| Noise | 4dB | |
| Emission current | <175mA | At maximum transmit power |
| Receive current | 30mA | |
| Sleep current | 0.4uA | |
| Operating Voltage | +3.3V | |
| Transmission distance | 600m | With PCB antenna straight view |
| Data rate | 250Kbps | |
| Number of channels | 16 | |
| Antenna | PCB/IPEX | |
| Temperature range | -40℃±80℃ | |

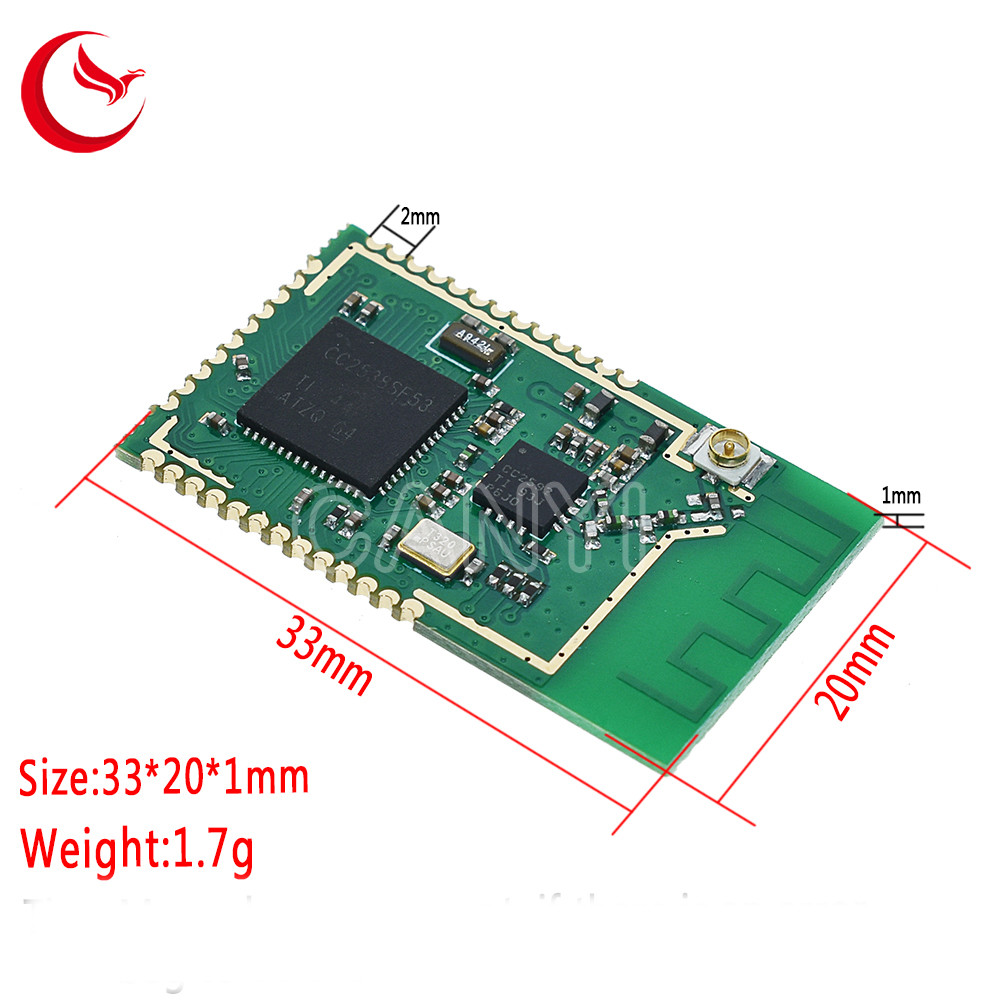

| Size | 33*20mm | |
