| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | CY-4S-F30A |
| Minimum Order Quantity: | 500pcs |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 10-15 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Product Name: | Protection Board 4S-F30A | Over Charge Detection Voltage: | 4.28+ 0.05 V |
|---|---|---|---|
| Over Charging Voltage: | 4.095-4.195V | Over Charge Detection Delay Time: | 0.1s |
| Short Circuit Detection Delay Time: | 100ms | Working Current: | 30A |
| Short Circuit Protection Function: | Yes,disconnect The Load Can Be Self Recovery | PCB Size: | 56x45x1.2mm Or 56x48x4mm |
| High Light: | 18650 Battery PCB Protection Board,4S30A PCB Protection Board,14.8V Li Ion Lithium Board |
||

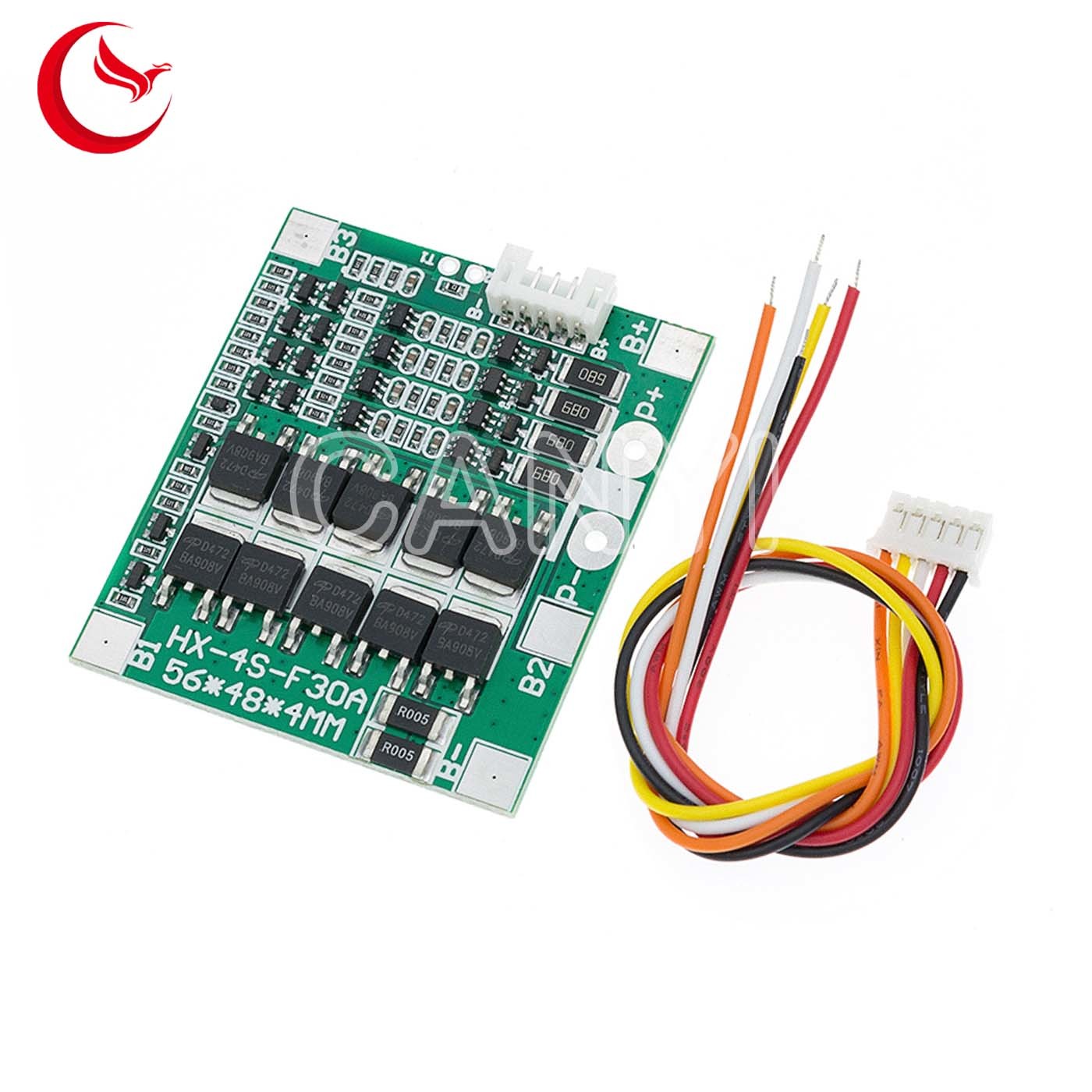

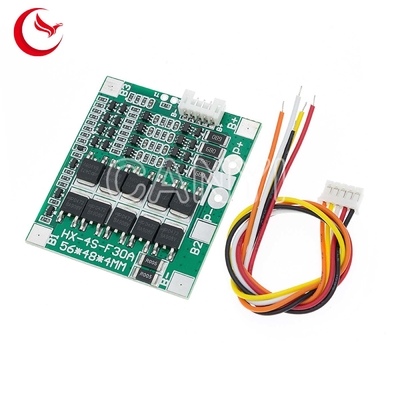

4S30A 14.8V Li-ion Lithium 18650 Battery PCB Protection Board with cable
Main function:
Over charge protection, over discharge protection function, short circuit protection
function, over current protection function, balance.
| Over charge detection voltage | 4.28+ 0.05 V |
| Over charging voltage | 4.095-4.195V |
| Over discharge voltage | 2.55±0.08 |
| Over charge detection delay time | 0.1s |
| Temperature range | -30-80℃ |
| Short circuit detection delay time | 100ms |
| Over current detection delay time | 500 ms |
| Balanced current | 60mA |
| Working current | 30A |
| Over current | 60A |
| Short circuit protection function | Yes,disconnect the load can be self recovery |
| Size:56x45x1.2mm | Size:56x48x4mm |

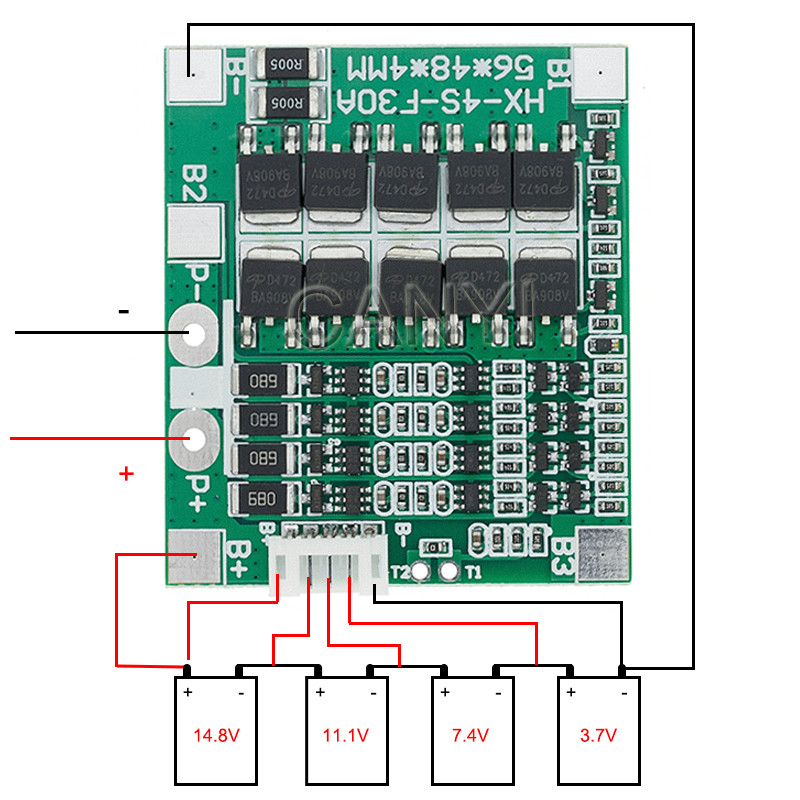

Interface definition:
