| Place of Origin: | China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | 5-40V to 1.2-35V power |
| Minimum Order Quantity: | 200PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Moldel: | Mini Bluetooth 4.2 Speaker Amplifier Board | Application: | Computer |
|---|---|---|---|
| Operating Temperature: | -40℃-+85℃ | Supply Voltage: | 4.5-5V |
| Dissipation Power: | 3wx2 | Is Customed: | Yes |
| For Arduino STM: | Electronic Module | ||
| High Light: | Bluetooth 4.2 Speaker Pcb Assembiles,3W Speaker Pcb Assembiles,Bluetooth 4.2 Speaker Amplifier Board |
||
Condition : New
Type : Voltage Regulator
Model Number : Mini Bluetooth 4.2 Speaker Amplifier Board
Application : Computer
Operating Temperature : -40℃-+85℃
Supply Voltage : 4.5-5V
Dissipation Power : 3wx2
Package : DIY KIT
is customized : Yes
For Arduino STM : electronic module

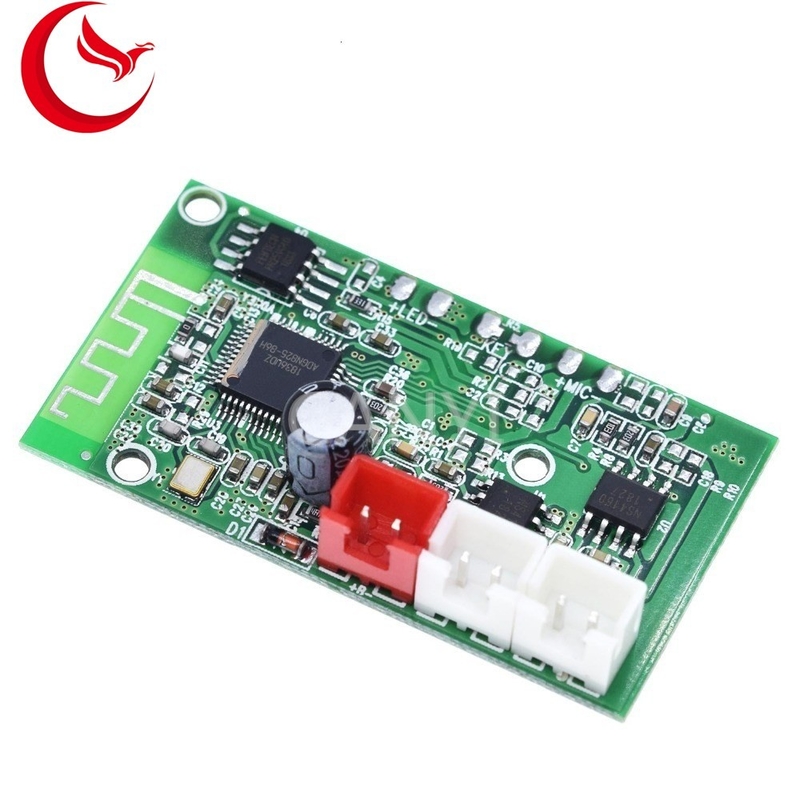

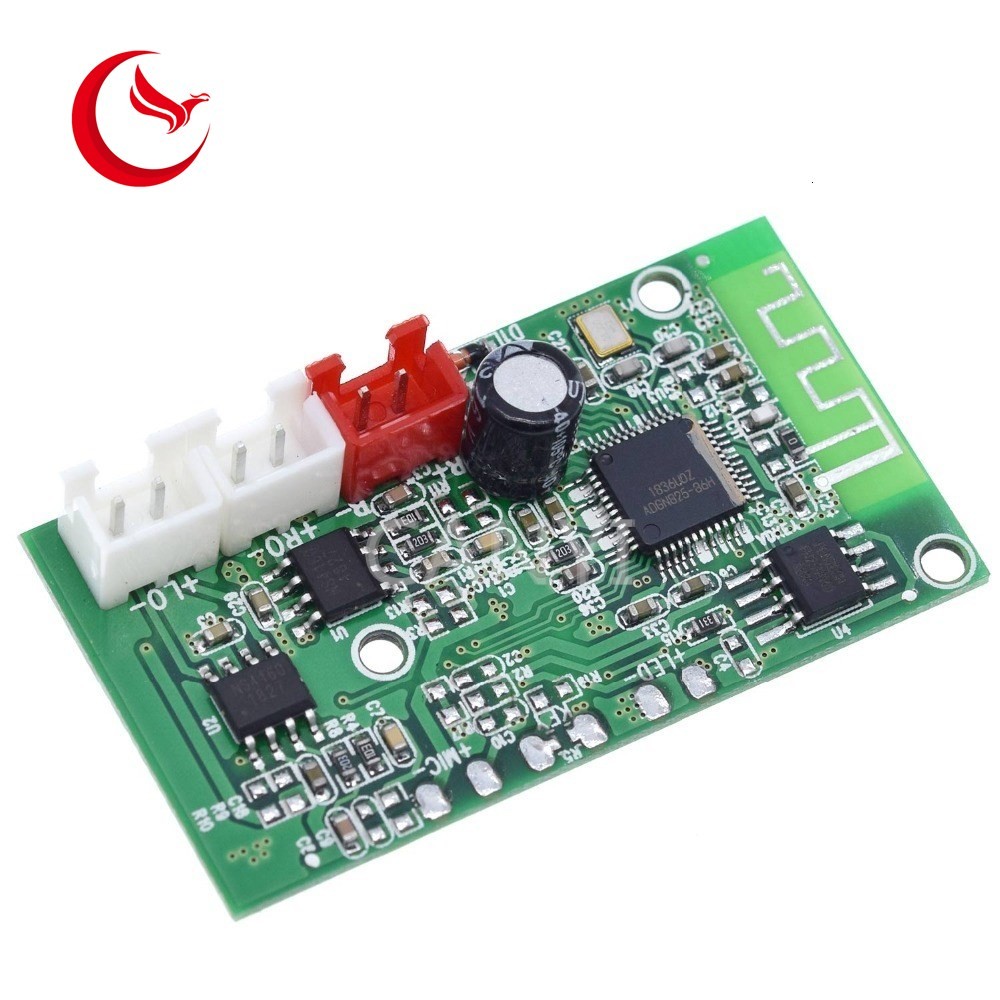

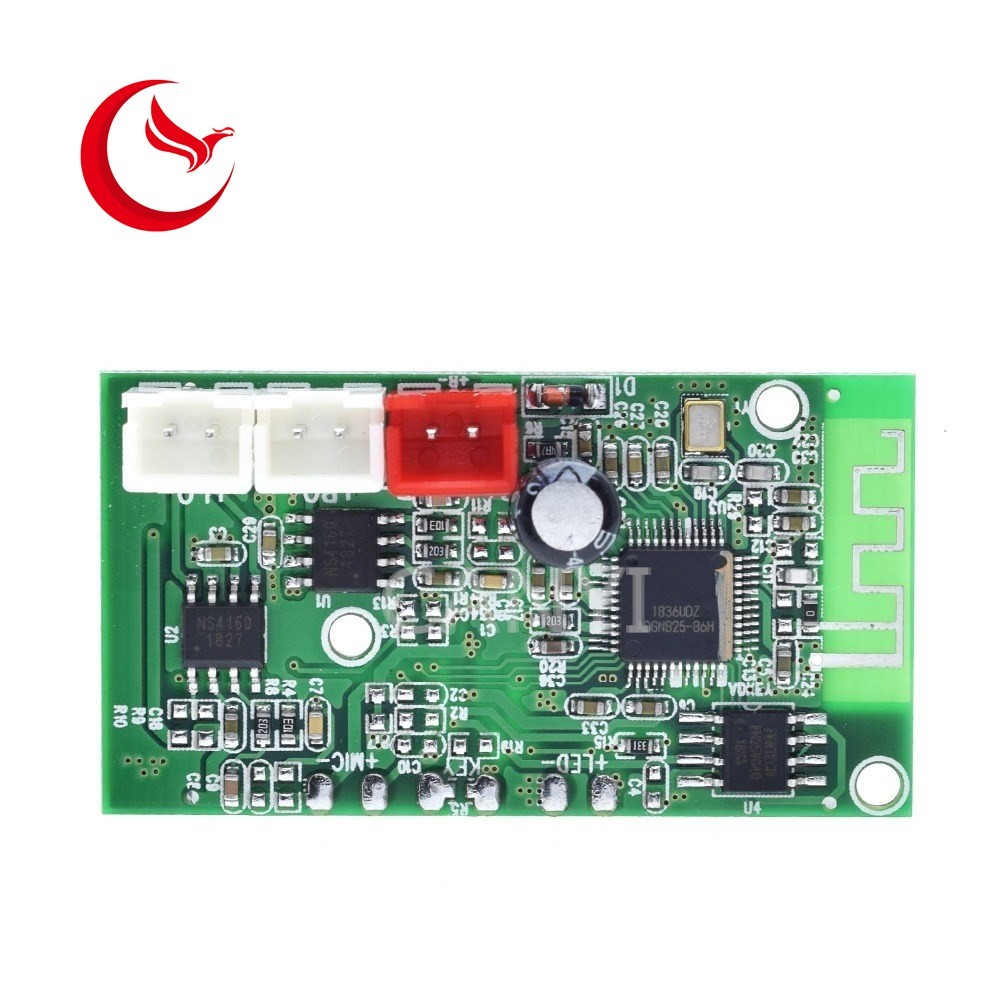

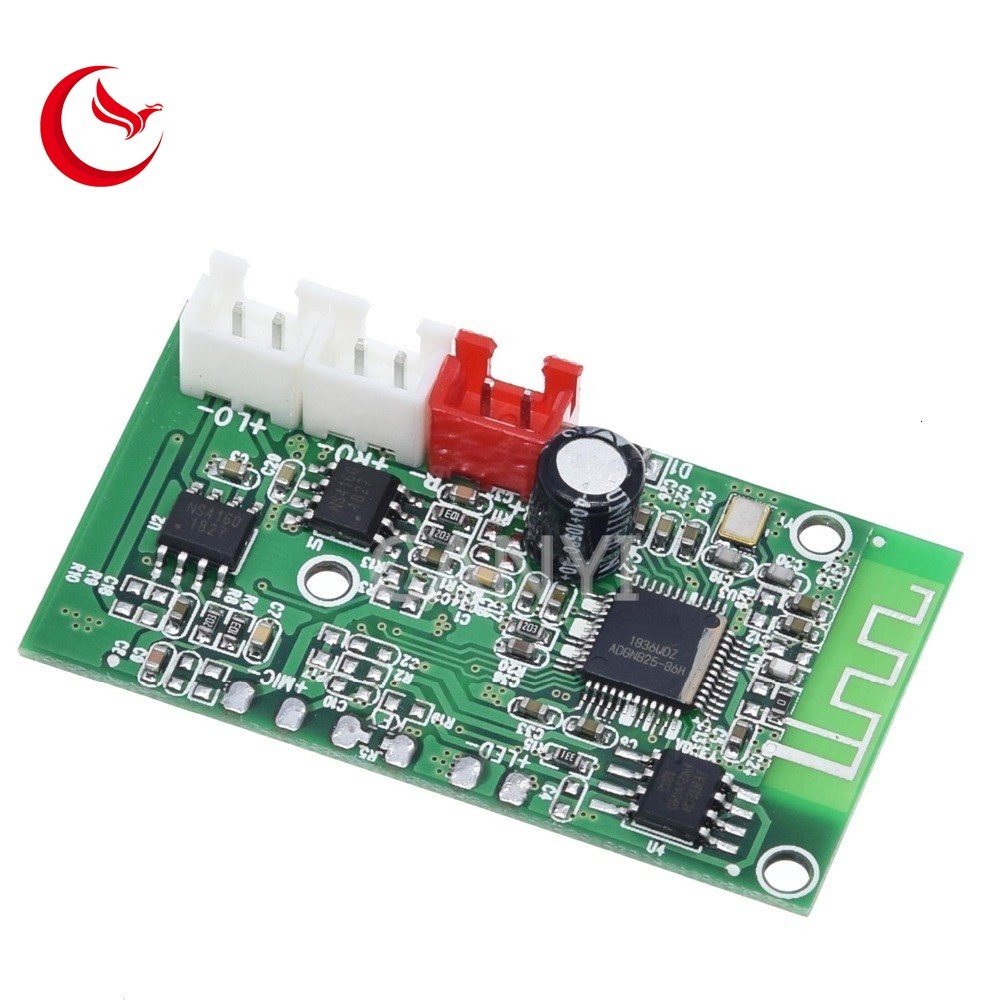

mini bluetooth 4.2 speaker pcb assembiles board 3W*2 class dual channle audio phones computers
Condition : New
Type : Voltage Regulator
Model Number : Mini Bluetooth 4.2 Speaker Amplifier Board
Application : Computer
Operating Temperature : -40-+85
Supply Voltage : 4.5-5V
Dissipation Power : 3wx2
Package : DIY KIT
is_customized : Yes
For Arduino STM : electronic module
PRODUCT INFORMATION
MOTHERBOARD FEATURES
1.ls a 3W+3W Class D audio amplifier with Bluetooth chip and noise suppression, a low-cost,low-power, high-quality Bluetooth music wireless.speaker.Circuit designed,mainly small noise,beautiful sound,clear bright,smaller board, universal.
PARAMETERS

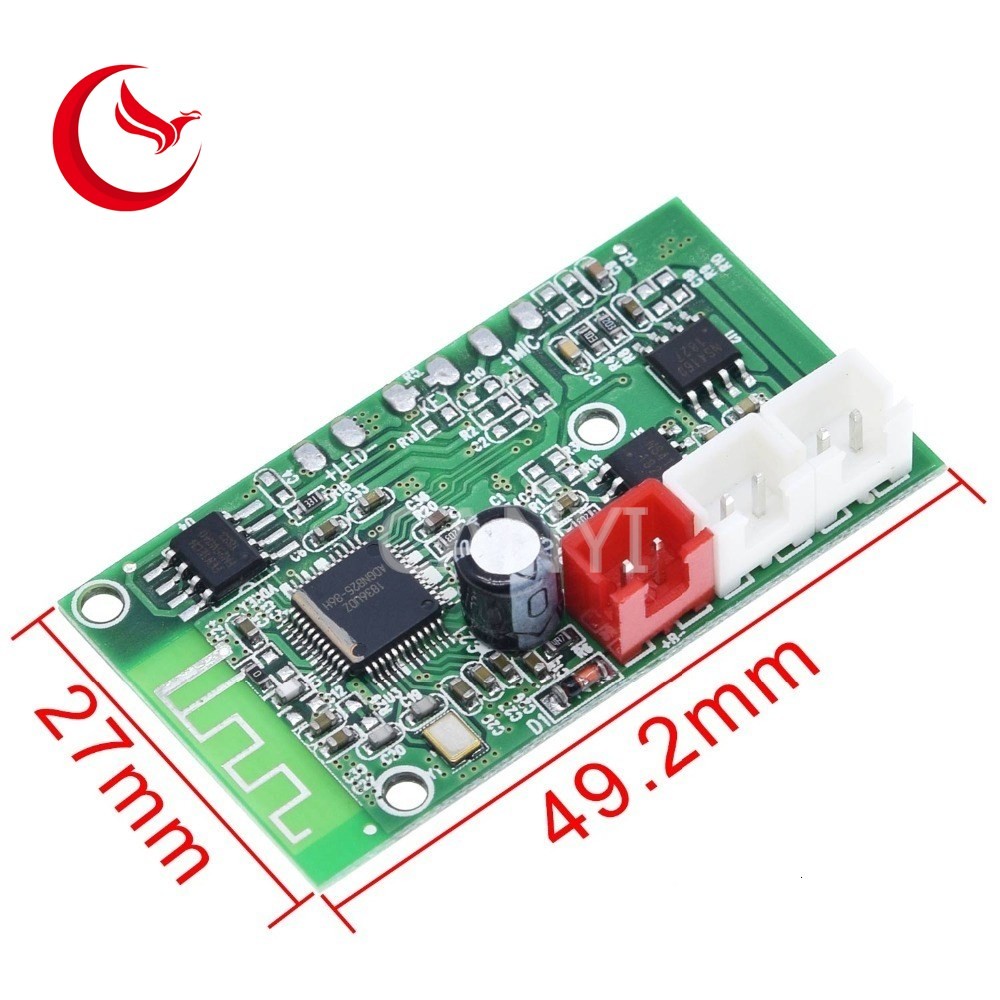

1.Board size:50* 27MM
Output power: 3W* 3W
Load:4-8 ohms
2.Voltage: DC 3.7-5V
Bandwidth: 20HZ-20KHZ
Signal to noise ratio: 98-110DB
Distortion: 1KHZ0.1%
Working range: 15 meters
Bluetooth version: 4.2
Support Bluetooth protocol:A2DPAVRCP hands-free agreement
Support power-on pairing and automatic connection device
Device without pairing code (device name Bluetooth)
APPLICATIONS
Bluetooth speaker products,balance car audio, bluetooth audio adapter,digital products,computer to box products,audio output products support,with Bluetooth-enabled mobile phones,computers,i-Pad,
