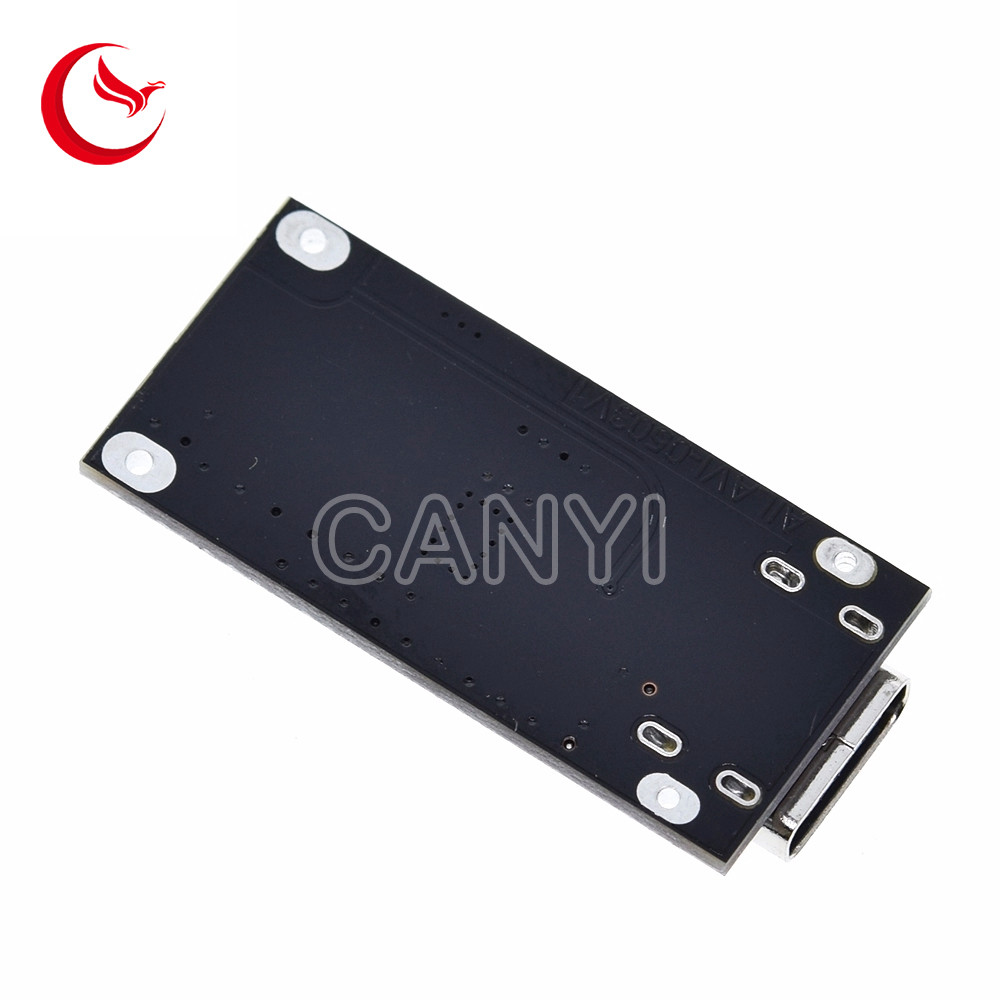

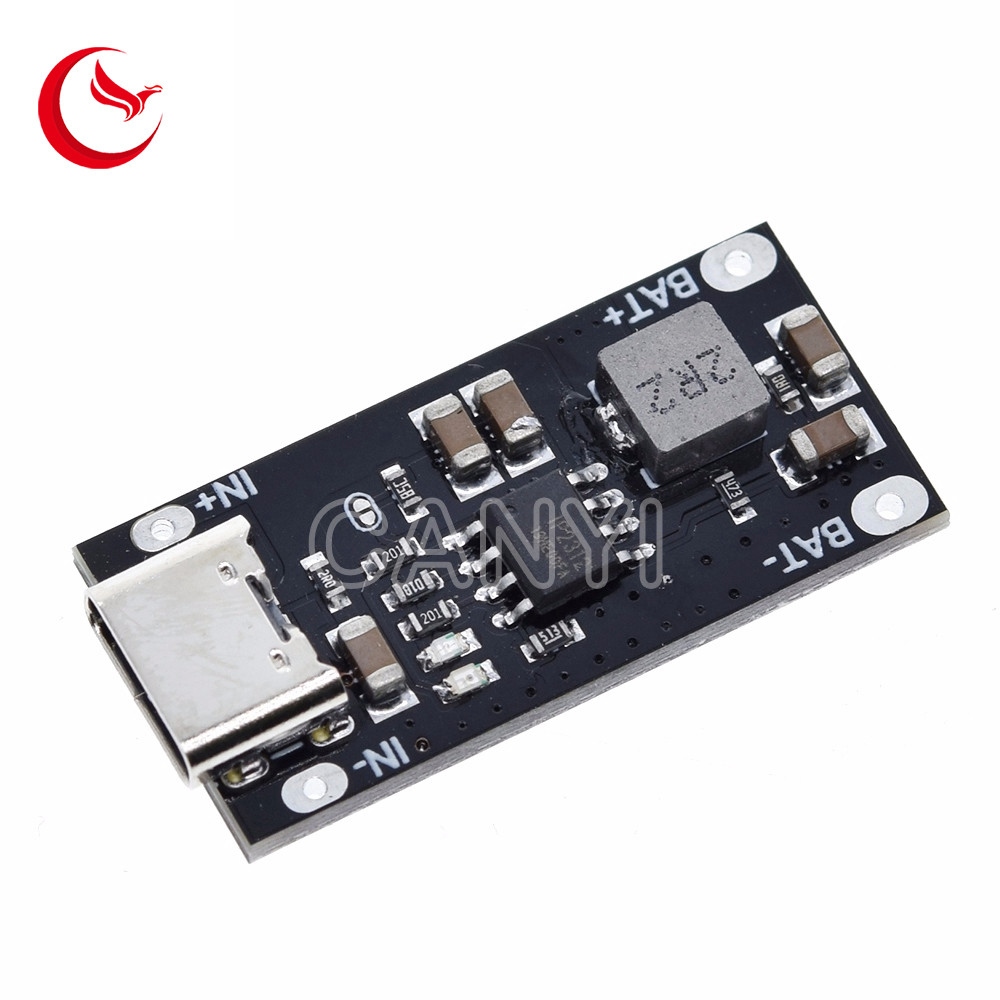

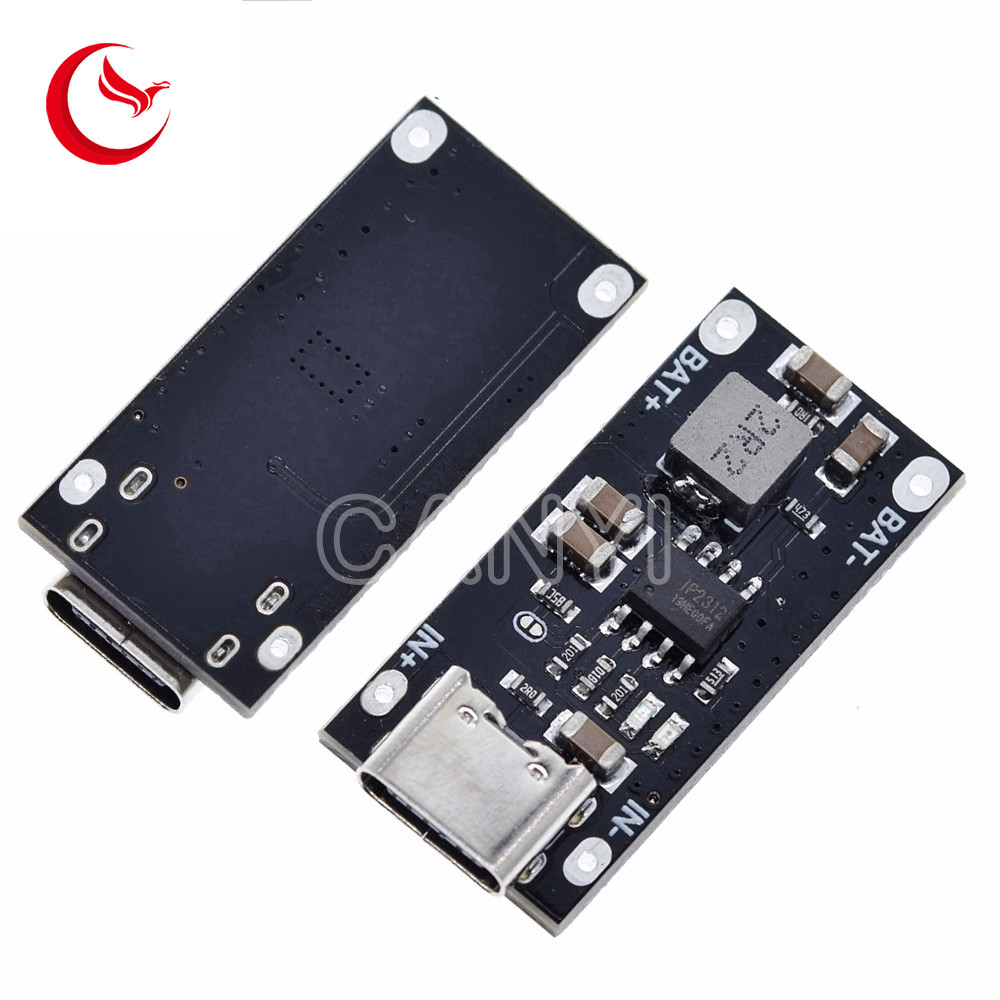

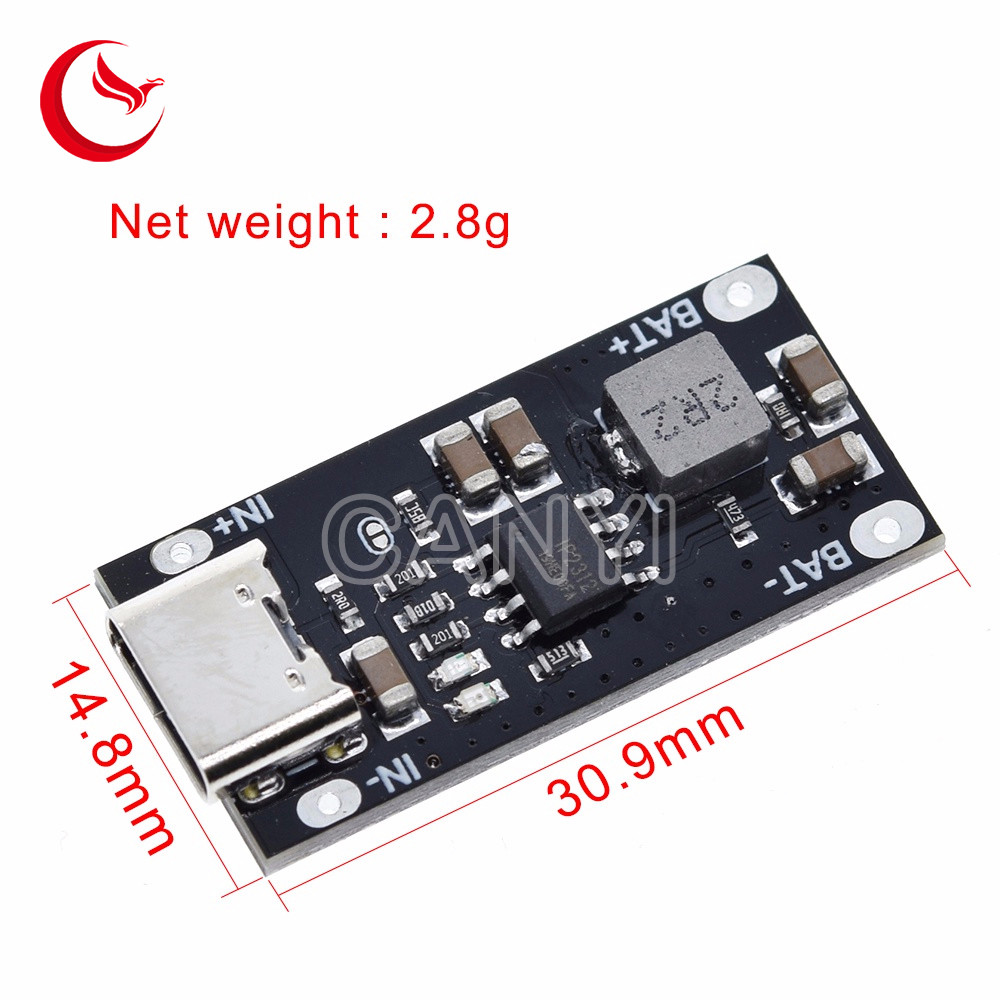

Type C USB Input High Current 3A Polymer Ternary Lithium Battery Quick Fast Charging Board IP2312 CC/CV Mode 5V To 4.2V

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	CANYI
Certification:	RoHS
Model Number:	CY-T0503V1

Minimum Order Quantity:	100PCS
Price:	Negotiated
Packaging Details:	Dimensions per Unit:196.321 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 423324 centimeter• Export Carton Weight:3 Kilograms
Delivery Time:	15-20 days
Payment Terms:	Telegraphic Transfer in Advance (Advance TT, T/T)
Supply Ability:	10,000PCS Per Day

Get Best Price Contact Now

Detail Information

Type:	Lithium Battery Charger Protection Board	Package:	DIP
Shipping By:	DHL\UPS\Fedex\EMS\HK Post	Lead Time:	7-12days
Application:	Battery	OEM:	Can Bu Customized Here
High Light:	Lithium Battery Pcb Board Ssembly , Phosphate Battery Electronic Pcb Board , Phosphate Battery Protection Board

Product Description

PRODUCT Information
Parametel
Name: 3A polymer ternary lithium battery fast charging board
(note not suitable for 3.2V lithium iron phosphate battery)
●Mode:aiav-0503V1
Main control chip: ip2312
Input voltage: 4.5-5.5V
Charging cut-off voltage: 42v/4.35v(two versions of output voltage are optiona Charging current: 3A (the current can be changed by adjusting the tance)
● Indicator light:Yes
Red: work indicator light
Blue: full indicator
Note: This product does not have the function of electricity indicator and battery protection. We have another lithium battery protection board and electricity indicator board for sale
Conversion efficiency: 3A 93%, 2A 94%, 1A 95%(data for reference only)
Description of current regulation 3A by default, remove resistance 2a and replace it with 135k resistance 1A

Ip2312 adopts complete Cc /CV charging mode
When the battery voltage is lower than 3V, enter trickle charging mode to charge the battery with a charging current of 100mA
When the battery voltage is greater than 3v enter the constant current charging mode to charge the battery with the set constant current charging current
When the battery voltage is close to 42V and the charging current less than 300mA. enter the constant voltage charging mode After entering the constant voltage mode, stop charging every 4 minut and check whether the battery voltage is higher than 4. 15V: if it higher than 4.15V, stop charging; otherwise, continue charging, and then check after 4 minute
When the battery is full, if the battery voltage is detected to be lower than 4.1V, it will be turned on to charge the battery again

Welcome to customize the circuit board you need.

Contact:	Tanky
Email:	tanky@zd_schottkysignal.com
Wechat:	+86 13750005407
Skype:	facebook@doublelight.com.cn
Whatsapp:	+86 13750005407
