| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | Canyi |
| Certification: | RoHS |
| Model Number: | 10N60 |
| Minimum Order Quantity: | 1000PCS |
| Price: | US$ 0.1-0.19 per unit (Pieces) |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 3-5 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 1000,000,000PCS Per Day |
| Name: | 10N60 MOSFET | Package Type: | TO-220,TO-220F |
|---|---|---|---|
| Type: | Field-Effect Transistor | VDSS: | 600V |
| Lead Time: | 3-5 Days | ||
| High Light: | mosfet power transistor,high power transistor |
||

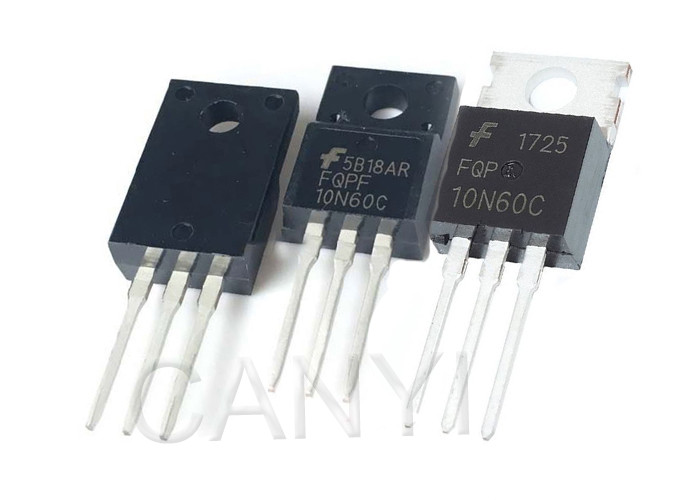

10N60 600V n channel mosfet field effect transistors for switched mode power supplies
Datasheet:CY-10N60F.pdf
Field effect transistor features:
Absolute Maximum Ratings (Tc=25°C)
| Symbol | Parameters | FQPF10N60C | Unit |
| VDSS |
Drain-Source Voltage |
600 | V |
| VGS |
Gate-Source Voltage-Continuous |
±30 | V |
| ID |
Drain Current-Continuous |
9.5* | A |
| IDM |
Drain Current-Single Plused |
38* | A |
| PD |
Power Dissipation |
50 | W |
| Tj |
Max.Operating junction temperature |
-55~150 | ℃ |
Electrical characteristics (Tc=25°C unless otherwise noted)
| Symbol | Parameters | Min | Typ | Max | Units | Conditions | ||
| Static Characteristics | ||||||||
| BVDSS |
Drain-Source Breakdown |
600 | -- | -- | V | VGS =0 V, ID =250 µA | ||
| VGS(th) |
Gate Threshold Voltage |
2.0 | -- | 4.0 | V | VDS=VGS,ID=250μA | ||
| RDS(on) |
Drain-Source On-Resistance |
-- | 0.6 | 0.73 | Ω |
VGS=10V,ID=4.75A |
||
| IGSS |
Gate-Body Leakage Current |
-- | -- | ±100 | nA | VGS=±30V,VDS=0 | ||
| IDSS |
Zero Gate Voltage Drain Current |
-- | -- | 1 | μA | VDS=600V,VGS=0 | ||
| gfs |
Forward Transconductance |
-- | 8.0 | -- | S | VDS=40V,ID=4.75A (Note 4) | ||
| Switching Characteristics | ||||||||
| Td(on) |
Turn-On Delay Time |
-- | 23 | 55 | ns |
VDS=300V,ID=9.5A, |
||
| Tr |
Rise Time |
-- | 69 | 150 | ns | |||
| Td(off) |
Turn-Off Delay Time |
-- | 144 | 300 | ns | |||
| Tf |
Fall Time |
-- | 77 | 165 | ns | |||
| Qg |
Total Gate Charge |
-- | 44 | 57 | nC |
VDS=480V,VGS=10V, |
||
| Qgs |
Gate-Source Charge |
-- | 6.7 | -- | nC | |||
| Qgd |
Gate-Drain Charge |
-- |
18.5 |
-- | nC | |||
| Dynamic Characteristics | ||||||||
| Ciss |
Input Capacitance |
-- | 1570 | 2040 | pF |
VDS=25V,VGS=0, |
||
| Coss |
Output Capacitance |
-- | 166 | 215 | pF | |||
| Crss |
Reverse Transfer Capacitance |
-- | 18 | 24 | pF | |||
| IS |
Continuous Drain-Source Diode |
-- | -- | 9.5 | A | |||
| VSD |
Diode Forward On-Voltage |
-- | -- | 1.4 | V | IS=9.5A,VGS=0V | ||
