| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | CANYI |
| Certification: | RoHS |
| Model Number: | SI2301 |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Dimensions per Unit:19*6.3*21 centimeter • Weight per Unit:100g• Units per Export Carton:10000 • Export Carton Dimensions L/W/H: 42*33*24 centimeter• Export Carton Weight:3 Kilograms |
| Delivery Time: | 3-5 days |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Silicon Transistor | Package Type: | Surface Mount |
|---|---|---|---|
| Package: | SOT-23 | VDS: | -20V |
| TJ, Tstg: | -55 To 150℃ | Sample: | Free |
| Port: | Shenzhen | ||
| High Light: | mosfet power transistor,high power transistor |
||

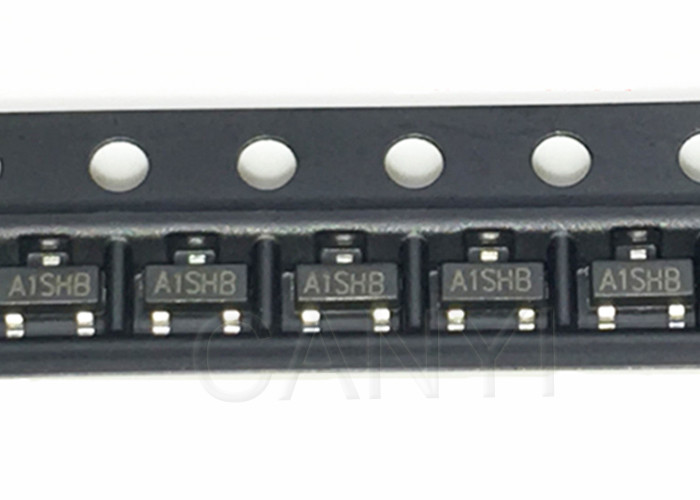

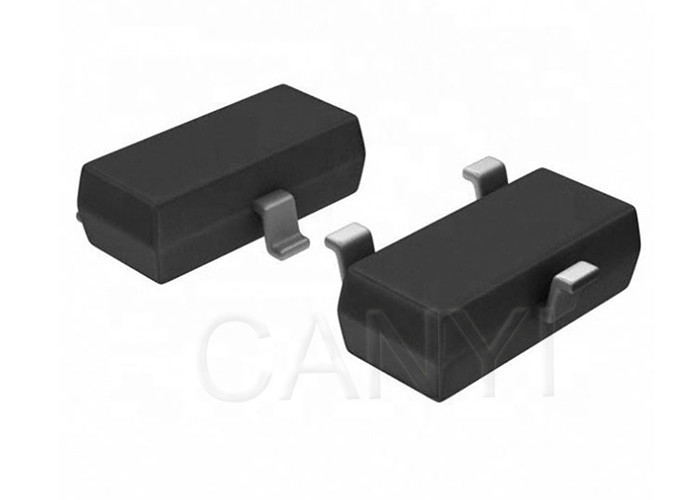

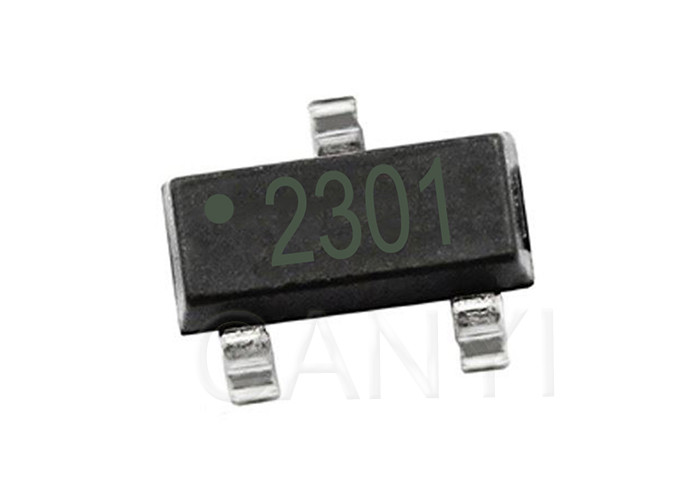

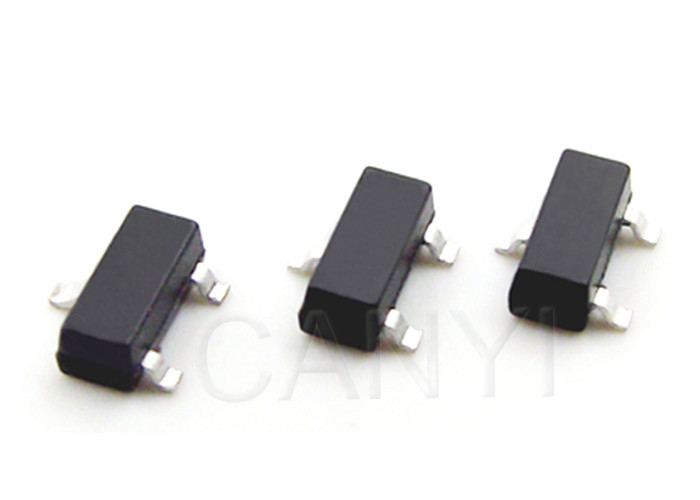

SI2301 MOSFETs FETs SOT-23 MOS power field effect transistor 2.5A 20V A1SHB P-channel Enhancement Mode
Features:
| Parameter | Symbol | Limit | Unit | |
| Drain-Source Voltage | VDS | -20 | V | |
| Gate-Source Voltage | VGS | ±8 | ||
| Continuous Drain Current | ID | -2.2 | A | |
| IDM | -8 | ||
| Maximum Power Dissipation 2) | TA=25℃ | PD | 1.25 | W |
| TA=75℃ | 0.8 | |||
| Operating Junction and Storage Temperature Range | TJ, Tstg | -55 to 150 | ℃ | |
| Junction-to-Ambient Thermal Resistance (PCB mounted) 2) | RthJA | 100 | ||
| Junction-to-Ambient Thermal Resistance (PCB mounted) 3) | 166 | ℃/W | ||
Notes
1)Pulse width limited by maximum junction temperature.
3)Surface Mounted on FR4 Board.
ELECTRICAL CHARACTERISTICS
| Parameter | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
| Static | ||||||
| Drain-Source Breakdown Voltage | BVDSS | VGS = 0V, ID = -250uA | -20 | V | ||
| Drain-Source On-State Resistance1) | RDS(on) | VGS = -4.5V, ID = -2.8A | 105 | 130 | mΩ | |
| VGS = -2.5V, ID = -2.0A | 145 | 190 | ||||
| Gate Threshold Voltage | VGS(th) | VDS = VGS ID = -250uA | -0.45 | v | ||
| Zero Gate Voltage Drain Current | IDSS | VDS = -20V, VGS = -0V | -1 | uA | ||
| VDS = -20V, VGS = -0V TJ=55℃ | -10 | |||||
| Gate Body Leakage | IGSS | VGS=±8v,VDS= 0V | ±100 | nA | ||
| Forward Transconductance 1) | gfs | VDS= -5V,ID= -2.8A | 6.5 | - | S | |
| Dynamic | ||||||
| Total Gate Charge | Qg | VDS = -6V, ID ≌ -2.8A | 5.8 | 10 | nC | |
| Gate-Source Charge | Qgs | 0.85 | ||||
| Gate-Drain Charge | Qgd | 1.7 | ||||
| Turn-On Delay Time | td(on) | VDD = -6V, RL=6Ω ID≌-1.A, VGEN = -4.5V | 13 | 25 | ns | |
| Turn-On Rise Time | tr | 36 | 60 | |||
| Turn-Off Delay Time | td(off) | 42 | 70 | |||
| Turn-Off Fall Time | tf | 34 | 60 | |||
| Input Capacitance | Ciss | | 415 | pF | ||
| Output Capacitance | Coss | 223 | ||||
| Reverse Transfer Capacitance | Crss | 87 | ||||
| Source-Drain Diode | ||||||
| Max. Diode Forward Current | IS | IS = -1.6A, VGS = 0V | -1.6 | A | ||
| Diode Forward Voltage | VSD | -0.8 | -1.2 | V | ||
