| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | JC |
| Certification: | RoHS |
| Model Number: | OSPF4N65 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Name: | OSPF4N65 | Drain-Source Voltage: | 650V |
|---|---|---|---|
| Gate-Source Voltage-Continuous: | ±30V | Drain Current-Continuous（Note 2）: | 4A |
| Drain Current-Single Plused（Note 1）: | 16A | Power Dissipation （Note 2): | 36W |
| High Light: | mosfet power transistor,high power transistor |
||

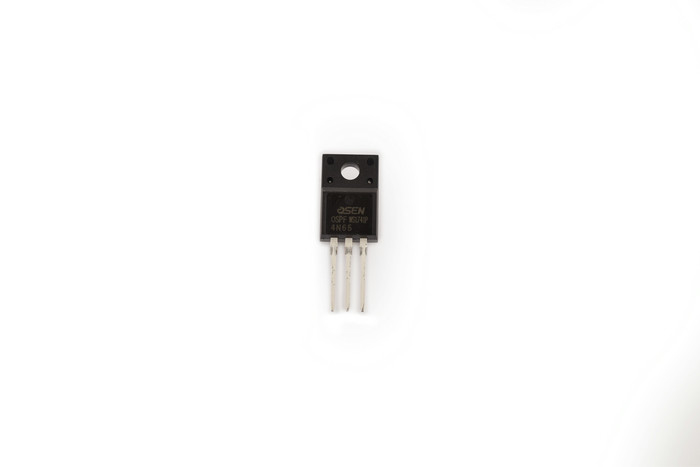

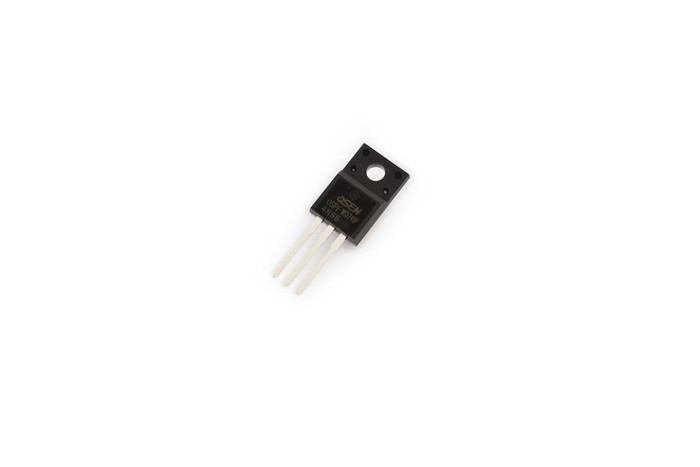

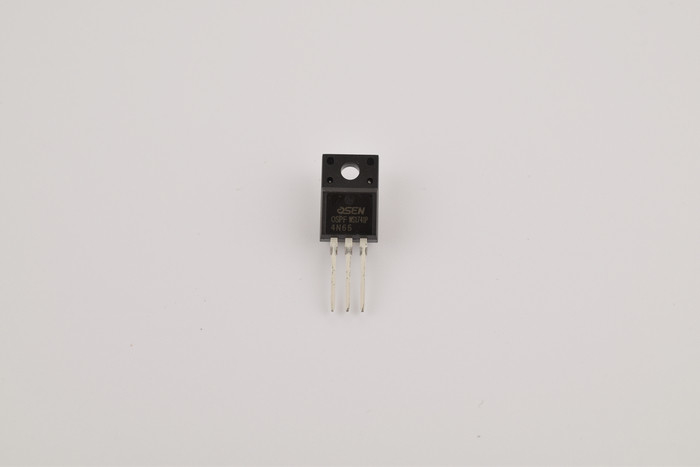

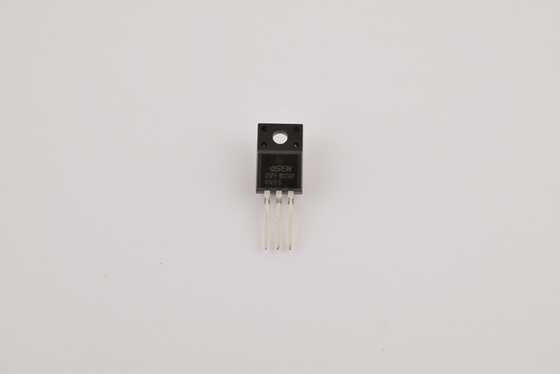

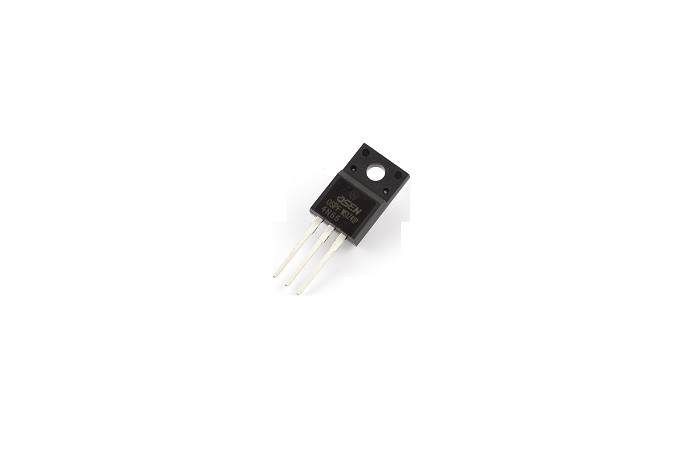

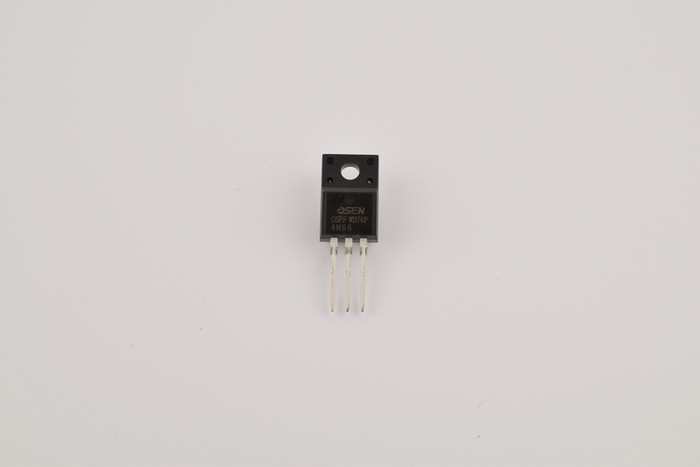

Fast Switching Speed Field Effect Transistor For Power Factor Correction
Field Effect Transistor Features
Field Effect Transistor Applications
Absolute Maximum Ratings (Tc=25°C)
| Symbol | Parameters | Ratings | Unit |
| VDSS |
Drain-Source Voltage |
500 | V |
| VGS |
Gate-Source Voltage-Continuous |
±30 | V |
| ID |
Drain Current-Continuous(Note 2) |
4 | A |
| IDM |
Drain Current-Single Plused(Note 1) |
16 | A |
| PD |
Power Dissipation (Note 2) |
36 | W |
| Tj |
Max.Operating junction temperature |
150 | ℃ |
