| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | OSPS6060CW- |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Low Drop Schottky Diode | Repetitive Peak Reverse Voltage: | 60V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 60V | Maximum DC Blocking Voltage: | 65V |
| Maximum Average Forward Rectified Current Total Device: | 60A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Peak Forward Surge Current: | 400A |
| High Light: | surface mount schottky diode,small signal schottky diode |
||

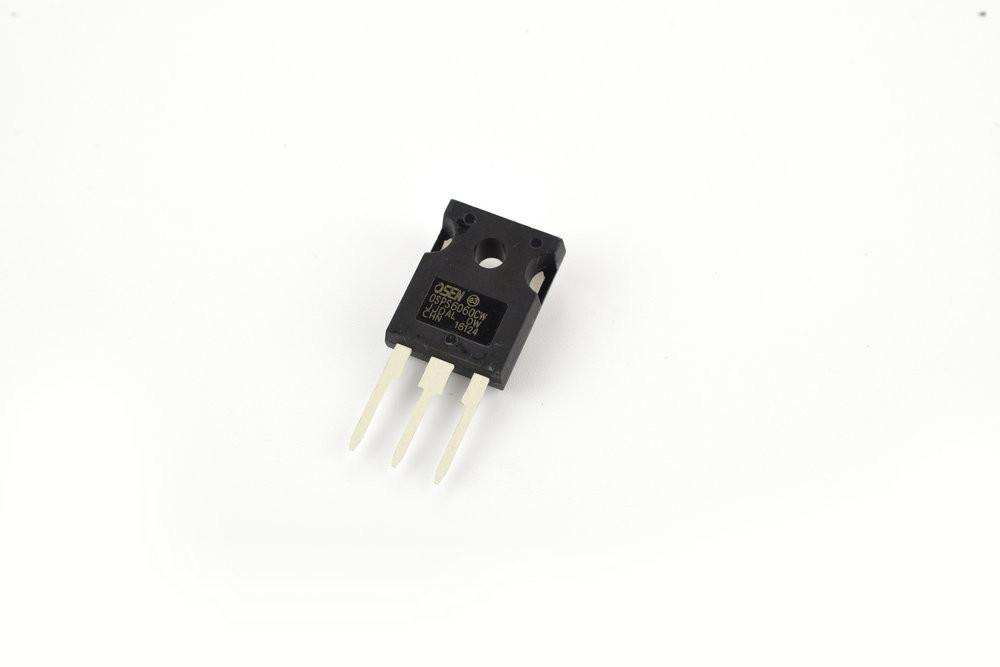

High Durability Low Drop Schottky Diode / Durable Power Schottky Diode
Low Drop Schottky Diode Introduction
Low Drop Schottky Diode are named after their inventor, Dr. Schottky, short for Schottky Barrier Diode (abbreviated SBD). SBD is not fabricated by the principle of forming a PN junction by contacting a P-type semiconductor with an N-type semiconductor, but by a metal-semiconductor junction principle formed by metal-to-semiconductor contact. Therefore, SBD is also called a metal-semiconductor (contact) diode or a surface barrier diode, which is a hot carrier diode.
Low Drop Schottky Diode Features:
High switching frequency
Low forward voltage drop
High efficiency and low power loss
High volume of current and good capability of surge current
Low Drop Schottky Diode Applications
High frequency rectifier of switching mode power supplies
Freewheeling diodes
Polarity protection application
DC-DC converters
Absolute Maximum Ratings (Tc=25°C)
| Type: | Low Drop Schottky Diode | Repetitive Peak Reverse Voltage: | 60V |
|---|---|---|---|
| Working Peak Reverse Voltage: | 60V | Maximum DC Blocking Voltage: | 65V |
| Maximum Average Forward Rectified Current Total Device: | 60A | Operating Junction Temperature Range: | -65~150 ℃ |
| Storage Temperature Rang: | -65~175 ℃ | Peak Forward Surge Current: | 400A |
