| Type: | Zener Diode | Package Type: | Through Hole |
|---|---|---|---|
| Max. Forward Voltage: | Refer To Details | Case: | DO-15 |
| Material: | Silicon | Operating Temperature Range: | -55 ℃ ~150 ℃ |
| High Light: | original zener diode,high power zener diode |
||

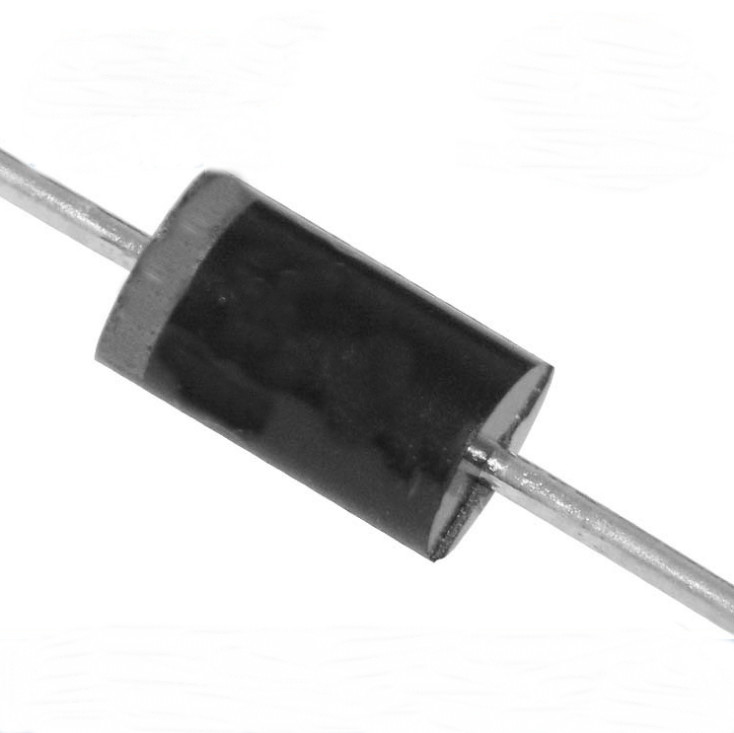

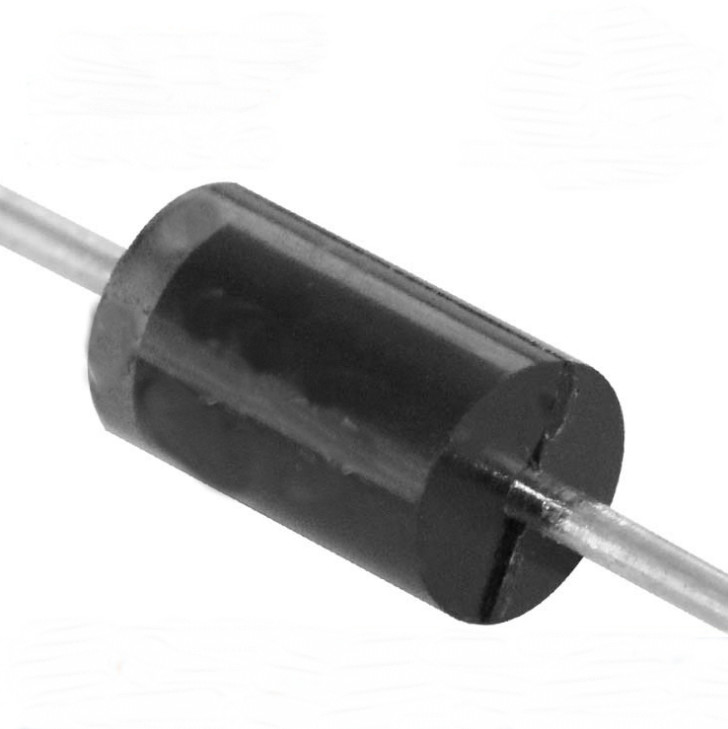

China Supply High Quality New And Original 1N5913 Thru 1N5956 DO-15 Zener Diodes
Features
Zener Voltage Range − 3.3 V to 200 V
ESD Rating of Class 3 (>16 KV) per Human Body Model
Surge Rating of 98 W @ 1 ms
Maximum Limits Guaranteed on up to Six Electrical Parameters
Package No Larger than the Conventional 1 W Package
Pb−Free Packages are Available
Mechanical Characteristics
CASE: Void free, transfer−molded, thermosetting plastic
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES:
260°C, 1/16″ from the case for 10 seconds POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any
MAXIMUM RATINGS
|
Rating |
Symbol |
Value |
Unit |
|
|
Max. Steady State Power Dissipation |
PD |
3 |
W |
|
|
@ TL = 75°C, Lead Length = 3/8″ |
|
|
mW/°C |
|
|
Derate above 75°C |
|
24 |
|
|
|
|
|
|
|
|
|
Steady State Power Dissipation |
PD |
1 |
W |
|
|
@ TA = 50°C |
|
|
mW/°C |
|
|
Derate above 50°C |
|
6.67 |
|
|
|
|
|
|
|
|
|
Operating and Storage |
TJ, Tstg |
−65 to |
°C |
|
|
Temperature Range |
|
+200 |
|
|
|
|
|
|
|
|
ORDERING INFORMATION
|
Device |
Package |
Shipping |
|
1N59xxB, G |
Axial Lead |
2000 Units/Box |
|
|
(Pb−Free) |
|
|
|
|
|
|
1N59xxBRL, G |
Axial Lead |
6000/Tape & Reel |
|
|
(Pb−Free) |
|
|
|
|
|
