| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | DEC |
| Certification: | RoHS |
| Model Number: | RS1M |
| Minimum Order Quantity: | 1000PCS |
| Price: | Negotiated |
| Packaging Details: | Boxed |
| Delivery Time: | 1 - 2 Weeks |
| Payment Terms: | Telegraphic Transfer in Advance (Advance TT, T/T) |
| Supply Ability: | 15,000,000PCS Per Day |
| Type: | Rectifier Diode | Package Type: | Surface Mount |
|---|---|---|---|
| Max. Forward Voltage: | 1.3V | Max. Reverse Voltage: | 1000V |
| Max. Forward Current: | 1.0A | Max. Reverse Current: | 5uA |
| Key Word: | RS1M | VRRM: | 1000 Volts |
| VRMS: | 700V | VDC: | 1000V |
| High Light: | fast recovery rectifier diode,fast recovery diode module |
||

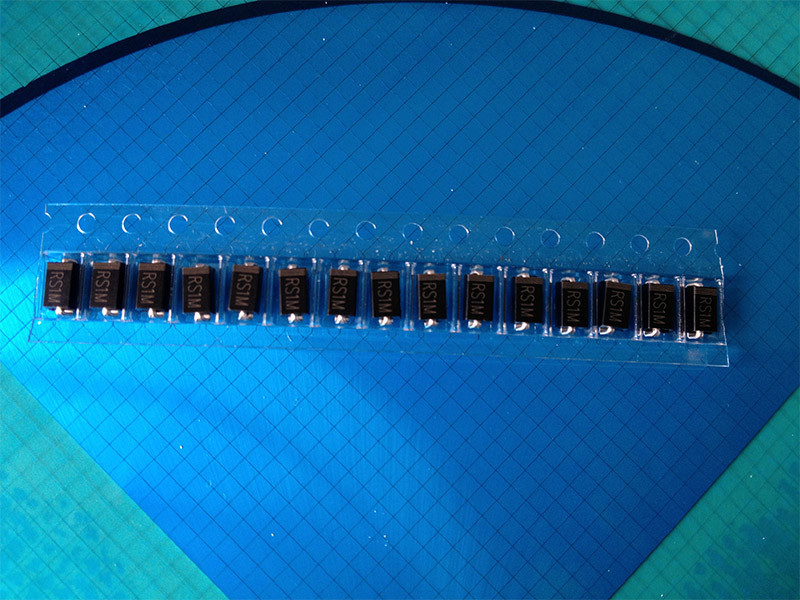

RS1M Fast recovery rectifier diode for Surface Mount Applications
FEATURES
· Glass passivated junction
· For Surface Mount Applications, Easy to pick and place
· Plastic package has Underwriters Laboratory Flammability Classification 94V-0
· High temperature soldering guaranteed:260℃/10 seconds at terminals
· Component in accordance to RoHS 2011/65/EU
RATINGS AND CHARACTERISTIC CURVES RS1A THRU RS1M
MECHANICAL DATA
· Case: JEDEC DO-214AC molded plastic over glass passivated chip
· Terminals: Solder plated
· Polarity: Color band denotes cathode end
· Weight: 0.002 ounce, 0.064 g
